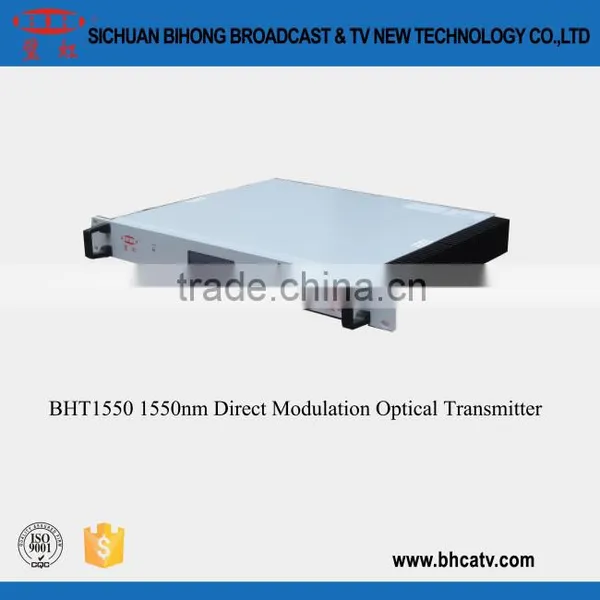

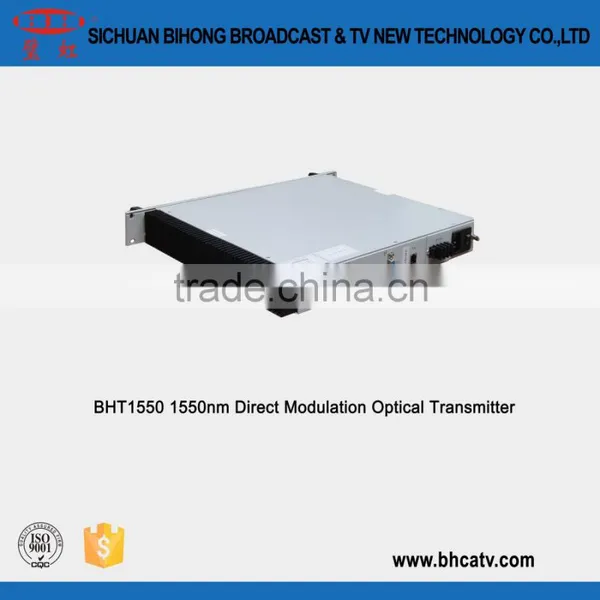

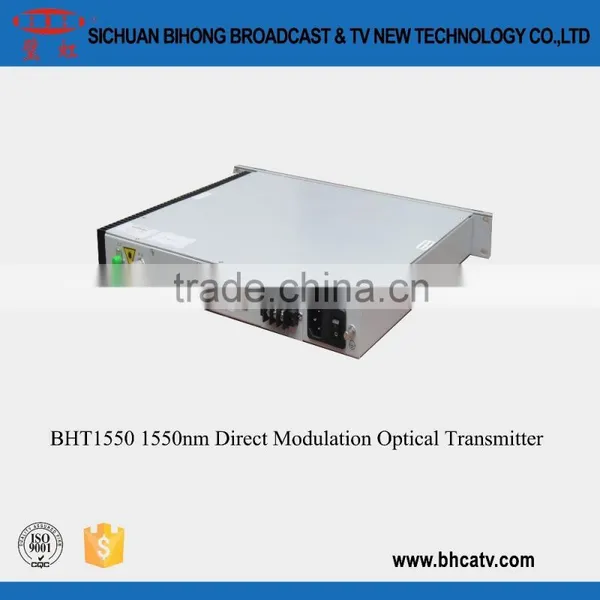

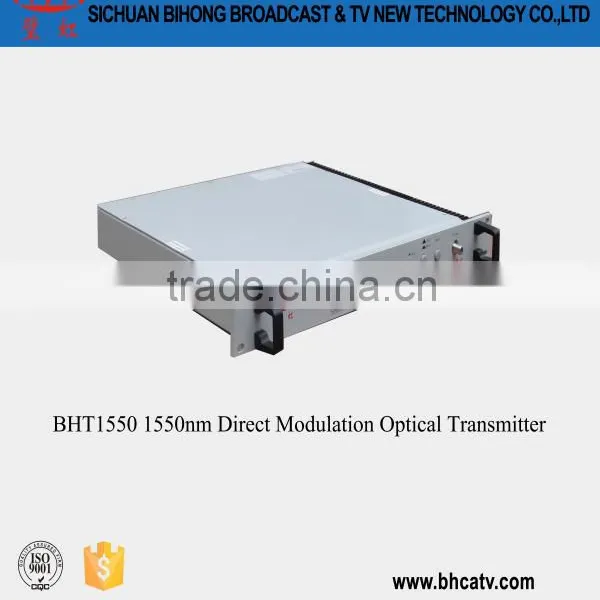

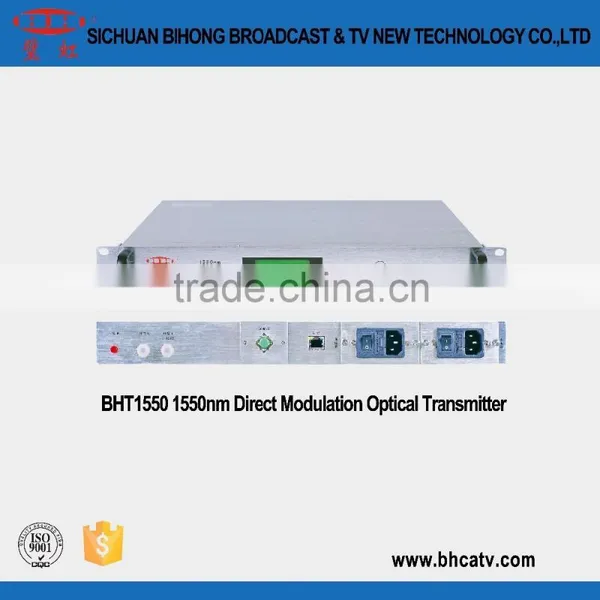

1550nm Direct Modulation Optical Transmitter
The main features
1, Adopts imported Ortel, JDSU highly-linear DFB laser modules;
2, The superior predistortion circuit design can still have perfect CTB, CSO performance even at high standard CNR values;
4,Adopts high-performance micro-processors with laser monitoring, digital display, failure alarm, network management, etc.;
5, Provides RJ45 standard network management interface
6, Luxury 19” 1U standard case and quality efficient plug-in hot-backup dual switch power supplies can work with 110–264V commercial supply.
| Main Technical Indicators | |||
| Items | BHT1550 | ||
| Optical power (mW) | 06 | 08 | 10 |
| Optical power (dBm) | 7.8 | 9.0 | 10.0 |
| Optical wavelength (nm) | 1550±20 | ||
| Optical fiber connector | FC/APC or SC/APC | ||
| Working bandwidth (MHz) | 45~860 | ||
| Channel number (road) | 79 | ||
| CNR (dB) | 51 | ||
| CTB(dBc) | ≤-65 | ||
| CSO dBc) | ≤-60 | ||
| The RF input level (dB mu V) | 78±5 | ||
| In-band roughness (dB) | ≤0.75 | ||
| AGC control area (dB) | ±4 | ||
| Power consumption (W) | ≤30 | ||
| Power supply voltage (VAC) | 220V(110~264) | ||
| Working temperature (℃) | -10~50 | ||
| Installation dimensions | 1U standard case | ||
Carton, or according to your requirement.
There are several methods of transport: by sea, by air or express.
1, If product has any quality problem caused by our reason would be replaced for free.
2, 24 hours telephone service for after-sales technical support.
Hotline: 0086 18602355035
