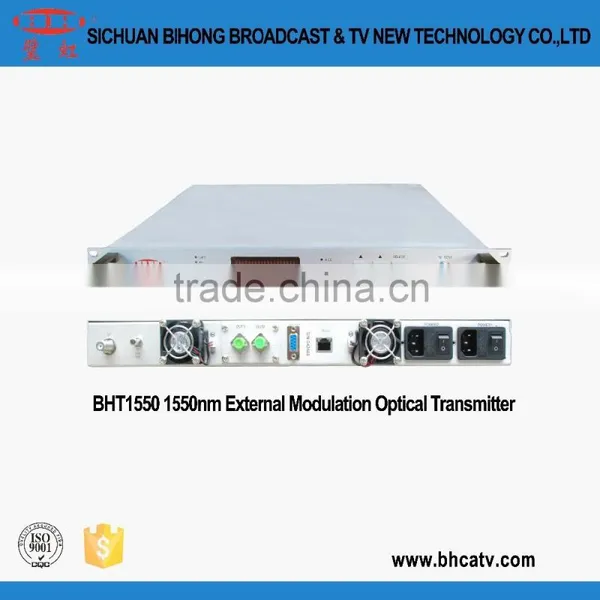

1550nm External Modulation Optical Transmitter
Main Features
- Adopts imported Ortel, JDSU highly-linear DFB laser modules, fully ensuring superior link performance;
- The superior predistortion circuit design can still have perfect CTB, CSO performance even at high standard CNR values;
- Reliable optical power output stabilizes circuits and laser cooling and heating stably control circuits, which ensure the best performance of the machine and the long-life stable operation of the laser;
- Adopt high-performance micro-processors with functions like laser monitoring, digital display, failure alarm, network management, etc.;
- Provide RJ45 standard network management interface, conforming to GB/T20030-2005 hybrid fiber coaxial equipment management system specifications;
- Luxury 19” 1U standard case and efficient plug-in hot-backup dual switch power supplies can work with 110–264V commercial supply.
| Technical Parameter of Exteral Modulation Optical Transmitter | |||
| Items | BHT1550 | ||
| Optical power (mW) | 06 | 08 | 10 |
| Optical power (dBm) | 7.8 | 9.0 | 10.0 |
| Optical wavelength (nm) | 1550±20 | ||
| Optical fiber connector | FC/APC or SC/APC | ||
| Working bandwidth (MHz) | 45~860 | ||
| Channel number (road) | 79 | ||
| CNR (dB) | 51 | ||
| CTB(dBc) | ≤-65 | ||
| CSO dBc) | ≤-60 | ||
| The RF input level (dB mu V) | 78±5 | ||
| In-band roughness (dB) | ≤0.75 | ||
| AGC control area (dB) | ±4 | ||
| Power consumption (W) | ≤30 | ||
| Power supply voltage (VAC) | 220V(110~264) | ||
| Working temperature (℃) | -10~50 | ||
| Installation dimensions | 1U standard case | ||
BH company is committed to provide the world-class services and support for our customers. We provided a wide range of professional and support services to operators and customers as follows:
- Basic telephone/email support.
- Professional after-sales team to solve your issues faced.
- Hardware and software support and upgrade.
- 24 hours response (Hotline: 0086 18602355035).
- Onsite support.
- Remote and onsite training.
