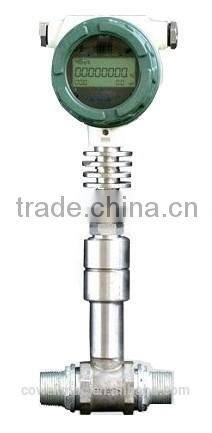

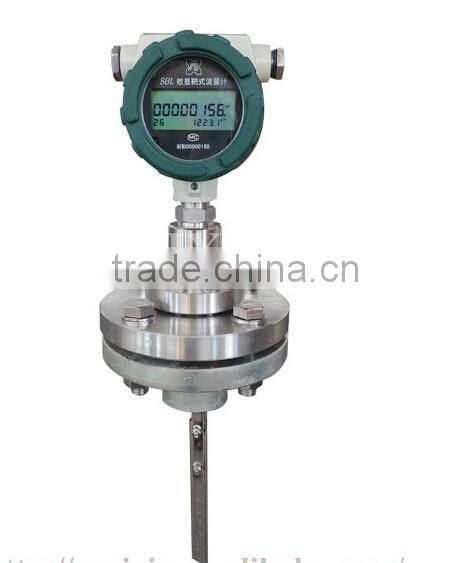

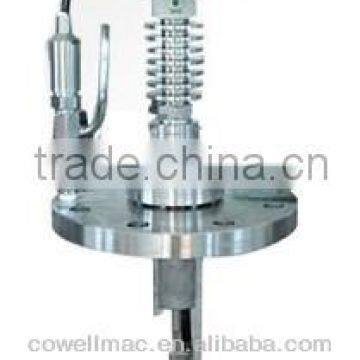

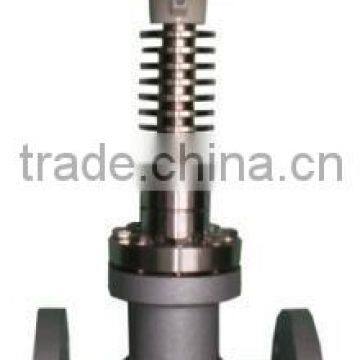

Target Mode Flow Meter Metering Gas Liquid Steam
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Cowell/oem
Model Number:
target mode flow meter
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai for water oil Target mode flow meter metering gas liquid steam
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wall-mounted Water Oil Ultrasonic Flow MeterNegotiableMOQ: 1 Set -
Sensor Liquid Turbine Flow MeterNegotiableMOQ: 1 Piece
-
Clamp Type LUGB Series Vortex Flow Meter for Gas,liquid,steamNegotiableMOQ: 1 Set
-
Low Cost Ultrasonic Flow Meter -heat Module Digital Signal ProcessingNegotiableMOQ: 1 Set
-
LC Oil Mechanical Oval Gear MeterNegotiableMOQ: 1 Unit
Place of Origin
Shanghai, China
Brand Name
Cowell/oem
Model Number
target mode flow meter
water oil Target mode flow meter metering gas liquid steam
Characteristics
Target Mode Flow Meter is pressure influence target mode flow meters which utilize the modern sensor and computer technology. It is with characteristics of anti-interfere, anti-impurity, portability and Reliability. They have been widely used in many fields of petroleum, chemical industry, energy, foodstuff, environment protection, water conservancy and so on.
flange type
thread type insertion type |
Medium | Liquid,Gas and Steam | ||||||
| Caliber | Pipe type 15~300mm | Clamp type 15~600mm | Insertion type 100~2000mm | ||||
| Pressure | 0.6~10MPa | 0.6~42MPa | 0.6~42MPa | ||||
| Medium Temperature | -196°C~+450°C ( Confirming the temperature range before purchase) | ||||||
| Precision | ±0.2% | ±0.5% | ±1.0% | ±1.5% | ±2.5% | ||
| Range | 1:3 | 1:5 | 1:10 | 1:10 | 1:10(Steam) | ||
| Compensation | Temperature compensation; Pressure compensation | ||||||
| Repeatability | 0.1%~0.08% | ||||||
| Power Supply | 3.6V lithium battery, 24V DC | ||||||
| Output | LCD display, and 4~20mA, 0~10V, impulse or RS485 (Optional) | ||||||
Material of measure tube | Carbon Steel;304;316L; Being able to provide other according to user requests | ||||||
| Explosion- Prevent Symbol | ExiallCT4, ExiallBT4 | ||||||
| ||
| Warranty: the product is guaranteed for 12 months from the date of delivery under normal condition. | Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality; | We provide paid repair services for products damages not arising from manufacturing quality issues or not within the scope of warranty. |
