LC Oil mechanical Oval Gear Meter

Name: LC Oil mechanical Oval Gear Meter
Brand: cowell
Price: Negotiable

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Supply Ability 3000 Unit / Units per Month
Port shanghai for Oil Oval Gear Meter with pointer
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Shanghai, China

Brand Name:

cowell

Model Number:

LC-50

Packaging Details

Carton for Oil Oval Gear Meter with pointer

Product Description

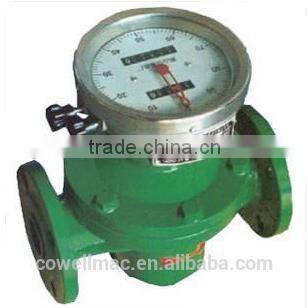

Oil Oval Gear Meter with pointer LC-50 mechanical oval gear meter

LC-50 Oval Gear Meter

Characteristics

LC Series light oval gear flow meter, with innovative design and rational structure can be widely used in petroleum, chemical, pharmaceutical and public health sectors etc..Cast Iron, Cast Steel, Stainless Steel material available.

High accuracy, wide range of the flow, excellent repeatability;

piral rotor rotating evenly, small vibration and longevity;

Suitable for high viscosity of the liquid measurement ;

Simple structure, small size and light weight;

Easy to install;

Reset to "0".

Technical Specification
Mode	OGM-I-15	OGM-I-20	OGM-I-25		OGM-I-40	OGM-I-50	OGM-I-80	OGM-I-100
DN (mm)	15	20	25		40	50	80	100
Min. Flow Rate m³/h	0.3	0.3	0.6		1.6	5	6	10
Max. Flow Rate m³/h	1.6	3	6		16	25	50	80
Accuracy %	+-0.3~+-0.5
Working Temperature°C	-10~80
Pressure Mpa	1.0-6.3
Liquid Viscosity MPa.s	2~75
Min. Scale Value L	0.1			1			10
Register Amount m³	999.99			9999.9			99999

Packaging Data
Mode	OGM-15	OGM-20	OGM-25	OGM-40	OGM-50	OGM-80	OGM-100
Packaging	1pc/Wooden Case
Net Weight	7.5kgs	8.5kgs	15.6kgs	18.5kgs	30kgs	44.5kgs	72kgs
Gross Weight	9.5kgs	10.5kgs	18.1kgs	21.5kgs	33kgs	48kgs	77kgs
Size cm	18×12×23	20×12×24	24.5×18×25	25×18.5×28	34×23×33.5	56×26.6×34	42×31×40.5

Widely used in Petroleum, Chemical, Medicine, Tranportation, food industry etc..


Warranty: the product is guaranteed for 12 months from the date of delivery under normal condition.	Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;	We provide paid repair services for products damages not arising from manufacturing quality issues or not within the scope of warranty.
