low cost ultrasonic flow meter -heat module digital signal processing

Name: low cost ultrasonic flow meter -heat module digital signal processing
Brand: cowell
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 2000 Set / Sets per Month
Port shanghai for low cost ultrasonic flow meter -heat module digital signal processing
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Shanghai, China

Brand Name:

cowell

Model Number:

TDS-100M1/TDS-100M2

Packaging Details

carton for low cost ultrasonic flow meter -heat module digital signal processing

Product Description

low cost ultrasonic flow meter -heat module digital signal processing

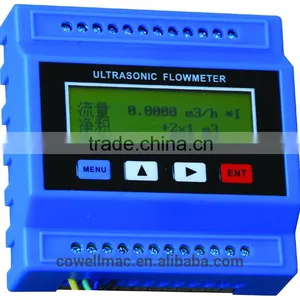

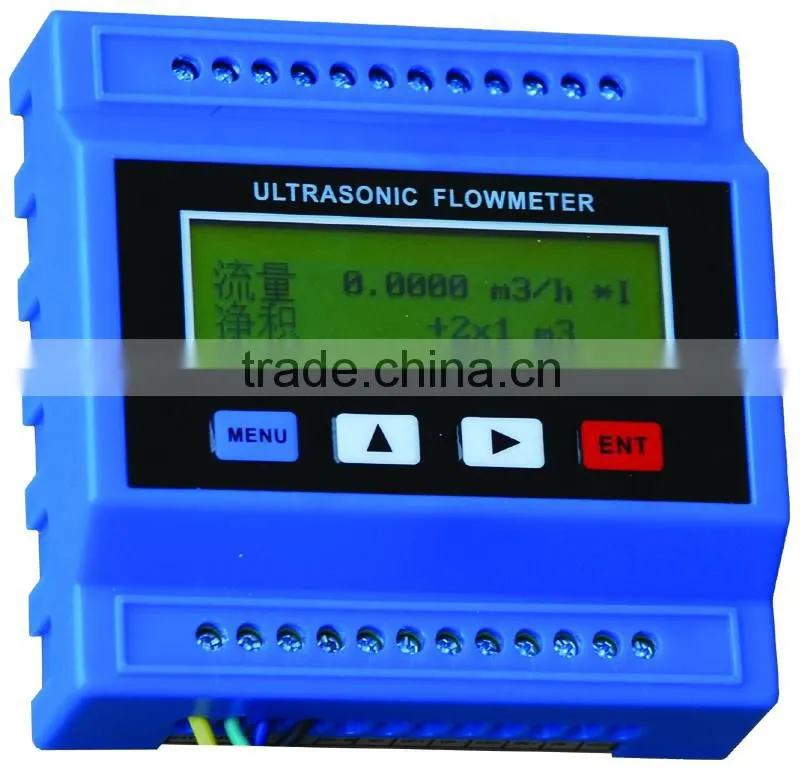

TDS-100M1 Ultrasonic flow meter-heat module

TDS-100M2 Ultrasonic flow meter-heat module

Description:

TDS-100M Series Ultrasonic Flow meter-Heat Module is low cost ultrasonic flow meter, which is the latest innovation. It employs cutting-edge technology on ultrasonic transit-time measurement, digital signal processing and surface mounting electronics. It provides abundant capabilities for accurate liquid flow measurement from outside of a pipe. The proprietary signal quality tracking and self-adapting techniques allow the system to optimally adapt to different pipe materials automatically.

• Accuracy: ±1%; Better than ±1% for velocity above 0.6ft/s

•Repeatability: 0.2%

•Response Time:0.5s

• Velocity: 0-32m/s

•Pipe Size:25 ~ 6,000mm

•Display & Records: LCD Display Instantaneous flow,

accumulative flow, velocity, Signal State, Time etc.

Keyboard for optional.

•Input: 2 Route 4-20mA analog input with accuracy 0.1%;

Input pressure, liquid level, temperature signal etc.

2 Route, three lines of PT100 Platinum resistance.

•Communication Interface: RS232, RS485, OCT output &

4~20mA, Relay Output etc.

•Power Supply: Isolation 8~36 VDC

Optional transducers

1. Clamp-on transducer

S 1 Sensor M1 Sensor L1 Sensor S1H High Temperature M1H High Temperature

DN15-DN100mm DN50-DN700mm DN300-6000mm Sensor DN15-100mm Sensor DN 50-700mm

2. Insertion & Flanged transducers

B Insertion Sensor B Insertion Long Sensor Sanitation Flanged Sensor ∏ Flanged Sensor Standard Flanged Sensor Above DN 80mm Above DN 80mm DN 25-80mm DN 15-40mm DN 50-1000mm

Shanghai Cowell Machinery Co., Ltd. (Cowell) is a family group company. We are a professional manufacturer of Fueling equipments since 1980’s.

Registered in Shanghai, and managed by a professional team, Cowell delivers quality, efficiency, and expertise to our clients worldwide, being dedicated to providing the below full line products:
1) Fuel and LPG dispenser & its components – fuel dispensers, flow meters, fuel pumps, nozzles, separators, manometers, solenoid valves, differential valves, hoses and other related products

2) Mechanical PD Flow Meters & Pumps - positive displacement flow meters and pumps, loading and unloading meters & pumps, Electric Transfer Pump Units, etc.

3) Additional, tank truck parts & digital flow meters.

Cowell factory has Numberical Control Machine Center, Numberical Lathe Machine, Meter Testing Tables, Pump Testing Tables etc. advanced inspecting & testing machines, 3D measurement system.

We have more than 200 employee and 10 senior technical engineers.

Our products are durable, reliable and economical and have obtained ISO9001 certificate, certain products have gained the ATEX CE certificate & UL certificate. The products are exported to USA, Europe, Middle East, South East Asia and Africa etc.

“Cooperation for mutual benefit based on sincerity and credit” is our philosophy. It is our everlasting pursuit to provide our customers with high quality products at competitive prices and efficient customer services.

Warranty: the product is guaranteed for 12 months from the date of delivery under normal condition.

Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;

We provide paid repair services for products damages not arising from manufacturing quality issues or not within the scope of warranty.
