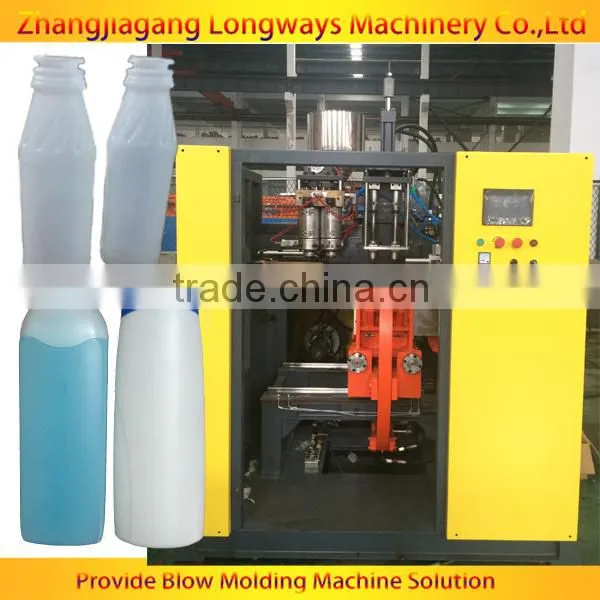

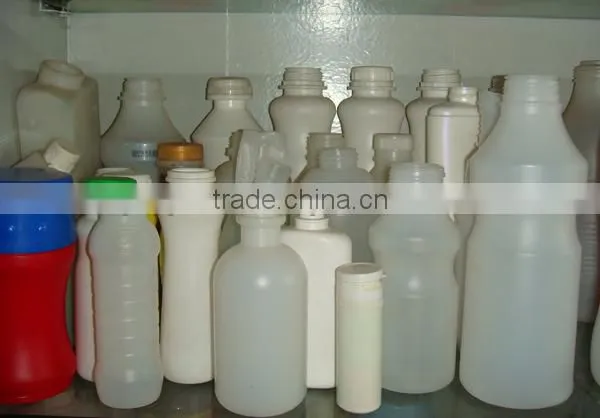

This is Zhangjiagang 1L plastic bottle extrusion blow moulding machine , A wide variety of materials can be used for the machine, which are suitable for producing 100ml to 3L PE shampoo bottle. The clamping system is a high-precision double-station linear guide, extrusion system using a hard gear reducer and inverter. The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve.The control system consists of PLC and Human-machine interface imported from Japan, and automatic temperature control module and imported electrical parts.
Zhangjiagang 1L plastic bottle extrusion blow moulding machine production process
plastic gallon blow molding machine specification
Unit |
Item |
Specification |
Description |
|
Extruding system
|
Screw diameter |
Φ55mm |
Mixing model |
Max. Product Volume |
3L |
Double station and single die-head |
|
Screw L/D |
24:1 |
|
|
Material of screw and barrel |
|
38CrMoALA |
|
Plasticizing capacity |
45KG/Hr |
Based on HDPE 5502 |
|
Extruding method |
|
Inverter motor, hardness tooth surface gear box |
|
Driving power |
15KW |
|
|
Screw revolution |
10—90rpm |
|
|
Heating zones |
3 |
Temperature module from Mitsubishi PLC |
|
Heating power |
10KW |
Solid state (SSR) and plug connection for all heaters |
|
Blowers |
3 |
|
|
Cooling function |
Yes |
Cooling water for feeding zone and gear box |

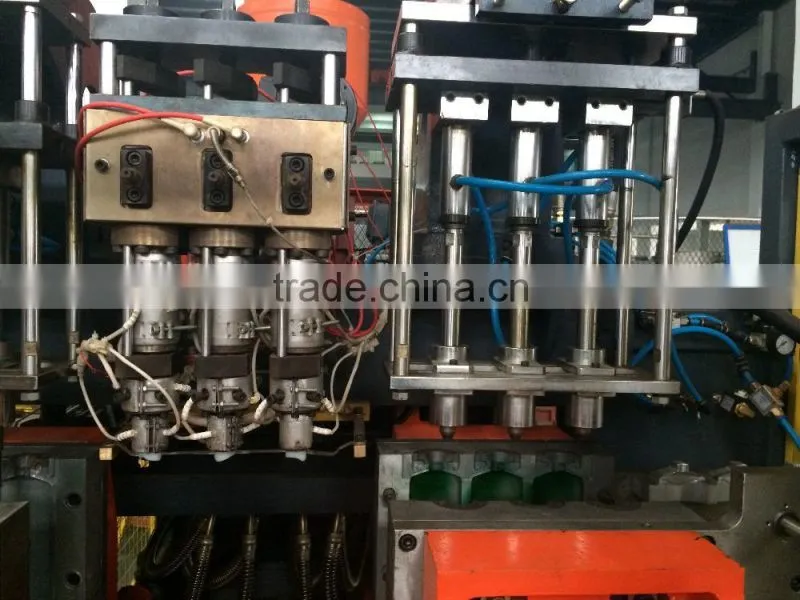

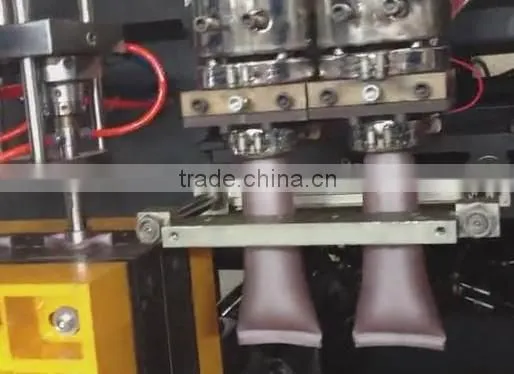

plastic gallon blow molding machine extruder- die head
plastic gallon blow molding machine plastic plasticing part

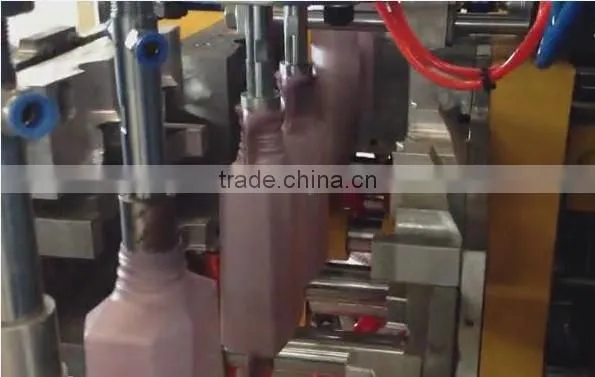

plastic gallon blow molding machine product making step
Zhangjiagang plastic blow molding machine, component brand
Zhangjiagang plastic blow molding machine, loading
Any inuqiry about Zhangjiagang 1L plastic bottle extrusion blow moulding machine , blow moulding machine, please contact us! thanks!
