This is plastic bottle manufacturing machine , A wide variety of materials can be used for the machine, which are suitable for producing 100ml to 5L PE bottle. The clamping system is a high-precision double-station linear guide, extrusion system using a hard gear reducer and inverter. The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve.The control system consists of PLC and Human-machine interface imported from Japan, and automatic temperature control module and imported electrical parts.
Plastic 4L PETG bottle making machine process
Plastic PETG container blowing machine specification
Unit |
Item |
Specification |
Description |
|
Extruding system
|
Screw diameter |
Φ75mm |
Mixing model |
Max. Product Volume |
1L |
Double station and tetra die-head |
|
Screw L/D |
24:1 |
|
|
Material of screw and barrel |
|
38CrMoALA |
|
Plasticizing capacity |
90KG/Hr |
Based on HDPE 5502 |
|
Extruding method |
|
Inverter motor, hardness tooth surface gear box |
|
Driving power |
30KW |
|
|
Screw revolution |
10—90rpm |
|
|
Heating zones |
3 |
Temperature module from Mitsubishi PLC |
|
Heating power |
10KW |
Solid state (SSR) and plug connection for all heaters |
|
Blowers |
3 |
|
|
Cooling function |
Yes |
Cooling water for feeding zone and gear box |
Plastic PETG container blowing machine extruder- die head

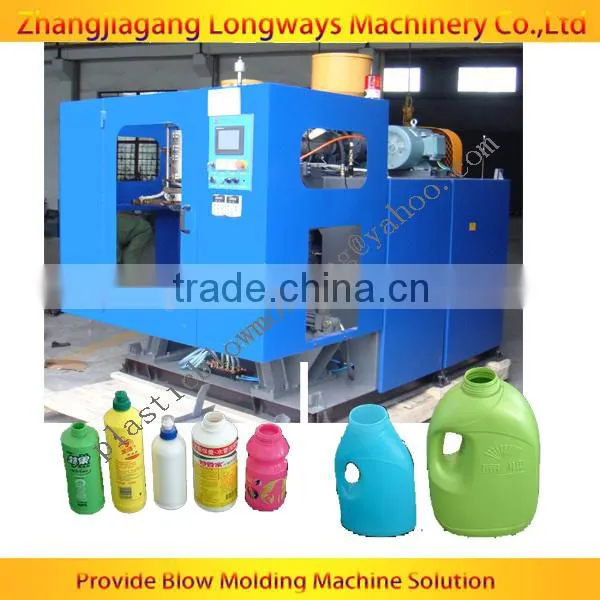

Plastic PETG container blowing machine detailed photos
PETG container blowing machine component brand
Any inuqiry about blow molding machine, blow moulding machine, please contact us! thanks!
