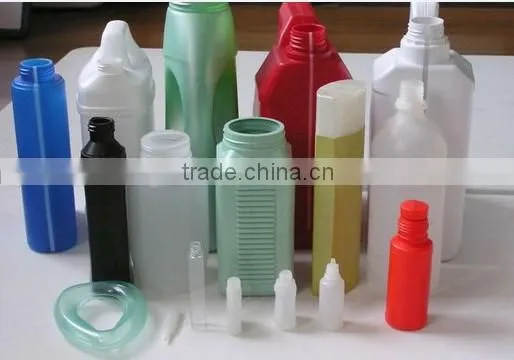

This is small manual blow moulding machine , A wide variety of materials can be used for the machine, which are suitable for producing 100ml to 5L PE bottle. The clamping system is a high-precision double-station linear guide, extrusion system using a hard gear reducer and inverter. The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve.The control system consists of PLC and Human-machine interface imported from Japan, and automatic temperature control module and imported electrical parts.

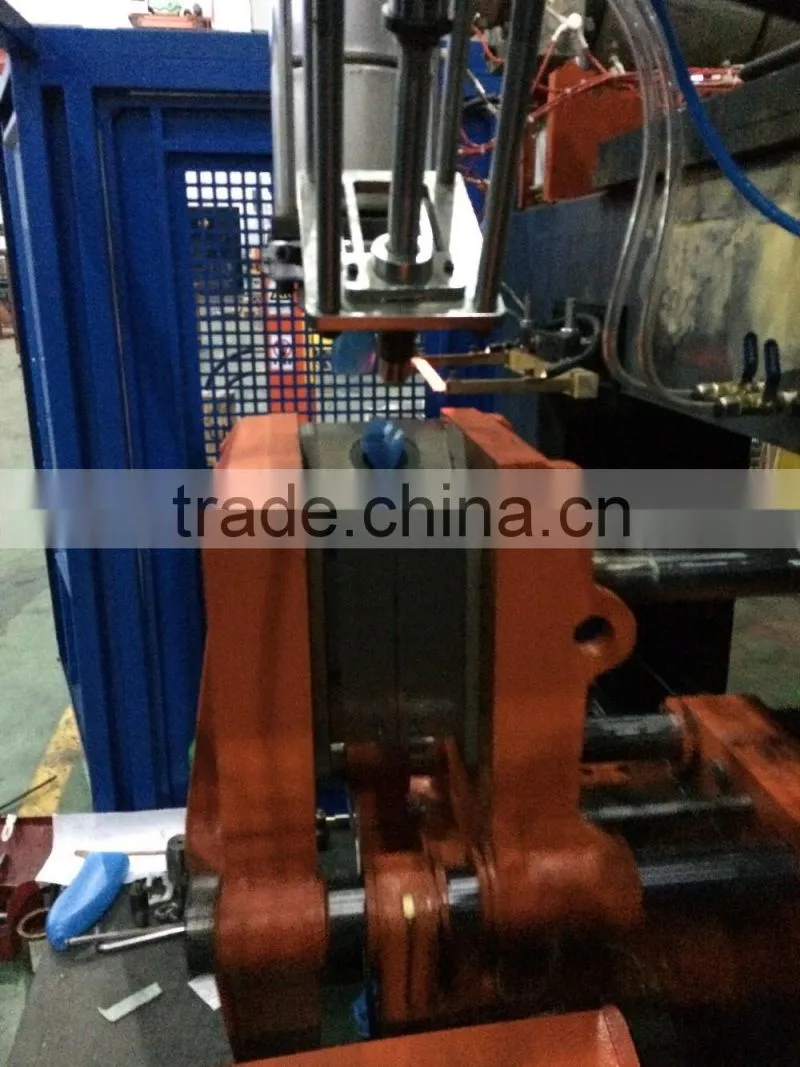

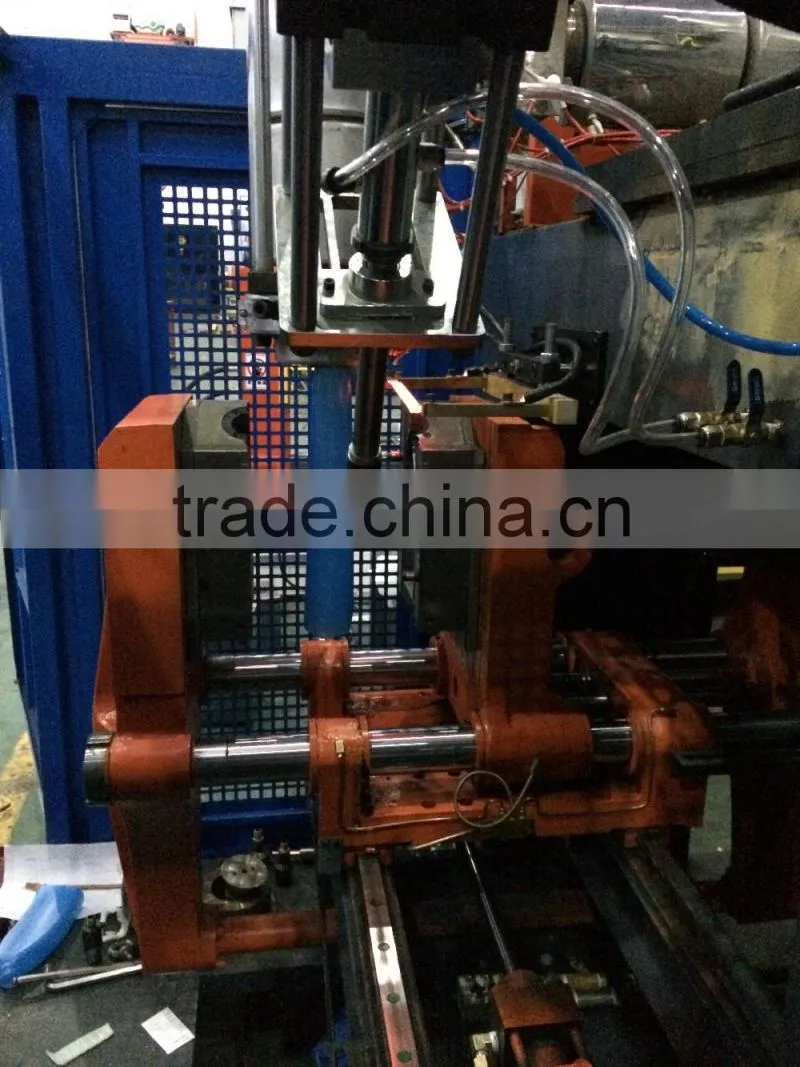

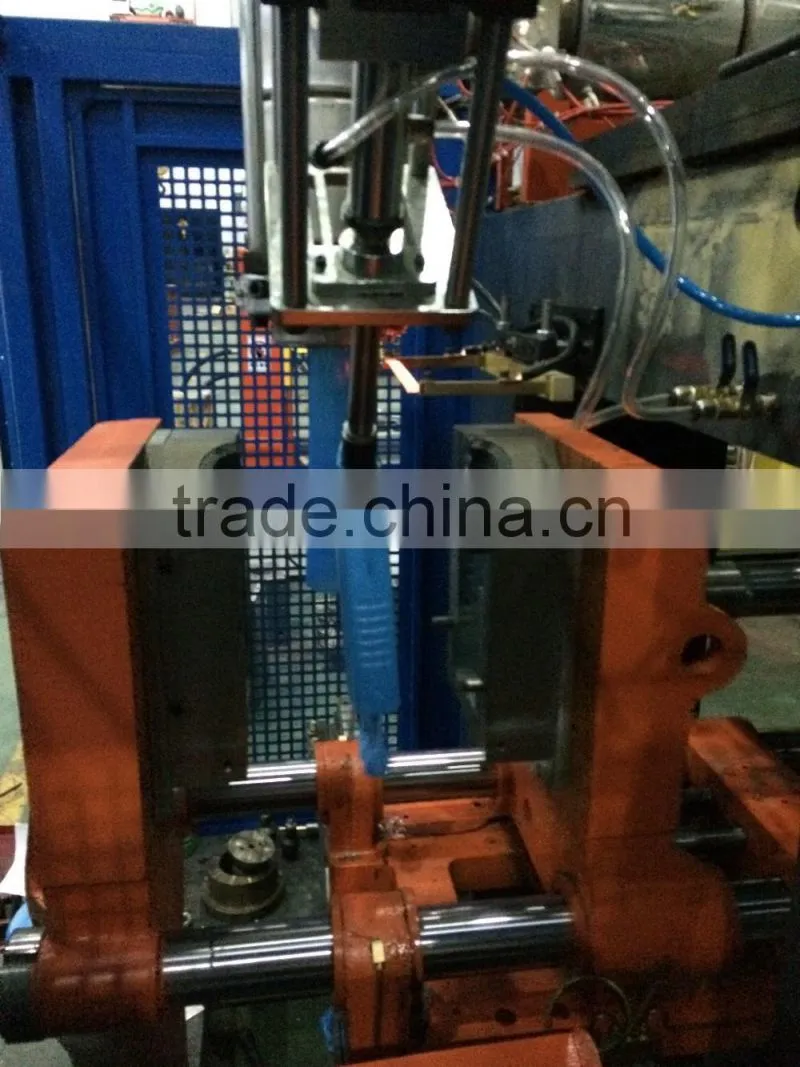

small extrusion blow moulding machine production process
plastic small extrusion blow moulding machine specification
Unit |
Item |
Specification |
Description |
|
Extruding system
|
Screw diameter |
Φ75mm |
Mixing model |
Max. Product Volume |
1L |
Double station and tetra die-head |
|
Screw L/D |
24:1 |
|
|
Material of screw and barrel |
|
38CrMoALA |
|
Plasticizing capacity |
90KG/Hr |
Based on HDPE 5502 |
|
Extruding method |
|
Inverter motor, hardness tooth surface gear box |
|
Driving power |
30KW |
|
|
Screw revolution |
10—90rpm |
|
|
Heating zones |
3 |
Temperature module from Mitsubishi PLC |
|
Heating power |
10KW |
Solid state (SSR) and plug connection for all heaters |
|
Blowers |
3 |
|
|
Cooling function |
Yes |
Cooling water for feeding zone and gear box |
plastic gallon blow molding machine extruder- die head
plastic gallon blow molding machine plastic plasticing part
Plastic manual blow moulding machine produc
Zhangjiagang plastic blow molding machine, component brand
Zhangjiagang plastic blow molding machine, loading
Any inuqiry about Zhangjiagang PE bottle blowing machine , blow moulding machine, please contact us!
