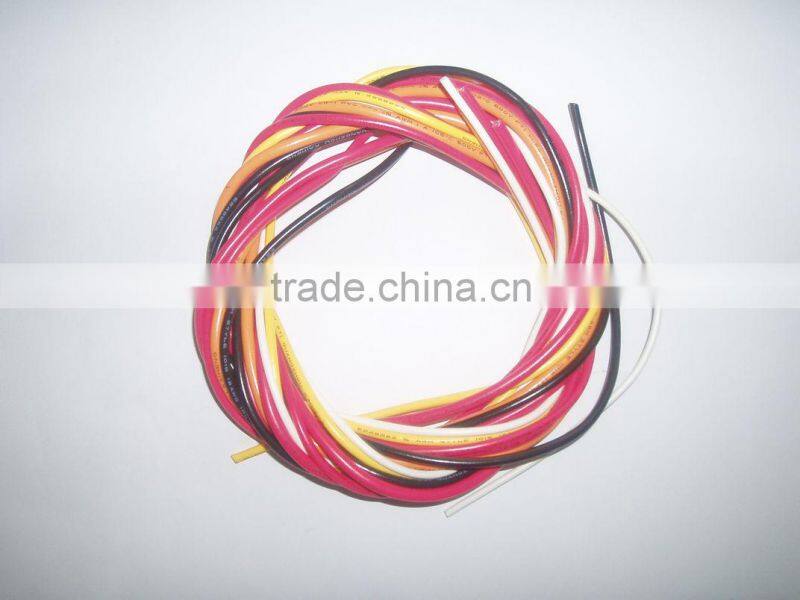

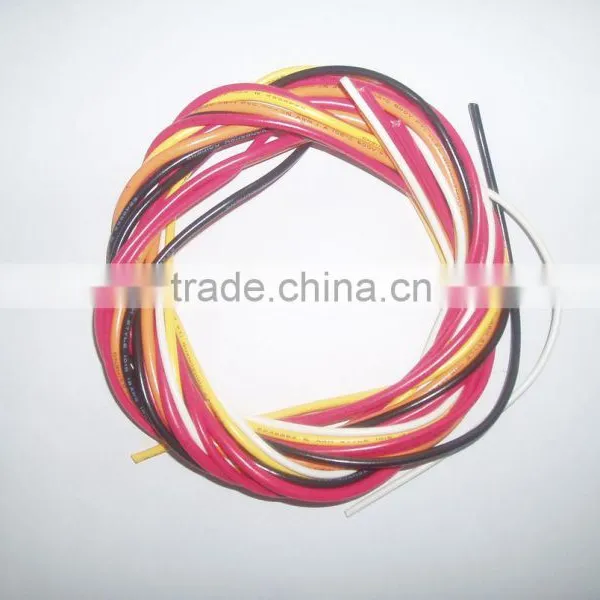

UL 1007 Hook-up Wire 80℃ 300V
For general purpose internal wiring of electronic and electrical equipment
where exposed to temperatures not exceeding 80℃
Product Description
Rated temperature: 80℃
Rated voltage: 300V
Standard: UL Subject 758, UL 1581
Conductor: 30~16AWG,solid or stranded, tinned or bare copper
Insulation: PVC
Passes UL VW-1 Vertical flame test
Resistant to acid, alkali ,oil, moisture and fungi
UL style |
Conductor |
Insulation |
Max. resistance of |
Package |
|||||
AWG |
Nom.Area |
No./mm |
Nom.Dia. |
Nom.Thick |
Nom.Dia. |
conductor at 20℃ |
ft/coil |
m/coil |
|
|
(mm2) |
|
(mm) |
(mm) |
(mm) |
Ω/km |
|||
|
28 |
0.0804 |
7/0.127 |
0.38 |
|
1.18 |
237.25 |
2000 |
610 |
|
26 |
0.128 |
7/0.16 |
0.48 |
|
1.28 |
148.94 |
2000 |
610 |
|
24 |
0.205 |
11/0.16 |
0.61 |
|
1.41 |
93.25 |
2000 |
610 |
UL 1007 |
22 |
0.324 |
17/0.16 |
0.76 |
0.40 |
1.56 |
55.0 |
2000 |
610 |
|
20 |
0.519 |
21/0.18 |
0.95 |
|
1.75 |
34.6 |
2000 |
610 |
|
18 |
0.823 |
16/0.254 |
1.17 |
|
1.97 |
21.8 |
2000 |
610 |
|
16 |
1.31 |
26/0.254 |
1.5 |
|
2.3 |
13.7 |
1000 |
305 |
Order reference
Color :black,white,red,yellow,green,blue,brown,grey,orange,violet,yellow/green, Special color also can be ordered.
Specification: Reference to specification table, Special specification also can be ordered.
Guangzhou Kaiheng K&S Co.,Ltd is a major supplier of Heat shrinkable tubing offering good quality products at competitive price.We are specialized in this filed for over 15 years.We manufacture and distribute a broad range of heat shrinkable tube,PVC tube.Trademarked as KOSOO. Our products meet international standards such as UL,CSA and Milspec as well as international environmental demands.
1.Reply your inquiry in 24 working hours.
2.Delivery the goods to our customer all over the world with speed and precision.
3.Offer the goods with superior quality.and competitive price.
4.100% QC inspection before shipment.
