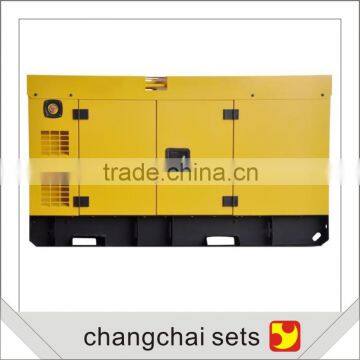

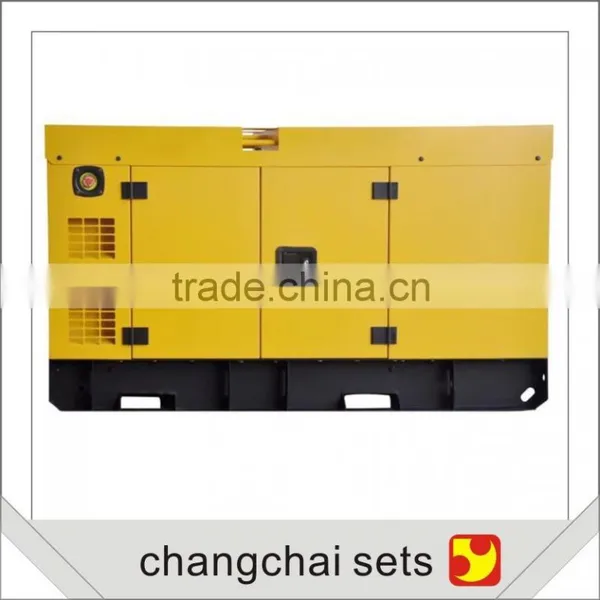

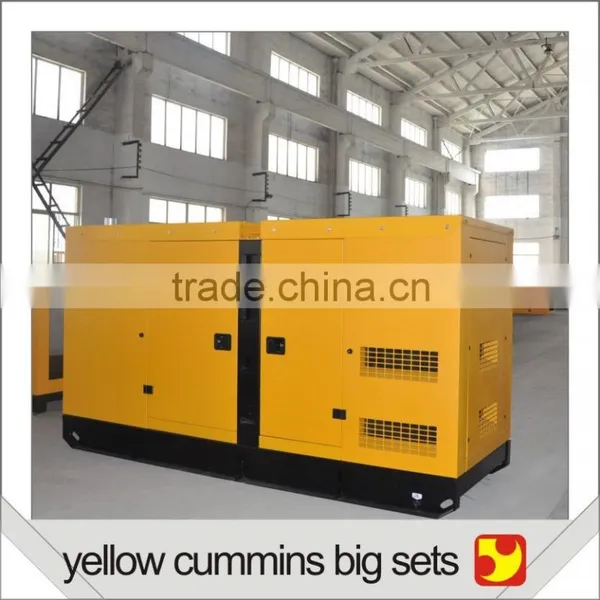

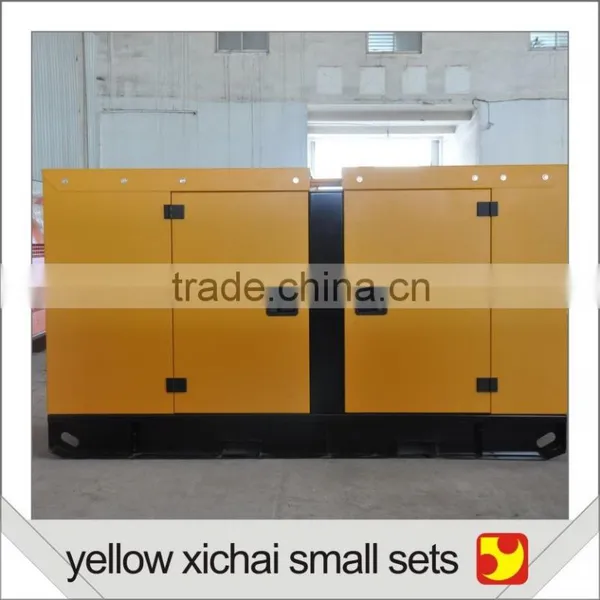

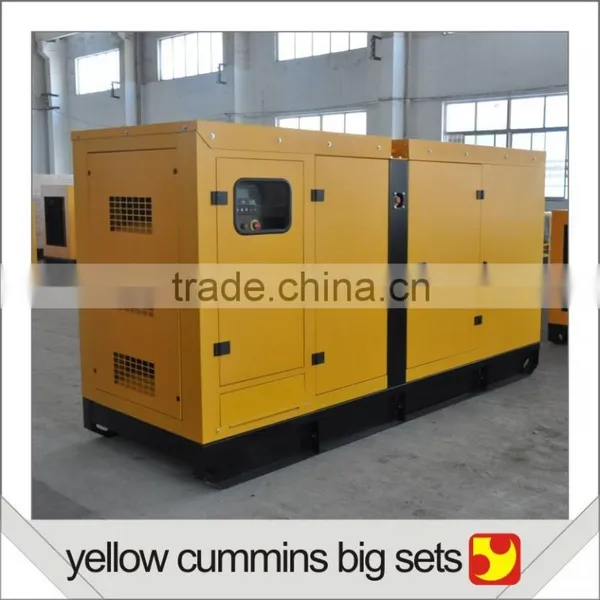

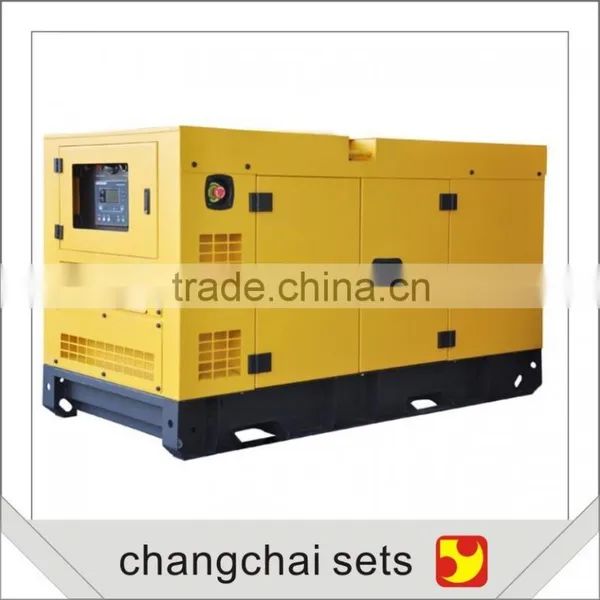

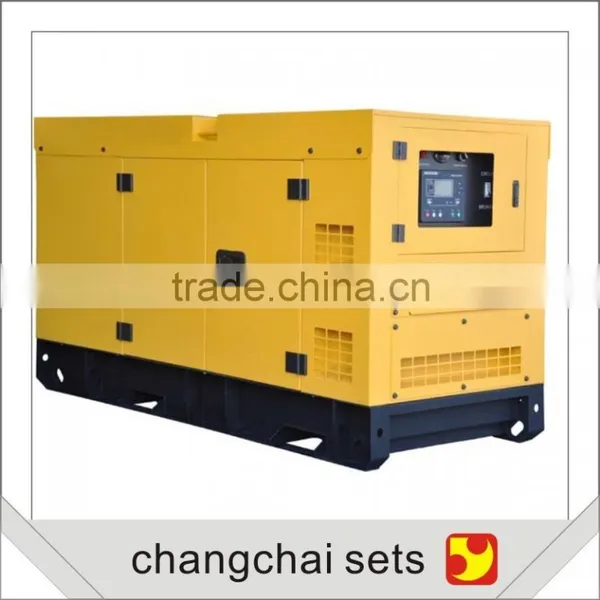

Chinese Factory Made BEIYI Brand Diesel Generator Single Phase Portable Type

Name: Chinese Factory Made BEIYI Brand Diesel Generator Single Phase Portable Type
Brand: BEIYI
SKU: 106707729
Availability: InStock

US$ 6,000 - 25,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

BEIYI

Model Number:

BY-C125

Wuxi Beiyi Excavator Parts Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name BEIYI

Model Number BY-C125

Output Type AC Single Phase

Speed 1500/1800rpm

Frequency 50HZ

Rated Power 20KVA

Rated Voltage 230/400V

Rated Current 87A

Specifications

1.BEIYI brand diesel generator
2.Cummins engine
3.Stamford alternator

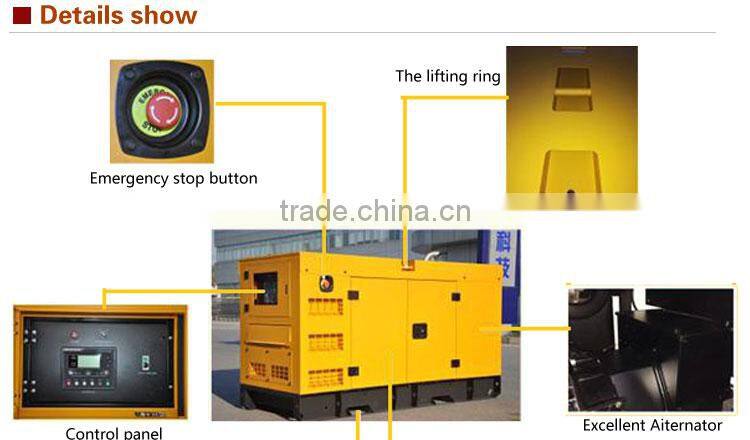

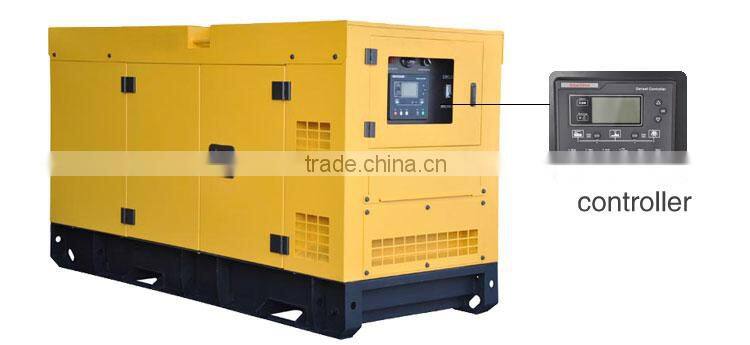

4.LED display shows system status

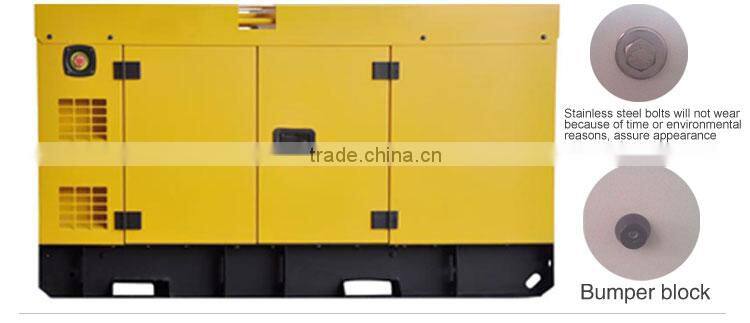

Chinese factory made BEIYI brand diesel generator single phase portable type

Diesel water cooled generator

with Perkins engine+Stamford alternator

Generator data

Engine specifications

Perkins engine è Model: 1103A-33G

General data

Cylinder no.	3
Cylinder arrangement	Vertical In-line
Cycle	4 stroke
Induction system	Naturally aspirated
Combustion system	Direct injection
Cooling system	Water-cooled
Bore X Stroke (mm)	105X127
Displacement (L)	3.3
Compression ratio	19.25:1
Direction of rotation	Anti-clockwise, viewed on flywheel
Lubrication capacity (L)	7.9
Coolant capacity (L)	10.2
Dimension (LXWXH) (mm)	1029X629X951
Dry weight (kg)	412

Alternator specifications

Control system	Self excited
A.V.R.	SX480
Voltage regulation	±1.0%
Insulation system	Class H
Protection	IP23
Stator winding	Double layer lap
Winding pitch	2/3
Winding leads	12
Stator wdg. resistance	Stator wdg. resistance
Rotor wdg. resistance	0.857 Ohms at 22°C
Excited stator resistance	20.3 Ohms at 22°C
Excited rotor resistance	0.201 Ohms per phase at 22°C
Waveform distortion	No load <1.5% non-distorting balanced linear load <5.0%
Maximum overspeed	2250 Rev/Min
Bearing drive end	BALL.6309-2RS (ISO)
Bearing non-drive end	BALL.6306-2RS (ISO)
Packing crate size	85X51X67 (cm)
Telephone interference	THF<2% (50Hz)
Cooling air	0.100 m3/sec 212 cfm
