10kw/10kva Diesel Generator Single Phase Portable Type

Name: 10kw/10kva Diesel Generator Single Phase Portable Type
Brand: BEIYI
SKU: 106707773

US$ 6,000 - 25,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

BEIYI

Model Number:

BY-C125

Wuxi Beiyi Excavator Parts Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name BEIYI

Model Number BY-C125

Output Type AC Single Phase

Speed 1500/1800rpm

Frequency 50HZ

Rated Power 20KVA

Rated Voltage 230/400V

Rated Current 87A

Specifications

1.Diesel water cooled generator
2.Cummins engine
3.Stamford alternator

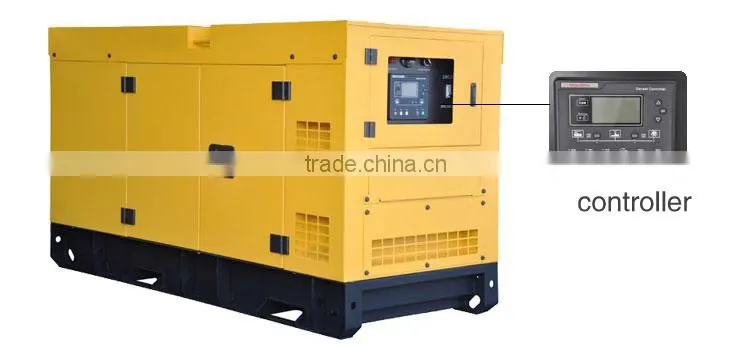

4.LED display shows system status

10kw/10kva diesel generator single phase portable type

Diesel water cooled generator

with Perkins engine+Stamford alternator

Generator data

Engine specifications

Perkins engine è Model: 1103A-33G

General data

Cylinder no.	3
Cylinder arrangement	Vertical In-line
Cycle	4 stroke
Induction system	Naturally aspirated
Combustion system	Direct injection
Cooling system	Water-cooled
Bore X Stroke (mm)	105X127
Displacement (L)	3.3
Compression ratio	19.25:1
Direction of rotation	Anti-clockwise, viewed on flywheel
Lubrication capacity (L)	7.9
Coolant capacity (L)	10.2
Dimension (LXWXH) (mm)	1029X629X951
Dry weight (kg)	412

Alternator specifications

Control system	Self excited
A.V.R.	SX480
Voltage regulation	±1.0%
Insulation system	Class H
Protection	IP23
Stator winding	Double layer lap
Winding pitch	2/3
Winding leads	12
Stator wdg. resistance	Stator wdg. resistance
Rotor wdg. resistance	0.857 Ohms at 22°C
Excited stator resistance	20.3 Ohms at 22°C
Excited rotor resistance	0.201 Ohms per phase at 22°C
Waveform distortion	No load <1.5% non-distorting balanced linear load <5.0%
Maximum overspeed	2250 Rev/Min
Bearing drive end	BALL.6309-2RS (ISO)
Bearing non-drive end	BALL.6306-2RS (ISO)
Packing crate size	85X51X67 (cm)
Telephone interference	THF<2% (50Hz)
Cooling air	0.100 m3/sec 212 cfm
