Specifications
1, 4x10/100Mbps LAN Port, 1 RJ112, 1x4dBi Fixed Antenna
On sale ! 150M adsl modem router

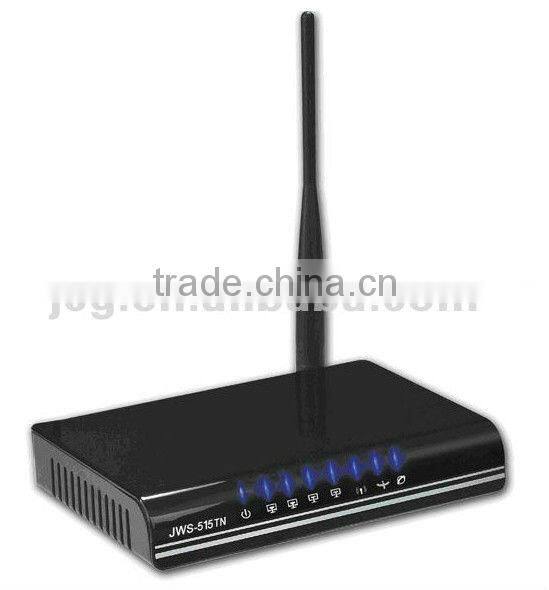

JWS-515TN
JWS-515TN 150Mbps wireless ADSL modem integrates ADSL modem and wireless router in one. It is a high speed ADSL modem providing 24Mbps downstream and up to 1024kbps upstream data rate. Meanwhile it is a wireless router with 150Mbps speed.
Specifications
1.150Mbps wireless ADSL modem
2.24Mbps downstream,1M upstream
3.1 RJ11 port,4 RJ45 port
4.FCC, CE,RoHS,GS 150Mbps wireless ADSL modem
Pictures
Characters
1.IEEE 802.11n compliance. Backwards compatible with 802.11b/g
2.ADSL,ADSL2,ADSL2+ compliance (up to 24Mbps downstream and 1Mbps upstream)
3.Integrates ADSL2/2+ Modem ,Wireless router, Wireless access point, Four-ports switch and firewall in one
4.1T1R MIMO , wireless rates of up to 150Mbps
5.4x10/100Mbps LAN Port, 1 RJ11 Port for ADSL connection
6.1x4dBi Fixed Antenna
7.MAC Address Filter
8.QoS, DHCP Server/Relay, NAT, UPnP support
9.Dynamic DNS, DMZ support
10.Supports 64/128-bits WEP, WPA/WPA2 Encryption
Spec
Standard |
IEEE 802.11n,IEEE 802.11g,IEEE 802.11b ADSL,ADSL2, ADSL2+ IEEE 802.3,IEEE 802.3u |
Interface |
LAN 4 10/100M Auto MDI/MDIX RJ45 port 1 RJ11 port |
Frequency Range |
2.4GHz-2.4835GHz |
Radio Data Rate |
150M |
Channel |
1~11 (USA, Canada) ; 1~13 (Europe) ; 1~14 (Japan) |
Spread Spectrum |
DSSS |
Modulation |
BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM) |
Transmission Distance |
Indoor up to 100m , outdoor up to 300m (it is limited in an environment) |
Receive Sensitivity@PE |
11n : -70dBm@10% PER 11g : -70dBm@10% PER 11b: -85dBm@8% PER |
Transmit Power |
17dBm |
Antenna plus |
1x4dBi Fixed Antenna |
Data Security |
64/128-bits WEP;WPA/WPA2 |
Environment |
Operating Temperature: 0°C~40°C (32°F~104°F) Operating Humidity: 10%~90%RH (non-condensing) |
Power |
9V/ 1A |
Dimensions |
170mmx120mmx20mm |
Safety & Emission |
FCC, CE |
