Specifications
Realtek Solution best selling 150M ADSL2+Modem RouterSecurity with WPS button
High quality
We are factory
Detailed Product Description
3.1 RJ11 port,4 RJ45 port
4.FCC, CE

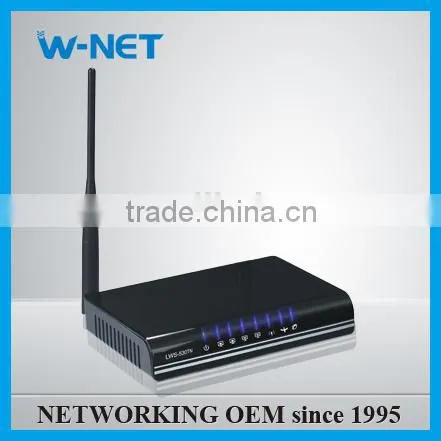

150Mbpslong range wireless adsl modem router
JWS-515TN
150Mbpslong range wireless adsl modem router integrates ADSL modem and wireless router in one. It is a high speed ADSL modem providing 24Mbps downstream and up to 1024kbps upstream data rate. Meanwhile it is a wireless router with 150Mbps speed.
Product description
Specification
Characters
1.IEEE 802.11n compliance. Backwards compatible with 802.11b/g
2.ADSL,ADSL2,ADSL2+ compliance (up to 24Mbps downstream and 1Mbps upstream)
3.Integrates ADSL2/2+ Modem ,Wireless router, Wireless access point, Four-ports switch and firewall in one
4.1T1R MIMO , wireless rates of up to 150Mbps
5.4x10/100Mbps LAN Port, 1 RJ11 Port for ADSL connection
6.1x4dBi Fixed Antenna
7.MAC Address Filter
8.QoS, DHCP Server/Relay, NAT, UPnP support
9.Dynamic DNS, DMZ support
10.Supports 64/128-bits WEP, WPA/WPA2 Encryption
Spec
Standard | IEEE 802.11n,IEEE 802.11g,IEEE 802.11b ADSL,ADSL2, ADSL2+ IEEE 802.3,IEEE 802.3u |
Interface | LAN 4 10/100M Auto MDI/MDIX RJ45 port 1 RJ11 port |
Frequency Range | 2.4GHz-2.4835GHz |
Radio Data Rate | 150M |
Channel | 1~11 (USA, Canada) ; 1~13 (Europe) ; 1~14 (Japan) |
Spread Spectrum | DSSS |
Modulation | BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM) |
Transmission Distance | Indoor up to 100m , outdoor up to 300m (it is limited in an environment) |
Receive Sensitivity@PE | 11n : -70dBm@10% PER 11g : -70dBm@10% PER 11b: -85dBm@8% PER |
Transmit Power | 17dBm |
Antenna plus | 1x4dBi Fixed Antenna |
Data Security | 64/128-bits WEP;WPA/WPA2 |
Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Operating Humidity: 10%~90%RH (non-condensing) |
Power | 9V/ 1A |
Dimensions | 170mmx120mmx20mm |
Safety & Emission | FCC, CE |

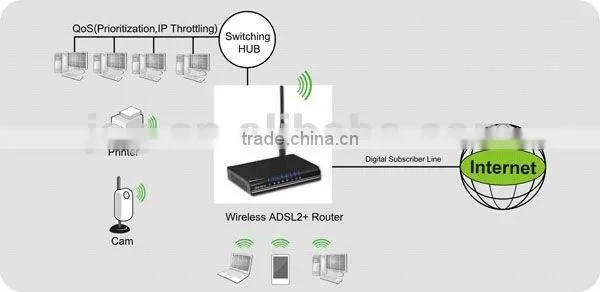

Network Configuration

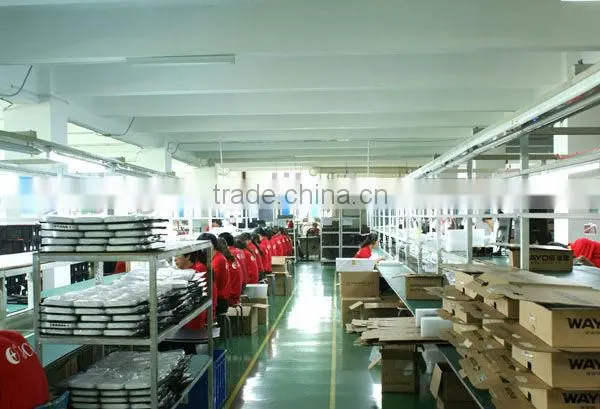

WORKSHOP
PCB TEST
After sales service
