Popular 300M ADSL Modem Routers in Market
- 300000 Piece / Pieces per Month
- Shenzhen or Hongkong
- T/T L/C
Product Details
Products Status: | Stock | Type: | Wireless | Application: | Soho |
Function: | Firewall, QoS, VPN | LAN Ports: | 4 | WAN Ports: | 1 |
Certification: | FCC,CE | Brand Name: | JCG/OEM | Model Number: | JWS-530TN |
Place of Origin: | Guangdong, China |
Product Description
Specifications
Popular 300M ADSL Modem Routers in MarketRealtek chipset
Factory in shenzhen, support with competitive price
Detailed Product Description
3.1 RJ11 port,4 RJ45 port
4.FCC, CE

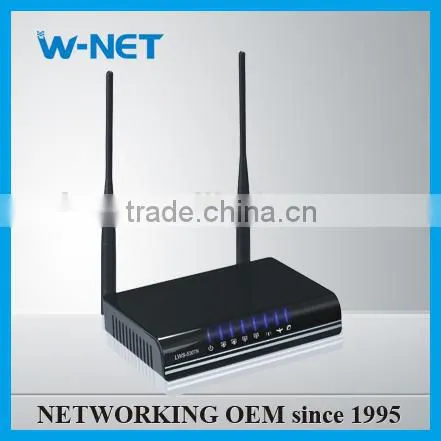

300Mbps wifi ADSL router
JWS-530TN
300Mbps wifi ADSL Router integrates ADSL modem and wireless router in one. It is a high speed ADSL modem providing 24Mbps downstream and up to 1024kbps upstream data rate. Meanwhile it is a wireless router with 300Mbps speed.
Product description
Specification
Characters
1.IEEE 802.11n compliance. Backwards compatible with 802.11b/g
2.ADSL,ADSL2,ADSL2+ compliance (up to 24Mbps downstream and 1Mbps upstream)
3.Integrates ADSL2/2+ Modem ,Wireless router, Wireless access point, Four-ports switch and firewall in one
4.2T2R MIMO , wireless rates of up to 300Mbps
5.4x10/100Mbps LAN Port, 1 RJ11 Port for ADSL connection
6.2x4dBi Fixed Antenna
7.MAC Address Filter
8.QoS, DHCP Server/Relay, NAT, UPnP support
9.Dynamic DNS, DMZ support
10.Supports 64/128-bits WEP, WPA/WPA2 Encryption
Spec
Standard | IEEE 802.11n,IEEE 802.11g,IEEE 802.11b ADSL,ADSL2, ADSL2+ IEEE 802.3,IEEE 802.3u |
Interface | LAN 4 10/100M Auto MDI/MDIX RJ45 port 1 RJ11 port |
Frequency Range | 2.4GHz-2.4835GHz |
Radio Data Rate | 300M |
Channel | 1~11 (USA, Canada) ; 1~13 (Europe) ; 1~14 (Japan) |
Spread Spectrum | DSSS |
Modulation | BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM) |
Transmission Distance | Indoor up to 100m , outdoor up to 300m (it is limited in an environment) |
Receive Sensitivity@PE | 11n : -70dBm@10% PER 11g : -70dBm@10% PER 11b: -85dBm@8% PER |
Transmit Power | 17dBm |
Antenna plus | 2x4dBi Fixed Antenna |
Data Security | 64/128-bits WEP;WPA/WPA2 |
Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Operating Humidity: 10%~90%RH (non-condensing) |
Power | 9V/ 1A |
Dimensions | 170mmx120mmx20mm |
Safety & Emission | FCC, CE |
Network Configuration
WORKSHOP
PCB TEST
After sales service
Contact Us
- Shenzhen Yichen Technology Development Co., Ltd.
- Contact nameMichael Zhu
- Phone86-755-8623 8512
- Address23rd Floor C1 Building NO.1001 Nanshan Zhi Yuan Xueyuan Road, Nanshan District, Shenzhen City Shenzhen,Guangdong
