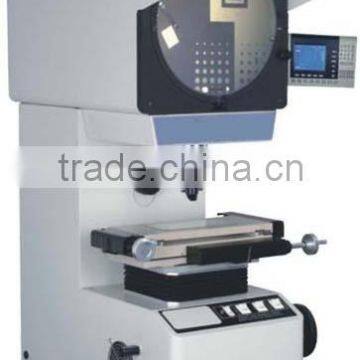

300mm Digital Vertical Profile Projector JT3000 Series
- 5 Set / Sets per Month
- Shanghai
Product Details
Place of Origin: | Guangdong, China | Brand Name: | jaten | Model Number: | JT3000 |
Product Description
300mm Digital Vertical Profile Projector JT3000 Series
Product Features:
- 300mm diameter screen with digital protractor;
- Double steel guide for stage lifting focus system;
- Halogen profile and surface illumination adjustable;
- Geometric multifunctional data processing system upgrade to DRO DP300;
- Built-in Mini-printer;
- Available 10x,20x,50x,100x objectives, rotary table, edge detector, etc.
Specifications:
Reverse Image | JT3015 | JT3010 | JT3051 | JT3020 | |||
Obverse Image | JT3015Z | JT3010Z | JT3051Z | JT3020Z | |||
Metal Stage Size | 340 x 152mm | 230 x 170mm | 340 x 170mm | 350 x 170mm | |||
Glass Stage Size | 196 x 96mm | 145 x 120mm | 196 x 120mm | 246 x 120mm | |||
Stage Travel:X and Y-axis | 150 x 50mm | 100 x100mm | 150 x 100mm | 200 x 100mm | |||
Stage Travel:Z-axis | 100mm (for focusing) | 100mm (for focusing) | 100mm (for focusing) | 100mm (for focusing) | |||
Accuracy | ≤3+L/200(um) | ||||||
Resolution of X and Y-scale | 0.0005 mm | ||||||
Screen | Diameter :Ø312mm,Effective Range ≥ Ø300(with “* ” Reticle) | ||||||
Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01° | |||||||
Digital Readout | DP 300 Multifunctional Data Processing System | ||||||
Illumination | Surface and Contour Illumination:24v/150w halogen lamp (adjustable) | ||||||
Cooling System | Forced Cooling (3-axis-fans) | ||||||
Power Supply | AC110V/60Hz; 220V/50Hz, 650W | ||||||
Dimension(L×W×H) | 780 x 530 x 1150mm | 780 x 530 x 1150mm | 780 x 530 x 1150mm | 780 x 530 x 1150mm | |||
Packing Dimension | 990 x 765 x 1340mm | 990 x 765 x 1340mm | 990 x 765 x 1340mm | 990 x 765 x 1340mm | |||
Gross/Net weight | 200/150Kg | 210/155Kg | 225/165Kg | 220/170Kg |
Standard Delivery:
Product Name | Product Name | Product Name |
Digital Readout DP300 | 10X Objective | Screen Clamp Device |
Built-in Mini-printer | Transmitted lens | Operation Manual |
Optional Accessories:
Product Name | Product Name | Product Name |
Measuring Software | Rotary Table | Rotary Table |
20X Objective | 50X Objective | 100X Objective |
Holder Clamp | V-shape Clamp | Swivel Center Support |
Working Cupboard | Over-Chart | Foot-switch |
Printer Paper | Edge Detector | Standard Block |
For more infomation , please check on :
