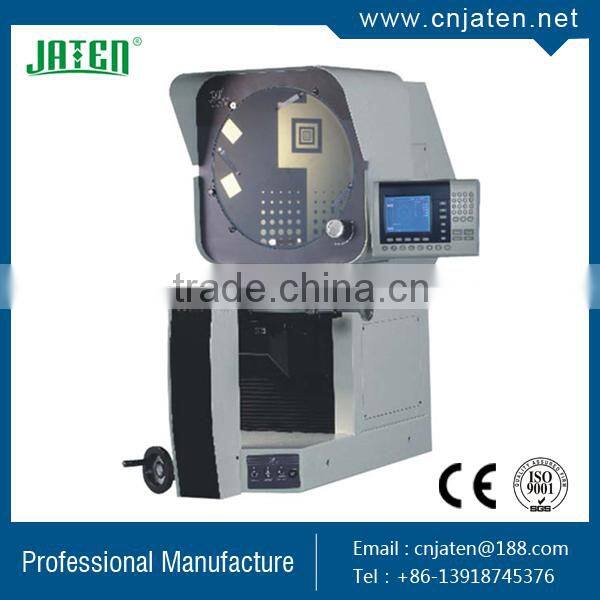

400mm Digital Horizontal Profile Projector HB16-3015

Name: 400mm Digital Horizontal Profile Projector HB16-3015
Brand: Jaten
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Product Details

Place of Origin:

Guangdong, China

Brand Name:

Jaten

Model Number:

HB16-3015

400mm Digital Horizontal Profile Projector HB16-3015

HB16-3015 Product Features:

l 400mm diameter screen with digital protractor;

l 300x150mm precision movement work-stage, 300x200mm optional;

l Work-stage sway range between 15°;

l Halogen profile and fiber surface illumination adjustable;

l Geometric multifunction data processing system DRO DP300;

l Built-in Mini-printer;

l Available 10x,20x,50x, objective rotary table and foot-switch, etc.

Specifications:

Reverse Image	HB16-3015
Obverse Image	HB16-3015Z
Metal Stage Size	408 x 126mm
Stage Travel: X and Y-axis	300 x 150mm
Stage Travel:Y-axis	75mm (for focusing)
X and Z Linear Resolution	0.0005 mm
Sway Range	±15°
Accuracy	≤3+L/200(um)
Screen	Diameter :Ø425mm,Effective Range ≥ Ø400(with “* ” Reticle)
Screen	Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01°
Digital Readout	DP 300 (561-301) Multifunctional Data Processing System
Illumination	Contour illumination:24v/150w (halogen Lamp )
Illumination	Surface illumination:21v/150w (Optical Fiber)
Power Supply	AC110V/60Hz; 220V/50Hz, 650W
Dimension (D×W×H)	1160 x 600 x 960mm
Packing Dimension (L×W×H)	1300 x 880 x 1250mm
Gross/Net Weight	200/160Kg
