VB12 Series 300mm Digital Vertical Profile Projector
- 0 per Month
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Jaten | Model Number: | VB12 |
Product Description

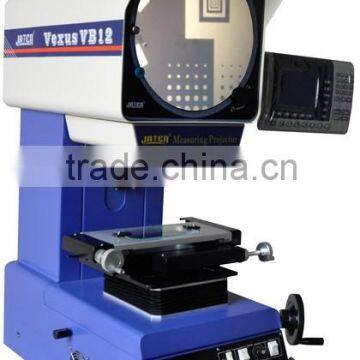

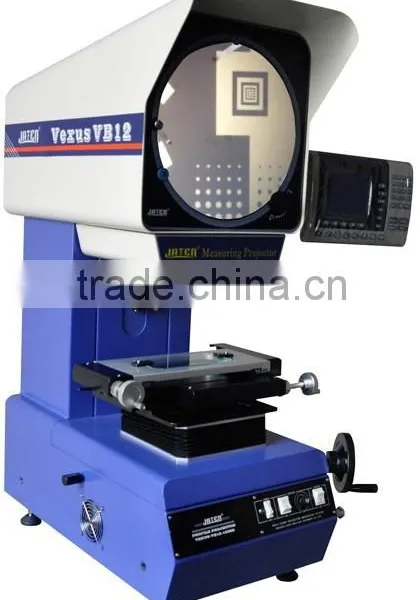

VB12 Series 300mm Digital Vertical Profile Projector
VB12 Product Features :
l 300mm diameter screen with digital protractor;
l Working stage lifting system to focus;
l Precision movement work-stage;
l Halogen profile and surface illumination adjustable;
l Geometric multifunction data processing system upgrade to DRO DP300;
l Built-in Mini-printer;
l Available 10x,20x,50x,100x objective, rotary table, foot-switch, etc.
Specifications:
Reverse Image | VB12-1550 | VB12-2010 |
Obverse Image | VB12-1550Z | VB12-2010Z |
Metal Stage Size | 340x152 mm | 350x170 mm |
Glass Stage Size | 196x96 mm | 246x120 mm |
Stage Travel: X and Y-axis | 150x50 mm | 200 x 100 mm |
Stage Travel: Z-axis | 100mm (for focusing) | |
Accuracy | ≤3+L/200(um) | |
Resolution of X and Y-scale | 0.0005 mm | |
Screen | Diameter :Ø330mm,Effective Range ≥ Ø300(with “* ” Reticle) | |
Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01° | ||
Digital Readout | DP 300Multifunctional Data Processing System/RS232 | |
Instrument Illumination | 24v/150w halogen lamp (adjustable) | |
Cooling System | Forced Cooling (3-axis-fans) | |
Power Supply | AC110V/60Hz; 220V/50Hz, 400W | |
Dimension (D×W×H) | 785x 575 x 1136mm | |
Packing Dimension (L×W×H) | 1540 x 790 x 1500mm | |
Gross/Net Weight | 260/220Kg |
Standard Delivery:
Product Name | Product Name | Product Name |
Digital Readout DP300 | 10X Objective | Screen Clamp Device |
Built-in Mini-printer | Transmitted lens | Operation Manual |
Optional accessories:
Product Name | Product Name | Product Name |
Measuring Software | Rotary Table | Rotary Table |
20X Objective | 50X/100X Objective | Printer Paper |
Holder Clamp | V-shape Clamp | Swivel Center Support |
Working Cupboard | Foot-switch | Standard Block |
