Product Details
Place of Origin: | Shanghai, China | Brand Name: | Universe | Model Number: | YMPZ-2 |
After-sales Service Provided: | Overseas third-party support available |
Product Description

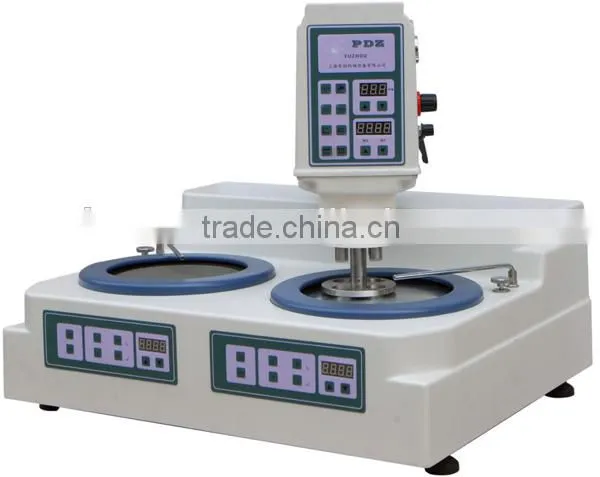

YMPZ-2 Automatic Metallurgical Grinding and Polishing Machine
Description:
l In the process of preparation of metallographic sample, pre grinding, polishing and grinding are the indispensable procedures.
l This machine YMPZ-2 is produced with plastic sewage collection plate and cover and is the latest product with a new and beautiful appearance.
l This machine is controlled by single chip microcomputer, grinding disc 100RPM-1000RPM of stepless speed regulation with digital tube display.
l The motor is DC brushless motor and don’t need to replace the brush, used for a long time.
l The machine is plastic painted and non-toxic. Strong large support chassis design ensures the precision rotary balance.
l Powerful motor brings strong power and efficient grinding and polishing experience. Spindle leak-proof design ensures the bearing almost without damage and the super mute design brings a good experience.
l It supports for fast disk system, with the use of elasticity, and can be used with automatic grinding device.
l It can replace the manual grinding and polishing of the procedure, timing and set the speed of grinding head.
l It can increase the grinding quality and production efficiency and is the ideal metallographic sample preparation equipment.
l This machine can be adapted to various materials preparation of test samples. The polishing disc diameter is larger than the domestic similar products.
l The platen speed of polishing disc operates independently. It is the best equipment of metallographic sample preparation.
Technical Specifications:
l Grinding and Polishing Method: Automatic
l Grinding Disc Diameter: 230 mm
l Rotating Speed: Stepless 100-1000 r/min
l Power Supply: 400W
l Machine Body: Plastic Case, Corrosion Resistant Head, Antirust
l Test Block: 4 Pieces
l Air Pressure: 2.3~8kg/cm²
l Grinding Head Speed: Stepless 20-120 r/min
l Way of Pressure: Separate Pressurized
l Sample Size: MAXΦ45mm (Selectable, φ22, φ30, φ45 etc.)
l Interface: Membrane Switch, Digital Display,
l Grinding Speed, Timing, Steering and Tank Cleaning Function
l Display: 1. Speed 2. Time Countdown 3. Air Pressure
l Pressurizing Force Adjustable Range: 0-6 Kg
l Grinding Time: Adjustable Range 0-100 minutes (It Can Display the Remaining Time when Grinding)
l Rotating Angle of Grinding Head: Adjustable
l Grinding Direction: Forward or Reverse
l Specimen Chuck: Specimen Clamp Can be Quickly Replaced
l Dimensions: 757×623×645mm
l Power Supply: AC220V, 1000W
l Net Weight: 78Kg
