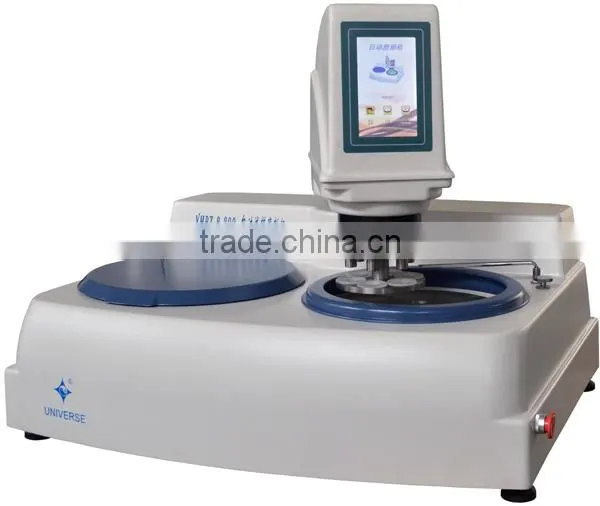

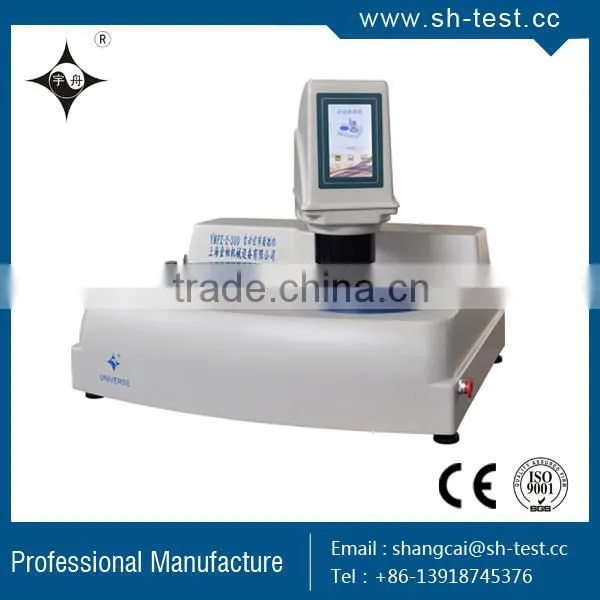

YMPZ-2-300/250 Automatic Metallurgical Sample Grinding and Polishing Machine
Description:
lIn the process of preparation of metallographic sample, pre grinding, polishing and grinding are the indispensable procedures.
lThis machine is produced with ABS sewage collection plate and cover and is the latest product with a new and beautiful appearance.
lThis machine is controlled by single chip microcomputer, grinding disc 100RPM-1000RPM of stepless speed regulation with touch
screen display and control.
lThe motor is DC brushless motor and don’t need to replace the brush, used for a long time.
lThe machine is non-toxic painted. Strong large support chassis design ensures the precision rotary balance. Powerful motor
brings strong power and efficient grinding and polishing experience. Spindle leak-proof design ensures the bearing almost
without damage and the super mute design brings a good experience.
lIt supports for fast disk system, with the use of elasticity, and can be used with automatic grinding device.
lIt can replace the manual grinding and polishing of the procedure, timing and set the speed of grinding head.
lIt can increase the grinding quality and production efficiency and is the ideal metallographic sample preparation equipment.
lThis machine can be adapted to various materials preparation of test samples. The polishing disc diameter is larger than
the domestic similar products.
lThe platen speed of polishing disc operates independently. It is the best equipment of metallographic sample preparation.
Technical Specifications:
lDiameter of the polishing and grinding disc: 300mm or 250mm
lDiameter of the abrasive paper: 300mm or 250mm
lRotational speed: 100~1000r/min, stepless
Or four speed 250r/min, 500r/min, 750r/min, 1000r/min
lMotor: DC brushless motor, 220V, 1.1kw
lRotational speed of grinding head: 30~120r/min, stepless
lCenter cylinder pressure: 0-0.5Mpa (Suggest 0.3~0.4 Mpa)
lPlanetary cylinder pressure: 0-0.5Mpa (Suggest 0.2~0.3 Mpa)
lSample installation quantity: 6
lMotor of grinding head: DC brushless deceleration motor, 220V, 100W
lDimensions: 725×900×760mm
lWeight: 115kg
