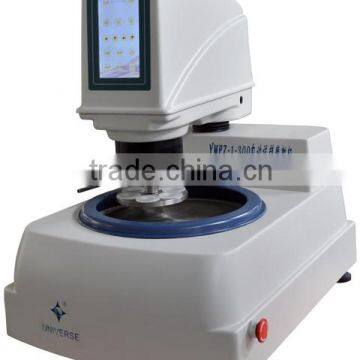

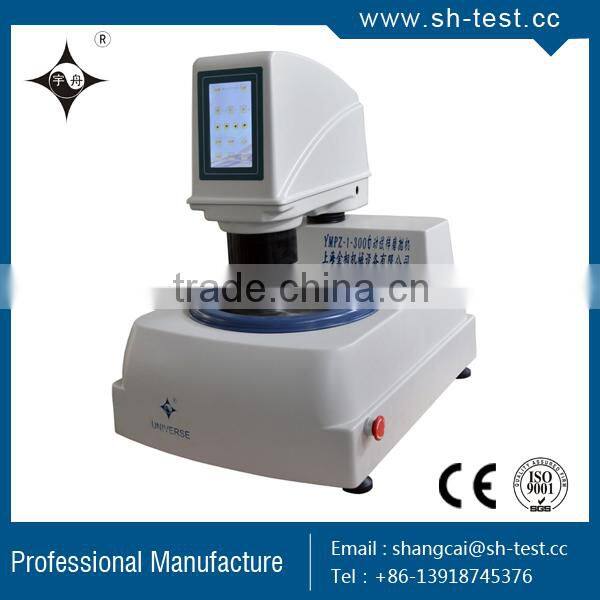

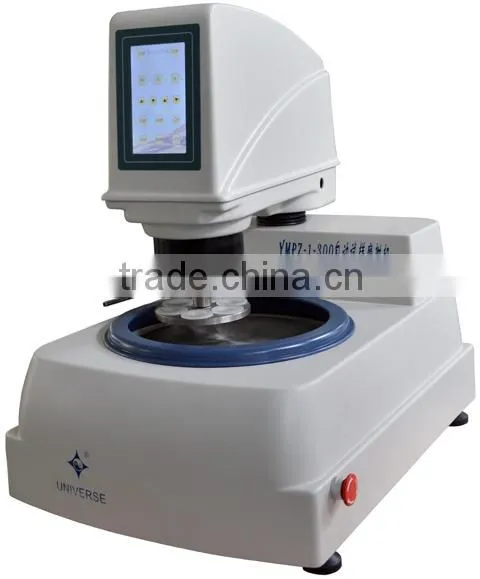

YMPZ-1-300/250 Metallurgical Grinding and Polishing Machine
Description:
l In the process of preparation of metallographic sample, pre grinding, polishing and grinding are the indispensable procedures.
l This machine is produced with ABS sewage collection plate and cover and is the latest product with a new and beautiful appearance.
l This machine is controlled by single chip microcomputer, grinding disc 100RPM-1000RPM of stepless speed regulation with touch screen display and control.
l The motor is DC brushless motor and don’t need to replace the brush, used for a long time.
l The machine is non-toxic painted. Strong large support chassis design ensures the precision rotary balance. Powerful motor brings strong power and
efficient grinding and polishing experience.
l Spindle leak-proof design ensures the bearing almost without damage and the super mute design brings a good experience.
l It supports for fast disk system, with the use of elasticity, and can be used with automatic grinding device.
l It can replace the manual grinding and polishing of the procedure, timing and set the speed of grinding head.
l It can increase the grinding quality and production efficiency and is the ideal metallographic sample preparation equipment.
l This machine can be adapted to various materials preparation of test samples. The polishing disc diameter is larger than the domestic similar products.
l The platen speed of polishing disc operates independently. It is the best equipment of metallographic sample preparation.
Technical Specifications:
l Diameter of the Polishing and Grinding Disc: 300mm or 250mm
l Diameter of the Abrasive Paper: 300mm or 250mm
l Rotating Speed: 100~1000r/min, stepless
Or Four Speeds: 250r/min, 500r/min, 750r/min, 1000r/min
l Motor: DC Brushless Motor, 220V, 1.1kw
l Rotating Speed of Grinding Head: Stepless 30~120r/min,
l Center Cylinder Pressure: 0-0.5Mpa (Suggest 0.3~0.4 Mpa)
l Planetary Cylinder Pressure: 0-0.5Mpa (Suggest 0.2~0.3 Mpa)
l Sample Installing Quantity: 6
l Motor of Grinding Head: DC Brushless Deceleration Motor, 220V, 100W
l Dimension: 725x500x760mm
l Net Weight: 75kg
