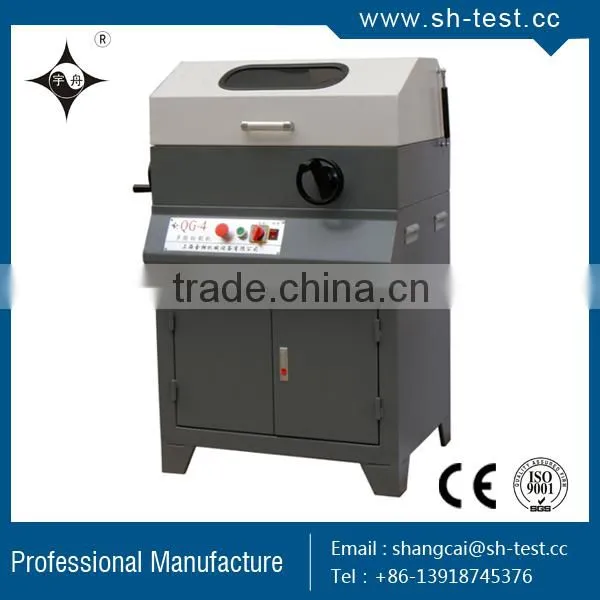

QG-4 Metallographic Cutting Machine
Description:
l QG4 multifunctional cutting machine is mainly used for cutting cylinder and samples of anomalistic shape, such as multi-angular shape, protruding board, etc.
l It adopts the all-sealing structure, which can guarantee the cutting sample under the conditions of absolute safety.
l In order to avoid the sample burning the material texture because of over-heating in cutting, besides the cutter matching strong cooling system, the sample can revolve in the cutting, which can avoid the sample's surface being burned in the cutting, and can increase the cutting cross section, raising the availability of cutting emery wheel.
l The cutter has the advantages of easy to operate, use, maintain, etc, which is an excellent equipment of cutting anomalistic shapes.
Technical Specifications:
l Maximum Cutting Cross Section: 65mm
l Platen Speed: 2800 r/min
l Grinding Wheel Sheet Specification: 250×1.5×32mm
l Electromotor: YSR 7132 1.1kW 380V 50Hz
l Dimensions: 870×590×1110mm
l Net Weight: 180Kg
Packing List:
l Mainframe
l Cooling water tank
l Spanner :28/36
l Emery wheel slice:φ250×1.5×φ32
l Plastic pipe:φ32
l Metal hose
l Instruction Manual
