Description:

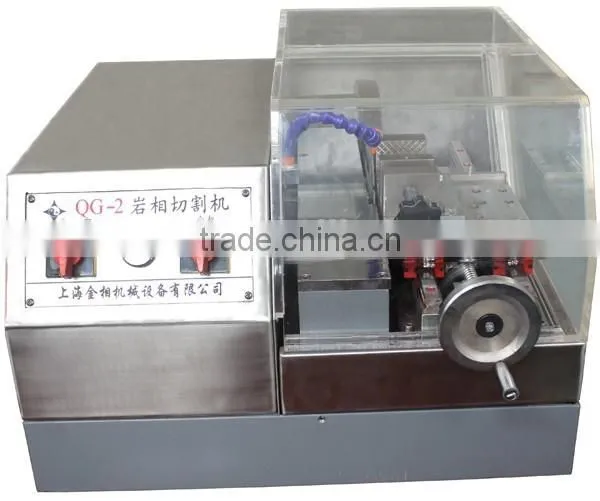

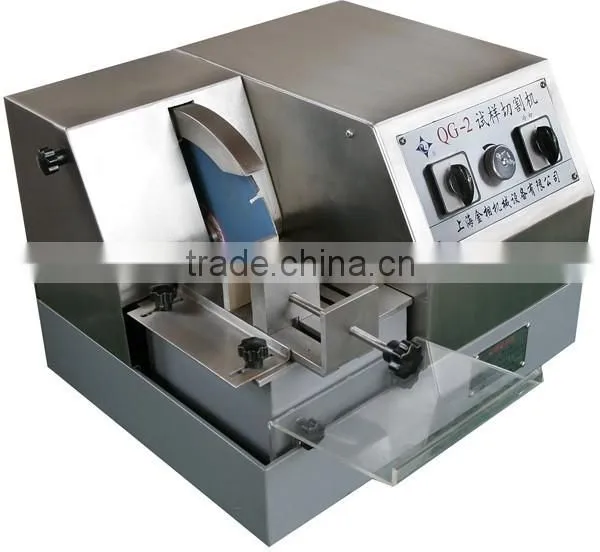

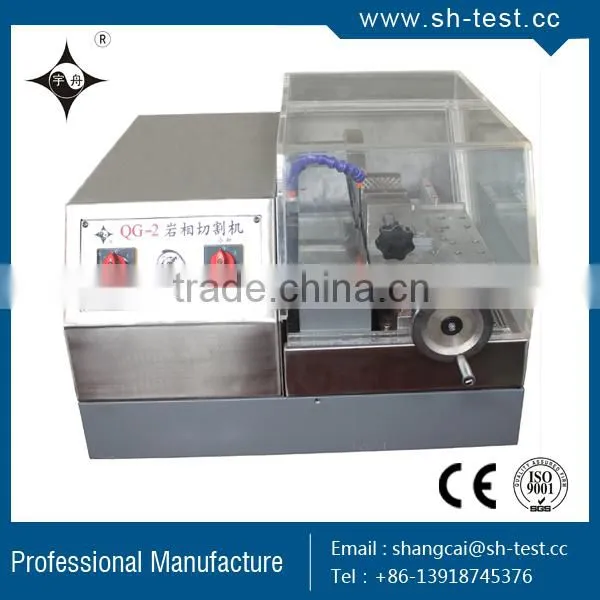

l QG-2 Cutting Machine is suitable for the general lithic material.
l In order to take the sample in ultra-safe situation, the machine not only adopts totally-enclosed double-encloser structure and fast clamp device, but also has cooling water tank, which uses prepared cooling liquid circularly.
l For lengthening the service life of this machine and easing its operation and maintenance, the main spare parts such as encloser, grinding wheel spindle sleeve, jaw and operating platform are made of stainless steel.
l The machine is the best equipment for cutting sample.
Technical Specifications:
l Maximum Cutting Cross Section: 65×65mm
l Rotate Speed: 1400r/min
l Specification of Diamond Cutting Disk: 250×2×32mm
l Electromotor: AS8034, 1.1KW, 380V, 50HZ
l Dimensions: 490×600×330mm
l Net Weight: 45KG
Packing List:
l Mainframe
l Grinding Wheel:Φ250×2×Φ32
l Instruction Manual
()
