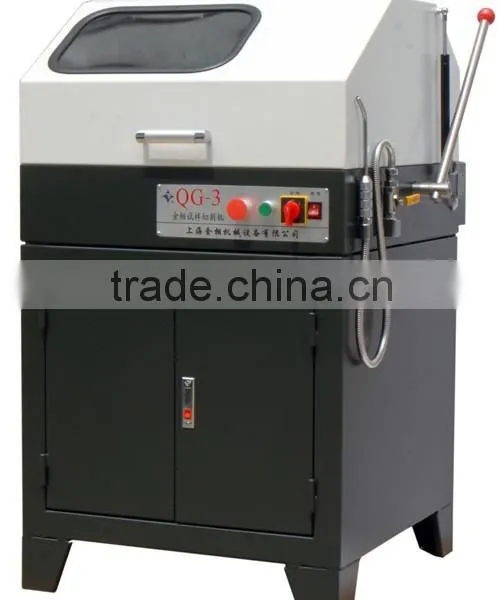

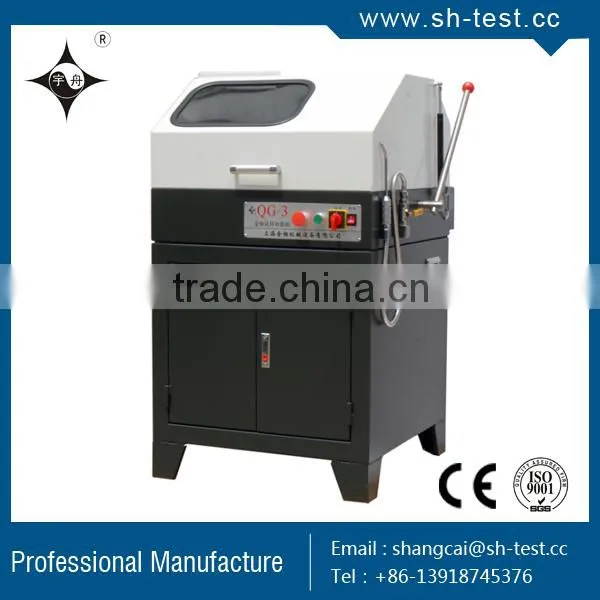

Help CenterQG-3 Metallographic Cutting Machine
Related Products
-
QG-2 Metallographic Cutting MachineUS$ 1,000 - 10,000MOQ: 1 Set -
QG-1 Metallographic Cutting MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
ZXQ-2 Automatic Metallographic Sample Mounting PressUS$ 1,000 - 10,000MOQ: 1 Set
-
ZXQ-1Automatic Metallographic Sample Mounting PressUS$ 1,000 - 10,000MOQ: 1 Set
-
YZXQ-3 Automatic Double Head Mounting PressUS$ 1,000 - 10,000MOQ: 1 Set
Description:
l QG-3 Metallographic Sample Cutting Machine can be used in the cutting of general all-facies and lithofacies sample materials, which could guarantee the cutting of optimum samples under the safe conditions.
l The machine adopts the all-sealing structure and quick clamping mechanism, and also attaching the special purpose cooling water tank for the use of coolant circulation, prolonging the service life, perfecting and facilitate the operation.
l The machine's inner and outer covering shell, tongs mouth, operating board, and other main spares are all made of stainless steel material, which is the optimum equipment of cutting samples.
Technical Specifications:
l Maximal Cutting Cross Section: Φ85mm
l Rotate Speed: 2800/min
l Grinding Wheel Sheet Specification: 300×2×32mm
l Electromotor: Y100L-2 3kW 380V 50Hz
l Dimensions: 730×700×540mm(750×730×1200mm Stand)
l Weight: 125kg(180kg Stand)
Packing List:
l Mainframe
l Cooling water tank
l Emery wheel slice:φ300×2×φ32
l Solid wrench:(14,17) (24,27)
l Inlet and discharge pipe
l Technological file
l Instruction Manual
()
