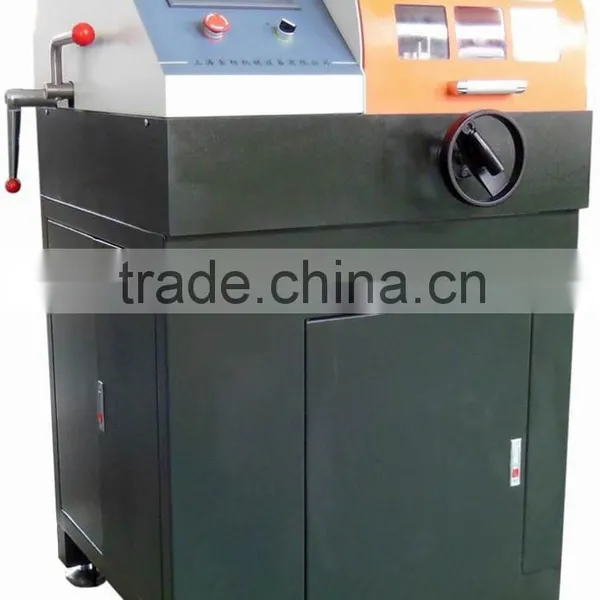

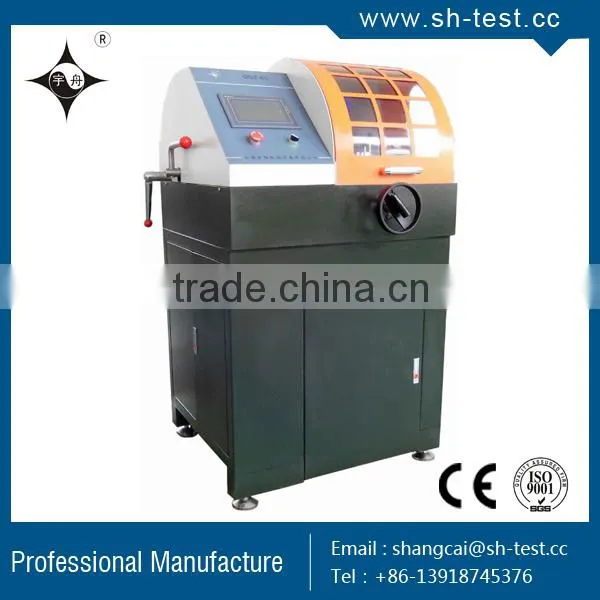

QGZ-65 Metallographic Cutting Machine
- 1 Set / Sets per Month
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Price of small size movable gold trommel screen
- Gold selection equipment Mobile gold cart Job site
- DOING photovoltaic solar panels recycling production line
- Stainless Steel Double Kitchen Sink Middle Weld Seam Rolling Machine
- Stainless steel handmade sink hydraulic power of light direct press
Product Details
Place of Origin: | Shanghai, China | Brand Name: | Universe | Model Number: | QGZ-65 |
After-sales Service Provided: | Overseas third-party support available |
Product Description
Description:
l The machine is a combination of manual / PLC control and automatical control as one of the metallographic sample cutting machines, with very high reliability and control ability.
l Manual and automatic free conversion,
l Touch screen displays a variety of cutting data,
l precise positioning, (iv) cut cutting, absolute cutting, incremental cutting-three functions cutting way, in order to make the cutting room easy to clean and ensure the spindle motor’s safety, we use mechanical and electrical separation.
l The cutting room security guard cover selected transparent plexiglass material.
l The cutting indoor room installed ventilation fan to increase the working room light and clarity.
l The design is more humane, using man-machine engineering principles.
l The device is equipped with a cooling water tank designed for the storage of coolant.
l Cutting sample of rock, ceramic, diamond grinding wheel must be used before cutting.
l Low noise, easy to operate, beautiful appearance, safe to use, and is one of the necessary equipment for laboratory sample preparation.
Technical Specifications:
l Manual / electric can choose freely.
l Cutting feed speed: 3 mm / min, 5 mm / min, 8 mm / min (user may modify the set speed according to requirement)
l Y-axis maximum travel distance: 235mm
l Z axis maximum travel distance: 35mm (cut style)
l The maximum cutting diameter: 65mm
l The cooling water tank capacity: 70 liters
l Motor: 2.2kw, speed: 2800 rpm / min;
l Power: 380V, 50HZ
l Dimensions: 860 × 780 × 1330mm
l The body forms: vertical
l Weight: 280kg
l Three-phase five-wire 380V 50HZ: A, B, C, N, PE
()
