Factory direct sale ultrafine mill grinder in good quality
Factory direct sale ultrafine mill grinder in good quality Description
Factory direct sale ultrafine mill grinder in good quality is used for grinding the barite, limestone, kaolin, cement, slag, etc, below scale 9.3 of Mohs hardness and 280-odd sorts of non-inflammable and nonexclusive stuff in the trades of mining, metallurgical industrial, chemical engineering and building material for high fine powder generation and processing. The product size is adjustable in the range of 80-325 (600 the largest) meshes. It is possible to produce 30-80 mesh coarse powder through special device in the Factory direct sale ultrafine mill grinder in good quality
After the materials are put into the grinding room of Factory direct sale ultrafine mill grinder in good quality, the grinding roll swings outward and presses closely upon the grinding ring due to the centrifugal force in rotation of the main shaft. The shovel carries materials to the space between the grinding roll and grinding ring, and materials are ground as the grinding roll rolls. After being ground, the powder is selected by Separator via the cycle wind of the blower and the rough powder will be back to the grinding room for regrinding. The proper powder is brought into the powder collector together with airflow. The powder comes out as end products while the airflow goes back to the powder collector in cycling to make the Factory direct sale ultrafine mill grinder in good quality work normally. The increased airflow comes out after purification.
1) The materials must be non-flammable and non-explosive materials such as:
a) Minerals:limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaoline, medical stone, rock phosphate,etc.
b) Metallurgy materials: manganese ore, iron ore.etc.
c) Chemical materials: active carbon, carbon black,etc.
d) Building materials:glass, ceram, fireproof materials, heat preservation materials,etc.
2) Conditions for the application and output granularity:
a) The materials should have the hardness less than 7 in Moh’s scale and humidity less than 6 percent.
b) The granularity of the end products can be adjusted from 30 to 325 meshes.

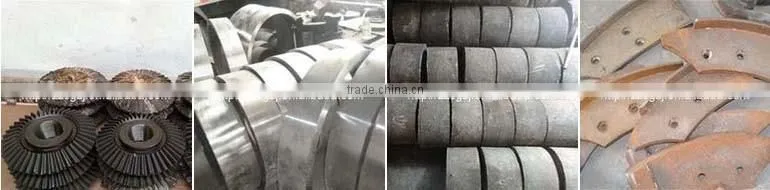

Factory direct sale ultrafine mill grinder in good quality Main Parts
Technical Parameters of Factory direct sale ultrafine mill grinder in good quality
Model |
6R4525 |
5R4119 |
4R3216 |
4R3016 |
3R3015 4R3015 |
3R2615 |
3R2115 |
3R1510 |
Particle size of feed(mm) |
≤30 |
≤25 |
≤25 |
≤25 |
≤20 |
≤20 |
≤15 |
≤15 |
Particle of finished product |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
Shift output at different material fine degree |
16-120 |
8-60 |
4-45 |
3-35 |
2-28 |
1.5-20 |
1-18 |
0.5-8 |
Rotate speed of central axis |
82 |
105 |
130 |
160 |
160 |
160 |
180 |
280 |
Inner diameter of Pulverizing ring (mm) |
1620 |
1270 |
970 |
880 |
830(800) |
780 |
650 |
410 |
Diameter of Pulverizing roller (mm) |
450 |
410 |
320 |
300 |
270 |
260 |
210 |
140 |
Height of Pulverizing roller(mm) |
250 |
190 |
160 |
160 |
150 |
150 |
150 |
100 |
main motor |
y315m-4-32 |
y280s-4-75 |
y225s-4-37 |
y225m-8-30 |
y225m-8-22 |
y225s-8-18.5 |
y200L-8-15 |
y160m-6-7.5 |
Fan motor |
y315m-4-132 |
y250m-4-75 |
y200L-4-37 |
y180m-4-18.5 |
y160L-4-18.5 |
y160L-4-15 |
y160m-4-11 |
y132s-4-5.5 |
Motor |
y160m-4-11 |
yc200-4-7.5 |
yc120-4-5.5 |
y112m-6-2.2 |
y112m6-2.2 |
y112m-6-2.2 |
y112m-6-2.2 |
y90L-6-1 |
Professional Manufacturer and Exporter of Factory direct sale ultrafine mill grinder in good quality in China.
Zhengzhou Shuguang Heavy Machinery Co., Ltd. is a professional manufacturer of Factory direct sale ultrafine mill grinder in good quality, with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in industry and mining industry and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. SHUGUANG is China Top suppliers and manufacturers of Factory direct sale ultrafine mill grinder in good quality,
1.Factory Size : 10,000-30,000 square meters, No. of Production Lines : 10
2.More than 20 years manufacturing experience
3.70% products exported in more than 130 countries
4 Long life after-service for SHUGUANG BRAND machine.
Q: Are you trading company or manufacturer of Factory direct sale ultrafine mill grinder in good quality ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide free design solution?
A: Yes, we could offer design solution for free.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
