Mining Machinery Crusher Vsi Vertical Shaft

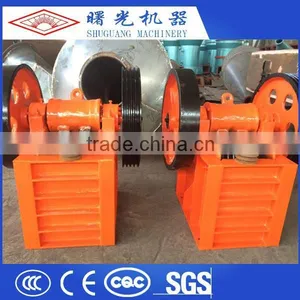

Mining Machinery Crusher Vsi Vertical Shaft thumbnail-1
Mining Machinery Crusher Vsi Vertical Shaft photo-1
US$ 1,300 - 28,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Jaw Crusher, Jaw Crusher
Application:
Metallurgical industry,mining,building materials,highway,railway etc., Metallurgical industry,mining,building material,highway,railway etc.
Contact Supplier Request Quote Chat Now
Zhengzhou Shuguang Heavy Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Jaw Crusher, Jaw Crusher
Application Metallurgical industry,mining,building materials,highway,railway etc., Metallurgical industry,mining,building material,highway,railway etc.
Motor Type AC Motor
Power(W) 55
Capacity(t/h) 50-180
Place of Origin Henan, China
Brand Name Shuguang
Model Number PE-600*900
Dimension(L*W*H) 2190mm*2206mm*2300mm
Weight 17tons
Certification CE & ISO
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

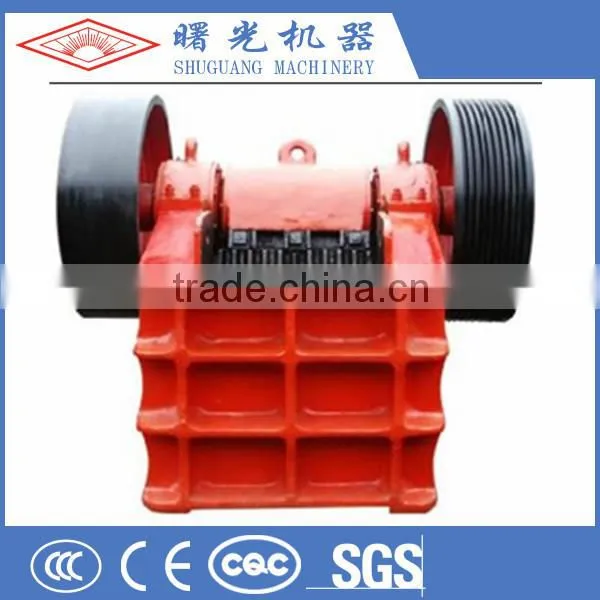

mining machinery crusher vsi vertical shaft

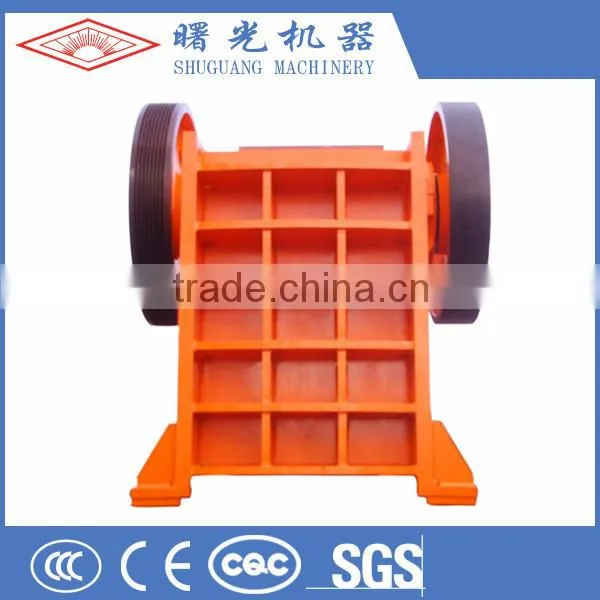

mining machinery crusher vsi vertical shaft

mining machinery crusher vsi vertical shaft



mining machinery crusher vsi vertical shaftmining machinery crusher vsi vertical shaft

The Technical Datas:

Model

Feed size(mm)

Max feeding size(mm)

Production(t/h)

Speed(r/min)

Power(kw)

Wight(t)

Dimensions (mm)

PE-150*250

150*250

125

1-3

250

5.5

0.8

720*660*850

PE-200*300

200*300

180

2-6

260

7.5

1.2

910*750*990

PE-200*350

200*350

180

3-10

260

11

1.5

1000*870*990

PE-250*400

250*400

210

5-20

300

15

2.7

1300*1090*1270

PE-400*600

400*600

340

16-60

275

30

7

1730*1730*1630

PE-500*750

500*750

425

40-110

275

55

12

1980*2080*1870

PE-600*750

600*750

500

80-240

275

55

15.8

2070*2000*1920

PE-600*900

600*900

500

50-180

250

55

17

2190*2206*2300

PE-750*1060

750*1060

630

110-320

250

90-110

29

2660*2430*2800

PE-800*1060

800*1060

640

130-330

250

110

29.8

2710*2430*2800

PE-830*1060

830*1060

650

150-336

250

110

30.7

2740*2430*2800

PE-870*1060

870*1060

660

190-336

250

110

31.5

2810*2430*2800

PE-900*1060

900*1060

685

230-390

250

110

33

2870*2420*2940

PE-900*1200

900*1200

750

220-450

200

110

52

3380*2870*3330

PE-1000*1200

1000*1200

850

315-500

200

110

55

3480*2876*3330

PE-1200*1500

1200*1500

1020

400-800

180

160

100.9

4200*3300*3500

PEX-150*750

150*750

120

8-25

320

15

3.8

1200*1530*1060

PEX-250*750

250*750

210

13-25

330

30

5.5

1380*1750*1540

PEX-250*1000

250*1000

210

16-52

330

30

7

1560*1950*1390

PEX-250*1200

250*1200

210

20-61

330

37

9.7

2140*1660*1500

PEX-300*1300

300*1300

250

16-105

300

55

15.6

2720*1950*1600



The Feature:



1.big broken ratio

duct size is even

3.simple structure

4.reliable operation

5.maintenance is simple and convenient

st is economic and so on.





The Application: For crushing various materials with compression resistance less than 350Mpa in the fields of

metallurgical industry,mining,building materials,highway,railway,chemical industry etc.

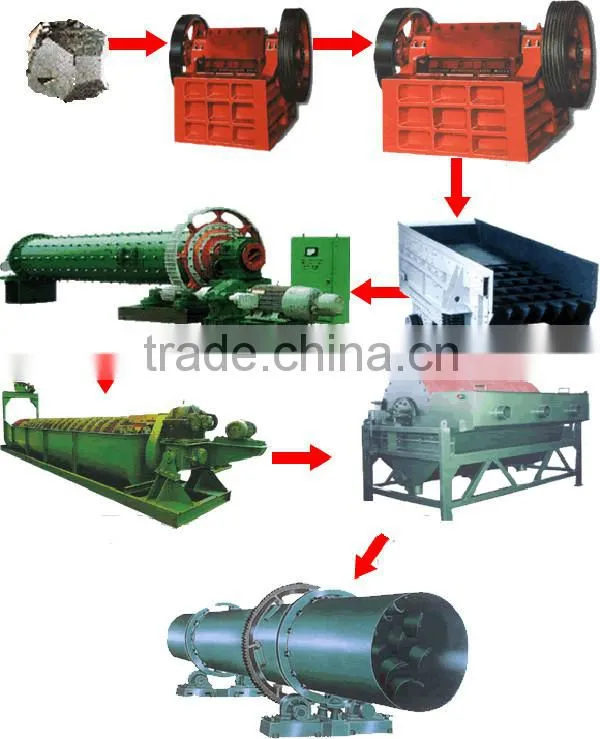

mining machinery crusher vsi vertical shaftmining machinery crusher vsi vertical shaftmining machinery crusher vsi vertical shaft

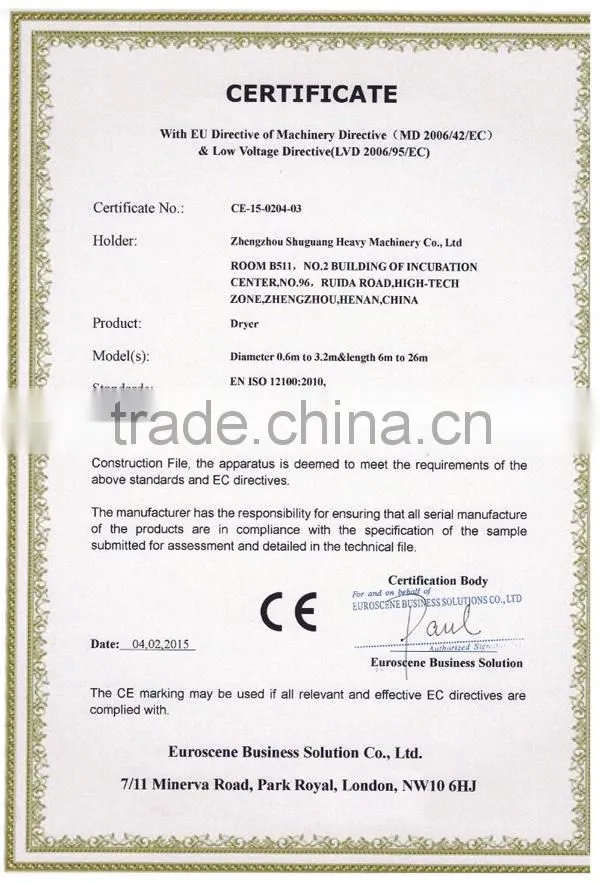

The Certification:

mining machinery crusher vsi vertical shaft

The Delivery:

mining machinery crusher vsi vertical shaftmining machinery crusher vsi vertical shaft

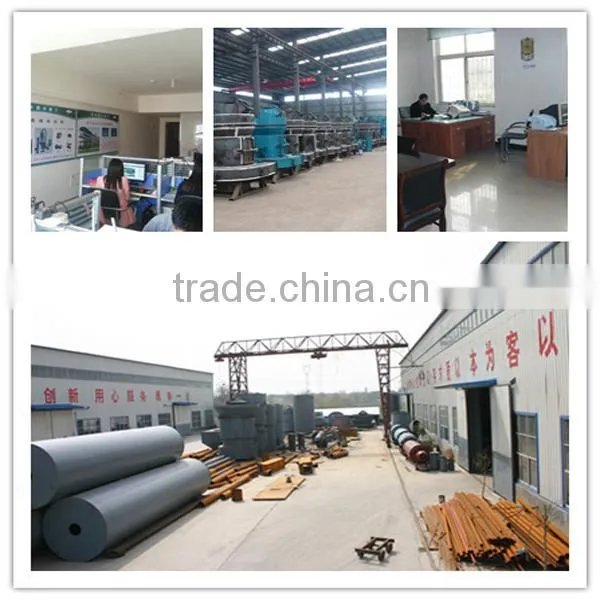

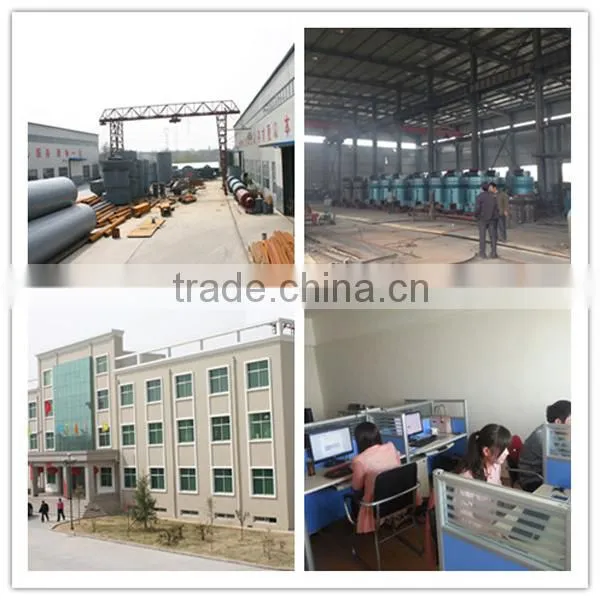

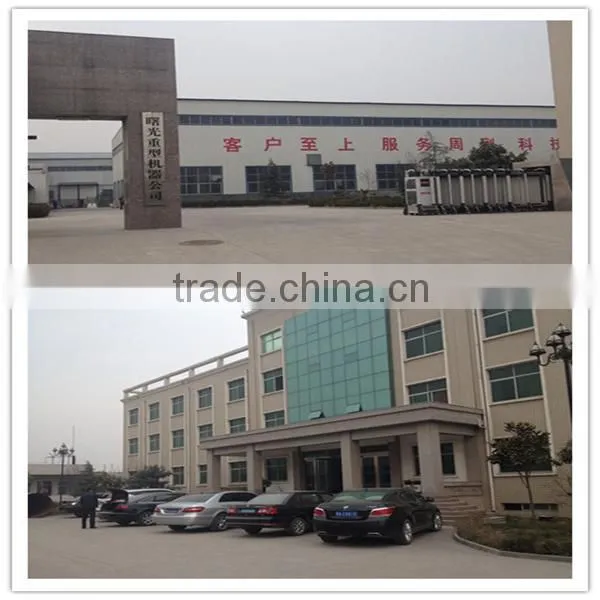

About US:

Zhengzhou Shuguang Heavy Machinery Co.,Ltd. is founded in 1993,which is a specialized enterprise dedicated to R&D and production of the Raymond mill,calcium powder machine,all kinds of crushing machines and mixer.Our company has excellent technical equipment and dozens of various machinery and equipment.Dozens of excellent technical employees are responsible for R&D and production of the company’s products.

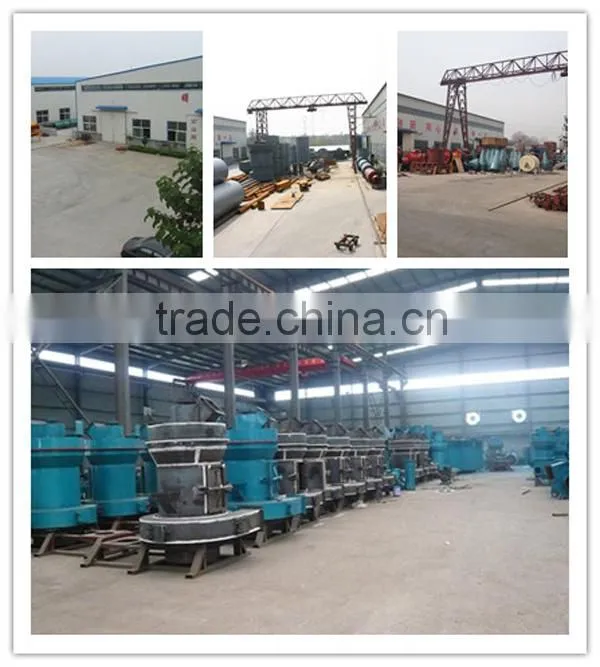

mining machinery crusher vsi vertical shaftmining machinery crusher vsi vertical shaftmining machinery crusher vsi vertical shaftmining machinery crusher vsi vertical shaft



If you are interested in our jaw crusher  , pls contact us asap, besides,pls tell me some information as follows in your enquiry:



1:what raw material do you want to crush?



2:what size is your raw material?



3:what is your capacity?



4: About the final product , what is your requirements ?
