Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Crusher > Professional Design Portable Screening Plants For Stone Crushing Plant

Professional Design Portable Screening Plants For Stone Crushing Plant

Name: Professional Design Portable Screening Plants For Stone Crushing Plant
Brand: Shuguang
SKU: 106643147
Availability: InStock

Professional Design Portable Screening Plants For Stone Crushing Plant thumbnail-1

Professional Design Portable Screening Plants For Stone Crushing Plant photo-1

US$ 2,997 - 187,700 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Other, stone production line, Jaw Crusher,Impact Crusher etc.

Application:

ore,stone,coal,quarry,rock primary or secondary crushing stage, Mining,Quarry,Chemical Industry

Contact Supplier Request Quote Chat Now

Zhengzhou Shuguang Heavy Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao or any port as the customer requires

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Other, stone production line, Jaw Crusher,Impact Crusher etc.

Application ore,stone,coal,quarry,rock primary or secondary crushing stage, Mining,Quarry,Chemical Industry

Motor Type AC Motor

Power(W) it depends on the model

Capacity(t/h) 10-1000tph, 1-1000

Place of Origin Henan, China

Brand Name Shuguang

Model Number Stone production line

Dimension(L*W*H) Depends on the model

Weight As required, 20t

Certification CE & ISO

Warranty one year, 12 months

After-sales Service Provided Engineers available to service machinery overseas

Professional Design Portable Screening Plants For Stone Crushing Plant

Stone Crushing Plant Description

Stone Crushing Plant includes vibrating feeder, jaw crusher, impact crusher, vibratingscreen, belt conveyor and centrally electric controlling system, etc.The designed capacity of stone crushing machinery equipment production line is from 50t/h to 500t/h. To meet customers specific requirement, we can also add other equipments such as cone crusher, dust catcher on the production line.

Stone Crushing Plant Working Process:
Big materials are fed to the jaw crusher of stone crushing machinery equipment production line evenly and gradually byvibrating feeder through a hopper for primary crushing. After first crush, the material will transferred to impact crusher by belt conveyorfor secondary crush; the crushed materials will then transferred tovibrating screen for separating.This step is very important in stone crushing machinery equipment production line. After separating, the parts that can meet standard will be transferred away as final products, while the other parts will be returned to impact crusher, thus forming a closed circuit. Size of final products can be combined and graded according tocustomers specific requirement. We can also equip dust catcher systemto protect environment.

Stone Crushing Plant Features

1. V-shaped structure crushing cavity is able to meet a big feeding.
2. Movable jaw assembly adopts a high-quality steel casting and heavy eccentric shaft has also adopted forging billet for processing.
3. Use of finite element analysis technology helps to reach both light weight and high reliability.
4.Equipped with wedge adjustment devices, enable to realize automatic control and stepless adjustment.

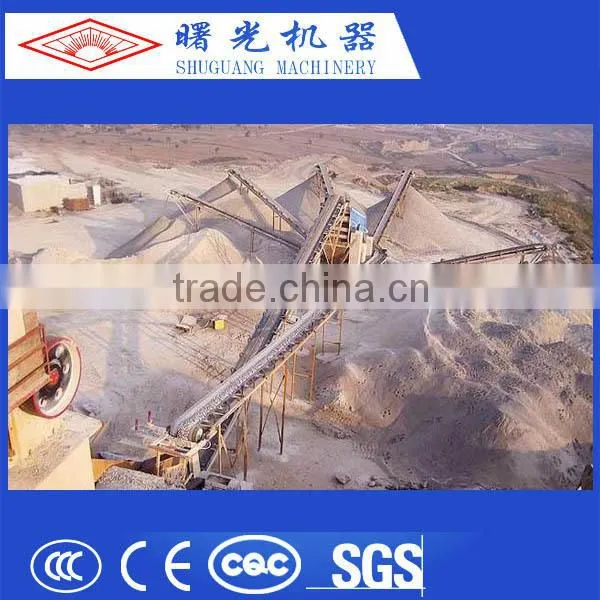

Stone Crushing Plant Photo

Stone Crushing Plant Technical Parameters

Maximum feeding size (mm)	Capacity (t/h)	Main equipment Model/Spec./Quantity
Maximum feeding size (mm)	Capacity (t/h)	Vibrating feeder	Jaw crusher	Impact crusher	Vibrating screen	Belt conveyor (m)	Installed power (kw)
340	30	GZD2511(3kw)	PE400×600(30kw)	PF1007(45kw)	3YZ1236(15kw)	60-90(20kw)	120
340	50	GZD3117(10kw)	PE400×600(30kw)	PF1007(45kw)	3YZ1545(22kw)	100-130(30kw)	140
420	80	GZD3617(10kw)	PE500×750(55kw)	PF1010(75kw)	3YZ1548(22kw)	130-160(30kw)	200
480	100	GZD4321(13kw)	PE600×900(75kw)	PF1210(130kw)	3YZ1548(22kw)	140-180(40kw)	280
560	150	GZD4321(13kw)	PE750×1060(90kw)	PF1210(130kw)	3YZ1845(22kw)	200-240(50kw)	300
630	200	GZD4321(13kw)	PE900×1060(110kw)	PFB1212(140kw)	3YZ2050(30kw)	200(40kw)	350
630	250	GZD5027(17kw)	PE900×1060(110kw)	PFB1214(180kw)	3YZ2050(30kw)	200(40kw)	400
630	300	GZD5027(17kw)	PE900×1200(110kw)	PFB1214(180kw)	3YZ2160(30kw)	250(50kw)	450
700	350	GZD5027(17kw)	PE1000×1200(132kw)	PFB1315(250kw)	3YZ2160(30kw)	250(50kw)	500
700	450	GZD6223(28kw)	PE1000×1200(132kw)	PFB1214/2(300kw)	3YZ2145/2(60kw)	350(60kw)	600
