Home > Products > Paver brick/block Machine > Automatic Concrete Paving Block Machine

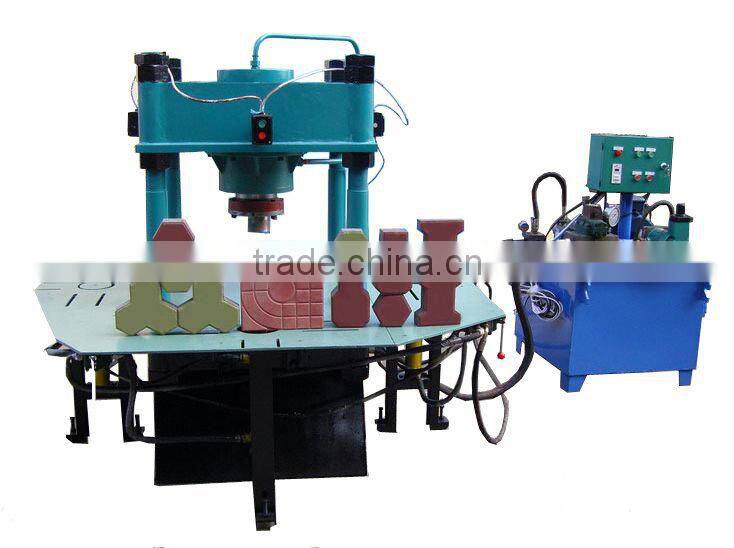

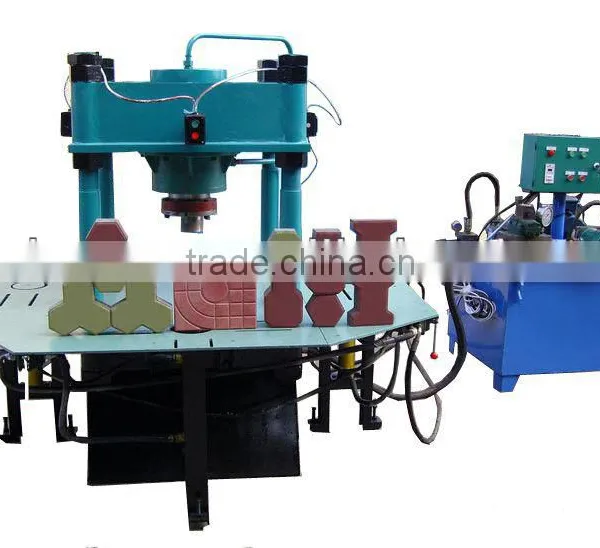

Automatic Concrete Paving Block Machine
US$ 6,000 - 20,000
/ Set
1 Set(Min. Order)
- Ningbo/Shanghai
- T/T Money Gram Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Paving Block Making Machine | |
| Brick Raw Material | Cement | Processing | Brick Molding Machine | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 100set/month | Place of Origin | Zhejiang, China | |
| Brand Name | WX | Model Number | WX-150B | |
| Voltage | 380V | Power | 11KW | |
| Dimension(L*W*H) | 1900X1900X1860MM | Certification | ISO9001 | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Hydraulic pressure2.German technology
3.ISO9001,SGS certificate
4.Durable,easy to operate
5.Environmental protection
Product Description
Paving brick machine WX-150A, also known as a street color brick machine, the raw material can be sand, slag, industrial residue etc., bricks can be pressed to finished cement bricks. The machine can make different kinds of paving bricks like color bricks, paving stone bricks, lawn bricks, water permeable bricks etc.by different mould.These bricks can pave road, street, plaza to improve and beautify urban ecological environment to protect water and soil from losses.
Technology Parameters
| Hydraulic Pressure | 150Tons |
| The oil pump pressure | 31.5MPa |
| Voltage | 220v/380v |
| Total Power | 18.5KW |
| Dimension of host machine | 1900mmx1900mmx1860mm |
| Total Weight | 2500kg |
| Max Specification | 500mmx500mmx50mm |
| Workshop Area | 60m2 |
| Output Capacity | 2500-5500pcs/day(Road face brick) |
| 1500-2500pcs/day(Curbs brick) |
Basic Scheme
| NO. | Name | Quantity |
| 1 | Brick main machine | 1 Set |
| 2 | Control box | 1 Set |
| 3 | Hydraulic station | 1 Set |
| 4 | Concrete mixer | 1 Set |
| 5 | Standard mould | 1 Set |
| 6 | Brick trolley | 1Set |
| 7 | Tools | 1 Set |
Paver Brick Samples
Contact Us
- Hangzhou Weixing Building Material Machinery Co., Ltd.
- Contact nameJesse Wang Chat Now
- Phone86-0571-83867628
- AddressXinfeng Village, Xintang Street, Xiaoshan Dist., Hangzhou, Zhejiang, China
