Place of Origin Guangdong, China
Brand Name SH
Model Number SHFP-GE-LX

Chinese 1310nm 20km dual fiber single mode 1.25g optical module manufacture

Product Description

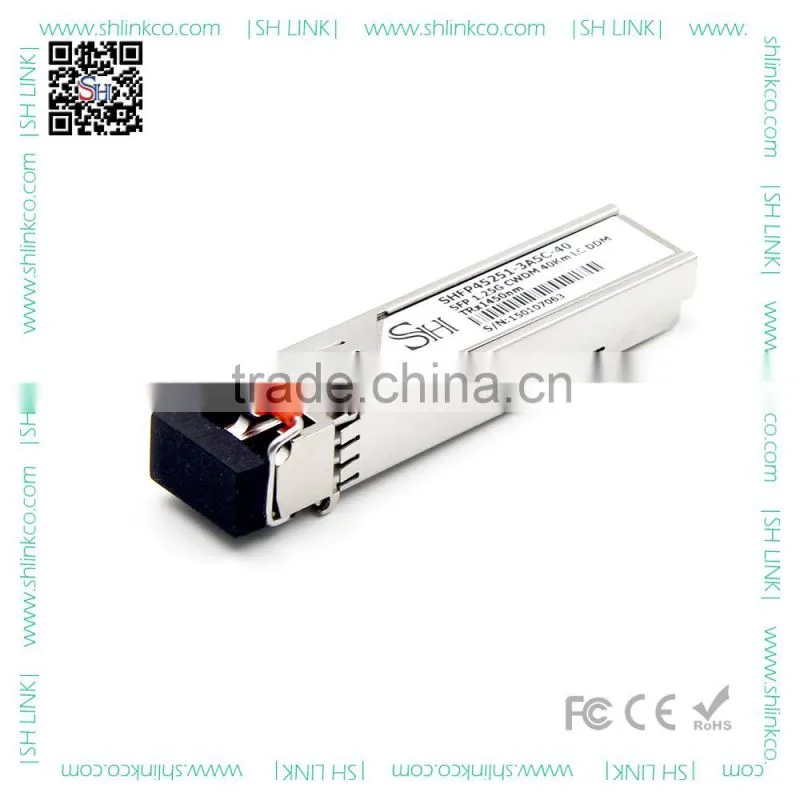

SHFP-GE-LX high performance, cost effective single mode duplex lc 1310nm 20km 1.25g sfp optical transceiver complies with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). It adopts high-performance 1310nm FP transmitter and high-sensitivity PIN receiver, provides up to 15dB link budge for Gigabit Ethernet applications up to 20km on single mode fiber.

Features
  • Up to 1.25Gb/s Data Links
  • Hot-Pluggable
  • Duplex LC connector
  • 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
  • Power Supply :+3.3V
  • Power consumption<1W
  • Temperature Range: 0~ 70°C, -40°C to 85°C/-5°C to 85°C available
  • RoHS compliant
Application
  • Metro/Access Networks
  • 1.25 Gb/s 1000Base-LX Ethernet
  • 1G Fibre Channel
  • Other Optical Links
  • Compatible with many switches,such as:

Chinese 1310nm 20km dual fiber single mode 1.25g optical module manufacture

Ordering Information

Part Number

Data Rate

Distance

Wavelength

Laser

Fiber

DDM

Temperature

Connector

SHFP-GE-LX

1.25Gb/s

20km

1310nm

FP/PIN

SM

Yes

0~ 70°C

Duplex LC

SHFP-GE-LX-E

1.25Gb/s

20km

1310nm

FP/PIN

SM

Yes

-5°C to 85°C

Duplex LC

SHFP-GE-LX-I

1.25Gb/s

20km

1310nm

FP/PIN

SM

Yes

-40°C to 85°C

Duplex LC

SHFP-GE-LX/n

1.25Gb/s

20km

1310nm

FP/PIN

SM

No

0~ 70°C

Duplex LC

SHFP-GE-LX/n-E

1.25Gb/s

20km

1310nm

FP/PIN

SM

No

-5°C to 85°C

Duplex LC

SHFP-GE-LX/n-I

1.25Gb/s

20km

1310nm

FP/PIN

SM

No

-40°C to 85°C

Duplex LC
Specifications

Parameter

Symbol

Min.

Typical

Max.

Unit

Note

Transmitter Section:

Center Wavelength

λc

1270

1310

1360

nm



Spectral Width(RMS)

σRMS





3

nm



Optical Output Power

Pout

-9



-3

dBm

1

Extinction Ratio

ER

8.2





dB



Optical Rise/Fall Time

tr / tf





260

ps

2

Relative Intensity Noise

RIN





-120

dB/Hz



Output Eye Mask

Compliant with  IEEE802.3 z (class 1 laser safety)



Receiver Section:



Optical Input Wavelength

λc

1260



1360

nm



Receiver Overload

Pol

-3





dBm

4

RX Sensitivity

Sen





-24

dBm

4

RX_LOS Assert

LOS A

-35





dBm



RX_LOS De-assert

LOS D





-25

dBm



RX_LOS Hysteresis

LOS H

0.5





dB



General Specifications:

Data Rate

BR



1.25



Gb/s



Bit Error Rate

BER





10-12





Max. Supported Link Length on 9/125μm SMF 1.25Gb/s

LMAX



20



km



Total System Budget

LB

15





dB

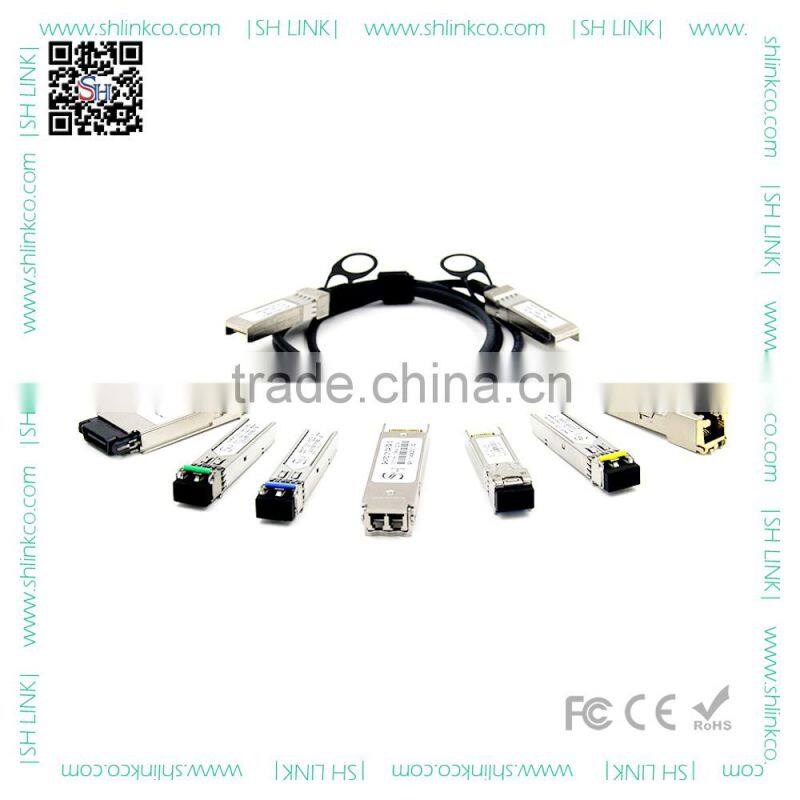

Products Show

Chinese 1310nm 20km dual fiber single mode 1.25g optical module manufactureChinese 1310nm 20km dual fiber single mode 1.25g optical module manufacture

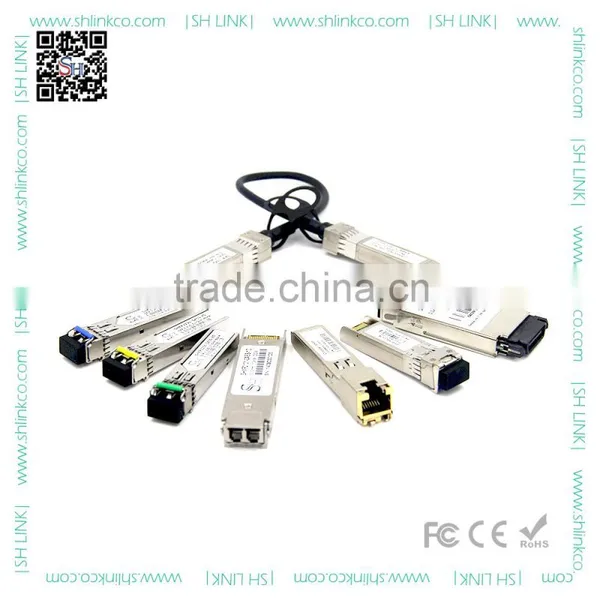

Other Optical Transceiver:

Chinese 1310nm 20km dual fiber single mode 1.25g optical module manufactureChinese 1310nm 20km dual fiber single mode 1.25g optical module manufactureChinese 1310nm 20km dual fiber single mode 1.25g optical module manufactureChinese 1310nm 20km dual fiber single mode 1.25g optical module manufactureChinese 1310nm 20km dual fiber single mode 1.25g optical module manufactureChinese 1310nm 20km dual fiber single mode 1.25g optical module manufactureChinese 1310nm 20km dual fiber single mode 1.25g optical module manufactureChinese 1310nm 20km dual fiber single mode 1.25g optical module manufacture

Shipping

Various types of transportation are available, and we will arrange one according to your request.

Chinese 1310nm 20km dual fiber single mode 1.25g optical module manufacture



FAQ

1. How about your products?

    Our products have adopted certifications of CE, FCC and RoHS, which are highly-efficient and at reasonable prices.

2. How about your lead time?

    It's 1~3 days for samples and 5~7 days for bulk orders after payments received.

3. How can I pay?

    We accept Bank T/T, CASH, Paypal, Western Union...

4. How about your service?

    We provide OEM, ODM and excellent after-sale services. If you have any questions, contact us! We provide support 24/7.
