Hot sellin competitive price lc connector 850nm 550m 1.25g sfp module
SHFP-GE-SX high performance, cost effective transceiver complies with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). It adopts high-performance 850nm VCSEL transmitter and high-sensitivity PIN receiver, provides up to 9dB link budge for Gigabit Ethernet applications up to 550m on 50/125μm multimode fiber.
- Up to 1.25Gb/s Data Links
- Hot-Pluggable
- Duplex LC connector
- 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
- Power Supply :+3.3V
- Power consumption<1W
- Temperature Range: 0~ 70°C, -40°C to 85°C/-5°C to 85°C available
- RoHS compliant
- Metro/Access Networks
- 1.25 Gb/s 1000Base-SX Ethernet
- 1G Fibre Channel
- Other Optical Links
- Compatible with many switches, such as:
Part Number |
Data Rate |
Distance |
Wavelength |
Laser |
Fiber |
DDM |
Temperature |
Connector |
SHFP-GE-SX |
1.25Gb/s |
550m |
850nm |
VCSEL/PIN |
MM |
Yes |
0~ 70°C |
Duplex LC |
SHFP-GE-SX-E |
1.25Gb/s |
550m |
850nm |
VCSEL/PIN |
MM |
Yes |
-5°C to 85°C |
Duplex LC |
SHFP-GE-SX-I |
1.25Gb/s |
550m |
850nm |
VCSEL/PIN |
MM |
Yes |
-40°C to 85°C |
Duplex LC |
SHFP-GE-SX/n |
1.25Gb/s |
550m |
850nm |
VCSEL/PIN |
MM |
No |
0~ 70°C |
Duplex LC |
SHFP-GE-SX/n-E |
1.25Gb/s |
550m |
850nm |
VCSEL/PIN |
MM |
No |
-5°C to 85°C |
Duplex LC |
SHFP-GE-SX/n-I |
1.25Gb/s |
550m |
850nm |
VCSEL/PIN |
MM |
No |
-40°C to 85°C |
Duplex LC |
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
Transmitter Section: | ||||||
Center Wavelength |
λc |
840 |
850 |
860 |
nm |
|
Spectral Width(RMS) |
σRMS |
|
|
0.85 |
nm |
|
Optical Output Power |
Pout |
-9 |
|
-3 |
dBm |
1 |
Extinction Ratio |
ER |
8.2 |
|
|
dB |
|
Optical Rise/Fall Time |
tr / tf |
|
|
260 |
ps |
2 |
Relative Intensity Noise |
RIN |
|
|
-120 |
dB/Hz |
|
Output Eye Mask |
Compliant with IEEE802.3 z (class 1 laser safety) |
|
||||
Receiver Section: |
|
|||||
Optical Input Wavelength |
λc |
770 |
|
860 |
nm |
|
Receiver Overload |
Pol |
0 |
|
|
dBm |
4 |
RX Sensitivity |
Sen |
|
|
-18 |
dBm |
4 |
RX_LOS Assert |
LOS A |
-29 |
|
|
dBm |
|
RX_LOS De-assert |
LOS D |
|
|
-19 |
dBm |
|
RX_LOS Hysteresis |
LOS H |
0.5 |
|
|
dB |
|
General Specifications: | ||||||
Data Rate |
BR |
|
1.25 |
|
Gb/s |
|
Bit Error Rate |
BER |
|
|
10-12 |
|
|
Max. Supported Link Length on 50/125μm MMF 1.25Gb/s |
LMAX |
|
550 |
|
m |
|
Total System Budget |
LB |
8 |
|
|
dB |
|

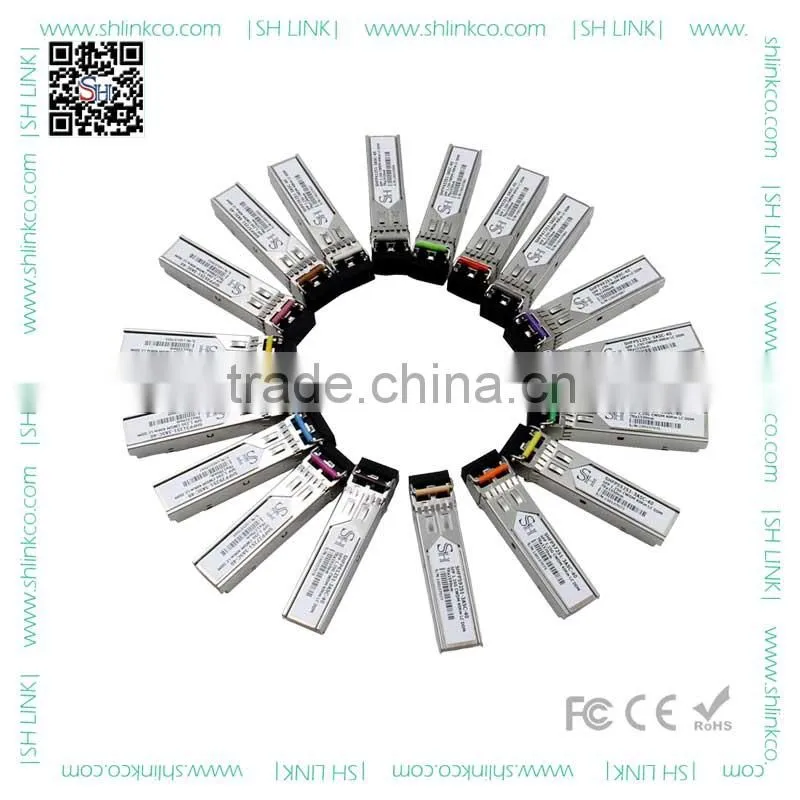

Other Optical Transceiver:
Various types of transportation are available, and we will arrange one according to your request.
1. How about your products?
Our products have adopted certifications of CE, FCC and RoHS, which are highly-efficient and at reasonable prices.
2. How about your lead time?
It's 1~3 days for samples and 5~7 days for bulk orders after payments received.
3. How can I pay?
We accept Bank T/T, CASH, Paypal, Western Union...
4. How about your service?
We provide OEM, ODM and excellent after-sale services. If you have any questions, contact us! We provide support 24/7.
