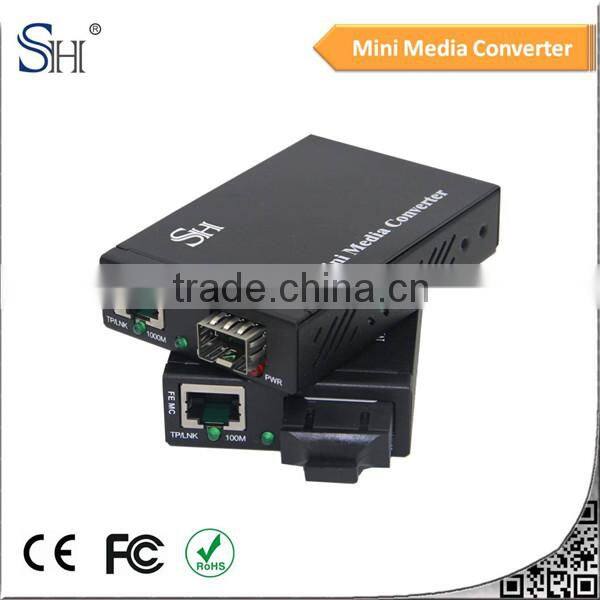

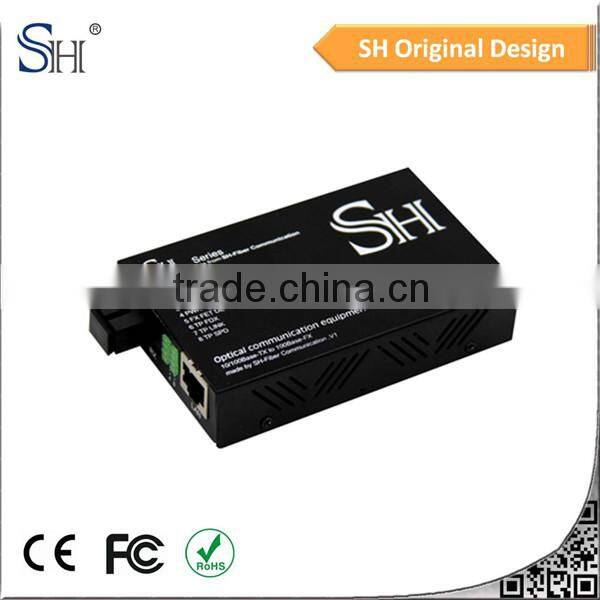

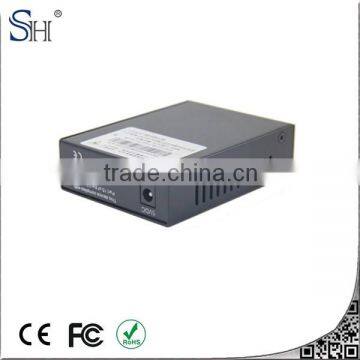

Cost-saving mutimode surveillance specified SC 12v dc media converter
Overview
SH-311 series Ethernet media converter convert 10/100/1000Base-T elect0rical signals with 1000Base-FX optical signals. It dramatically connects the existing copper networking with the booming fiber optic network which greatly saves the project cost. It provides an economic way to extend the network transmission distance from 100m over copper cables to 100km over fiber optical cable. SH311 full series of feature rich media converters provides options in multi mode/single mode fiber media, 500m~100km transmission distance, SC/FC/ST connector and more to meet the different application and budget requirements. SH-311 series media converter is widely used in telecommunication, transportation, security transmission...
Features
> Auto 10/100/1000Base-T
> Support1000Base-FX
> Auto full-duplex and half-duplex
> Auto MDI/MDI-X
> Store-and-forward transmission
> Comply with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX
> Support extra long WLAN pack
> Multimode and single mode optional
> Connector: SC (FC/ST optional)
> Power: DC5V
Specifications
Item |
Specifications |
Data Rate |
Copper: 10/100/1000Mbps; Fiber: 1000Mbps |
Standard |
IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX |
Wavelength |
850nm/1310nm/1550nm |
Transmission distance |
MMF: 550m (50/125μm), 220m (62.5/125μm); SMF: 20~100km; Cat5: 100m |
Conversion means |
Store and Forward mode |
Electrical Connector |
RJ45 |
Fiber Connector |
SC (ST or FC optional) |
LED indicator |
PWR (power supply), TX LINK/ACT (TP cable link/act), FX LINK/ACT (Fiber link/act), FDX (full duplex), TX 1000M (TP 100Mbps), FX 1000M (Fiber 100Mbps) |
Power supply |
DC 5V |
Power consumption |
<5W |
Operating temperature |
0 ~ 40℃ |
Operating humidity |
90% max, non-condensing |
Storage temperature |
-20 ~ +85℃ |
Dimensions |
71 (W) x 26 (H) x 94 (L) (mm) |
Application
Order Information
Part Number |
Description |
SH-311M-500 |
10/100/1000M Gigabit Ethernet Media Converter |
SH-311S-xx |
10/100/1000M Gigabit Ethernet Media Converter xx: 20/40 (km) |
SH-311S-xx |
10/100/1000M Gigabit Ethernet Media Converter xx: 60/80/100 (km) |
Payment
Delivery
Delivery time: 1-3 days for samples; 4-10 days for bulk orders.
Logistics mode chosen according to customers.
Product Show
FAQ:
1. Who are you?
We are SH LINK Co.,ltd, founded in 2003, delicated to fiber optical products sales and manufacturer for security and surveillance and telecom field.
2. What's your lead time?
1-3 days for samples; 5-7 days for bulk order.
3. Certifications from you?
CE FCC RHOS
4. What's your price and quality?
Welcome inquiry, cost-effective products are ready for you! For more questions, we are always here to support you!
