Trade Assurance single mode 20km fiber optic media converter price Quality Choice

FOB Price

USD $10 - $20 / Piece

1 Piece(Min.Order)

Supply Ability 6000 Piece / Pieces per Month
Port Shenzhen/Hongkong
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

SH-S111

Product Description

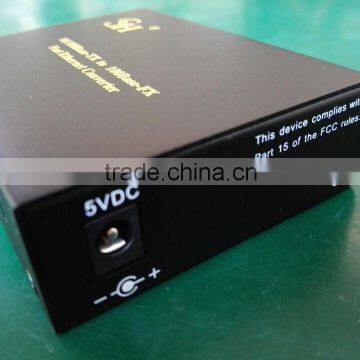

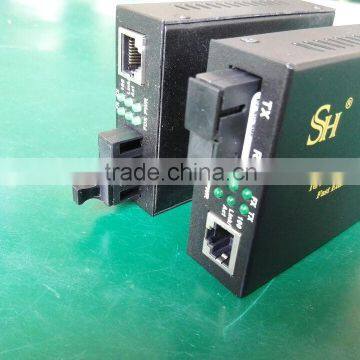

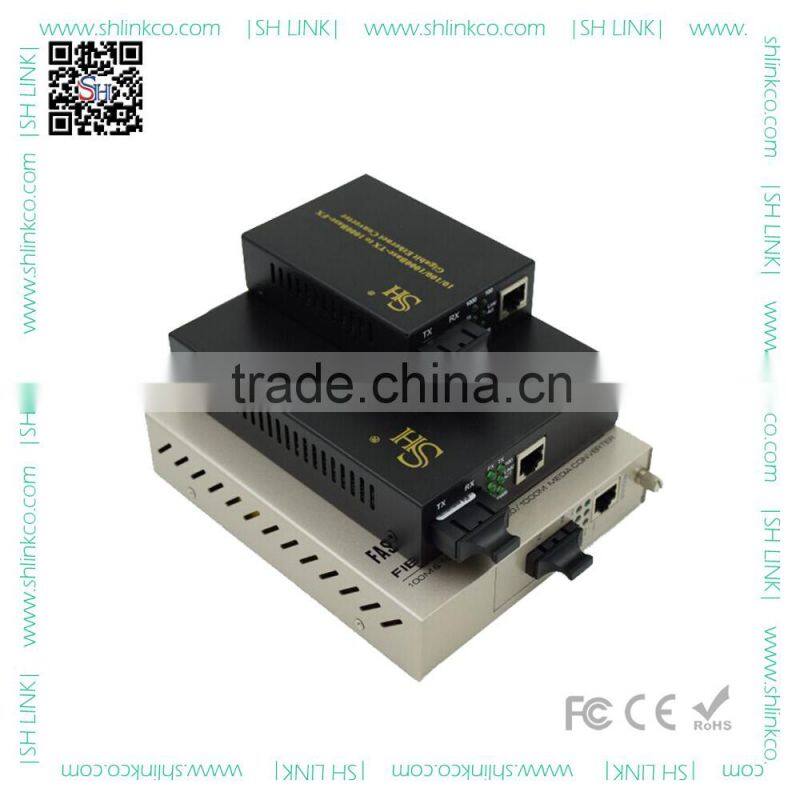

Trade Assurance single mode 20km fiber optic media converter price

Features

SH-S111 series Ethernet WDM media converter convert 10/100Bas-T electrical signals with 100Base-FX optical signals. It converts the signals only over one-core fiber, which greatly saves the cabling cost. It dramatically connects the existing copper networking with the booming fiber optic network which greatly saves the project cost. It provides an economic way to extend the network transmission distance from 100m over copper cables to 100km over fiber optical cable. SH-S111 full series of feature rich media converters provides options in 20km~100km transmission distance, SC/FC/ST connector and more to meet the different application and budget requirements. SH-S111 series media converter is widely used in telecommunication, transportation, security transmission...

> Auto 10/100Base-T

> Supporting 100Base-FX or STM-1

> Auto full-duplex and half-duplex

> Auto MDI/MDI-X

> Store-and-forward or cut-through transmission

> Comply with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX

> Connector: SC (FC/ST optional)

> WDM over single core fiber single mode

> Power: DC5V

Specification

Item	Specifications
Data Rate	Copper: 10/100Mbps; Fiber: 100Mbps
Standard	IEEE802.3 10Base-T, IEEE802.3u,100Base-TX/FX, IEEE802.3x Flow Control
Wavelength	1310nm & 1550nm
Transmission distance	SMF: 20~120km; Cat5: 100m
Conversion means	Store and Forward mode or Cut-Through mode
Electrical Connector	RJ45
Fiber Connector	SC (ST or FC optional)
LED indicator	PWR (power supply), TP/LINK (TP cable link/act), FX/LINK (Fiber link/act), 100M (TP 100Mbps)
Power supply	DC 5V
Power consumption	<3W
Operating temperature	0 ~ 40℃
Operating humidity	90% max, non-condensing
Storage temperature	-20 ~ +85℃
Dimensions	71 (W) x 26 (H) x 94 (L) (mm)

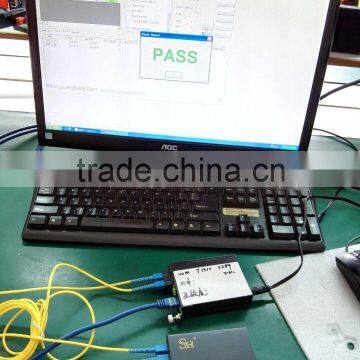

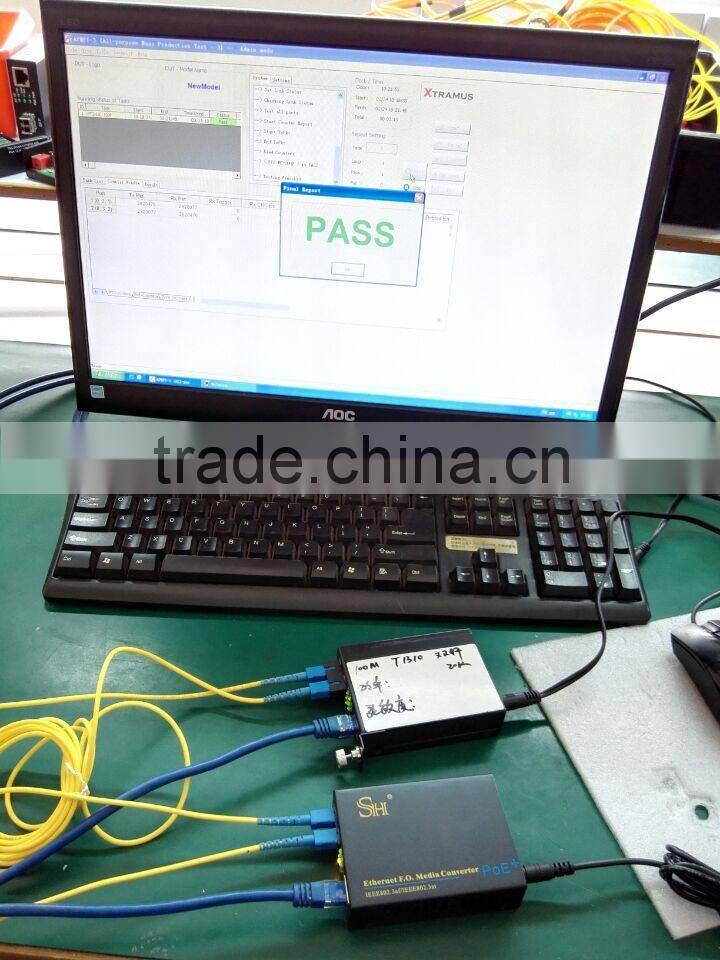

Product and Test

Ordering and Payment

Usual payment T/T Paypal etc, are availble . Cash also ok! In addition, Trade Assurance on Alibaba is also available.

Part Number

Description

SH-S111-xx/T

10/100M Fast Ethernet Media Converter, Transmitter
10/100Base-T to 100Base-F, TX1310/RX1550nm, WDM, SC, External power adaptor

xx: 20/40/60/80/100 (km)

SH-S111-xx/R

10/100M Fast Ethernet Media Converter, Receiver
10/100Base-T to 100Base-F, TX1310/RX1550nm, WDM, SC, External power adaptor

xx: 20/40/60/80/100 (km)

Packaging & Shipping

There are 3 types of packing items in SH LINK.

1. Neutral packing without brand; 2. SH default packing; 3. OEM, let's talk more!

Delivery time: 1-3 days for samples; 4-10 days for bulk orders.

Logistics mode chosen according to customers.

FAQ

1. Can you offer samples?

Yes, sample is available.

2. What's your lead time?

1-3 days for samples; 5-7 days for bulk order.

3. Certifications from you?

CE FCC RHOS etc.

4. Do you have MOQ?

There is no requirement for MOQ in SH LINK.

5. What's your price and quality?

SH LINK still do best to serve customers. Cost-effective products are supported! Let's talk more for details!
