                      Weld pipe roll forming machine—steel pipe, carbon pipe mill





Product Description

The steel pipe, carbon pipe mill is intended for manufacturing of round pipe of Φ10mm-Φ127mm with thickness of 0.5mm–5mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths. Finished product will be of round, square or rectangular pipe.

Weld pipe roll forming machine-steel pipe, carbon pipe mill





Weld pipe roll forming machine types:
For saving energy and cost of making carbon steel pipe or steel pipe, we divided the pipe to the following types:

Welded pipe machine HG 32
Wall thickness from 0.4-2.5mm
Pipe diameter: 10-45mm
Round pipe: Max diameter pipe-45mm diameter. Min diameter-10mm
Square pipe: Max diameter pipe—35x35mm Min size 10x10
Rectangle: Max diameter for example: 30x40mm 10x10mm

Welded pipe machine HG50
Wall thickness from 0.5-3mm
Pipe diameter from 10-60
Round pipe: Max diameter pipe-60mm diameter. Min 10mm diameter
Square pipe: Max diameter pipe—47x47mm Min square pipe 10x10mm
Rectangle: Max diameter for example: 30x60mm Min is 10x10mm





Welded pipe machine HG76
Wall thickness from 1.0-3.5
Pipe diameter from 20-89
Round pipe: Max diameter pipe-90mm diameter. Min is 20mm diameter
Square pipe: Max diameter pipe—70x70mm Min is 20x20mm
Rectangle: Max diameter for example: 50x90, 40x100, 30x110mm Min 20x20mm


Welded pipe machine HG127
Wall thickness from 1.0-4.0
Diameter from 20-127mm
Round pipe: Max diameter pipe-127mm diameter. Min is 20mm diameter
Square pipe: Max diameter pipe—100x100mm Min is 20x20 diameter
Rectangle: Max diameter for example: 110x90, 800x1200, 70x130mm Min is 20x20 diameters.

II. The technical flow of the production line
{SteelTape}→→ Double-head un-coiler →→Strip-head Cutter and welder→→
Spiral Accumulator→→Forming section(Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller)+ De-burr frame →→Cooling unit →→ Sizing unit and straightened →→Flying saw under computer-control →→ Run-out table
III. Basic conditions:
b) Steel Pipe Specification
1. Material: Low Carbon steel
2. Steel Tape: Inner diameter: Φ470-510mm
Outer diameter: Φmax=1500mm
Strip steel width: 40mm-160mm
Strip steel thickness: 0.5mm-2.5mm
The maximum weight: 1.0 tons
c) Electricity
1. Dynamic power: AC380V±10%, 3phases, 50Hz±1.0%
2. Control Power: AC220V±10%, one phase, 50 Hz ±1.0%
d) Electric installed capacity: appro. 250KW
e) Cooling water
1. Reservoir for High Frequency equipment: 15 m³, one set
2. Reservoir for circulating cooling water: 15 m³, one set
f) Compressed air
1. Pressure: 0.4Mpa
2. Flow: 0.5m3/h
g) Production capacity
Annual output: 10000 ton, according to the yearly working days,daily working hours and the products.
h) Line speed: 30-90m/min
IV. Equipment makeup and main parameters of single unit:

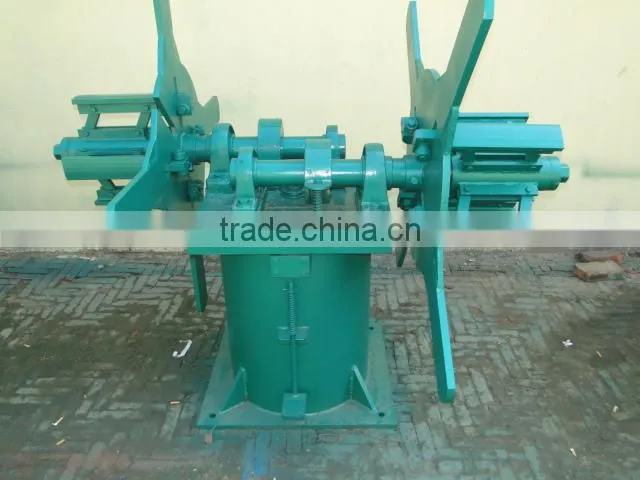

1. Double-head un-coiler
1.1. Briefing: Rotary type to change coils easily, with a pneumatic brake
1.2. Parameters:
- Coil width: max.160mm
- Coil OD: max. Ø1500mm
- Coil ID: Ø 470- Ø 510mm
- Coil weight: max. 1.0 tons
1.3. Mandrel expansion by Pneumatic
1.4. Mandrel position rotation shall be manual
1.5. Pneumatic brake
Weld pipe roll forming machine-steel pipe, carbon pipe mill

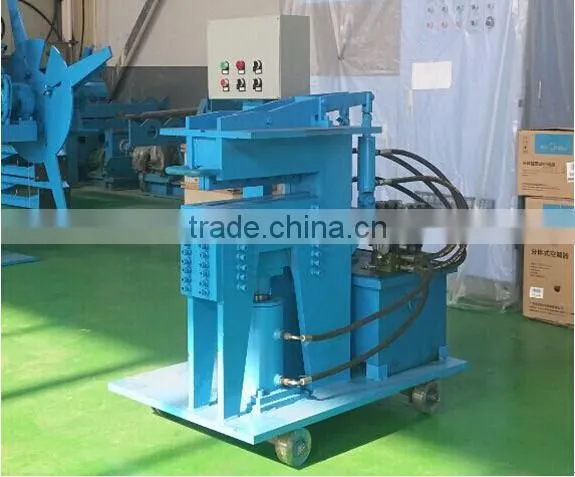

2. Shearing & butt welding machine
2.1 Hydraulic shearing parameters machine:
- Cutting by hydraulic
- Width: ≤160mm
- Thickness: ≤2.0mm
2.2 Butt welding machine by manual
- welding machine
Weld pipe roll forming machine-steel pipe, carbon pipe mill

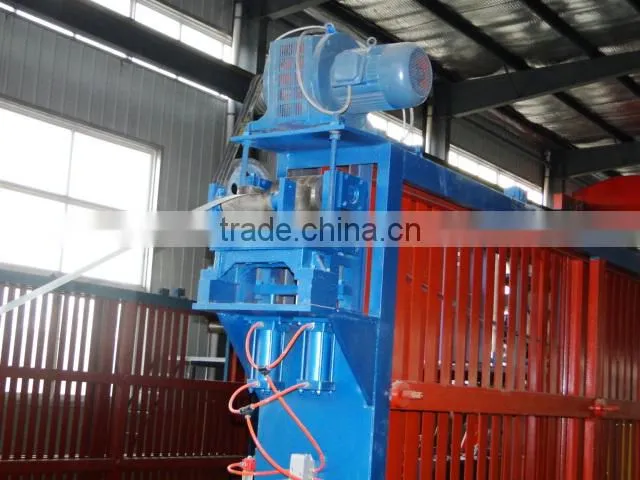

3. Horizontal spiral accumulator
3.1 Low bracket: 1 set
3.2 Revolver: 1 set
3.3 7 rollers Flattening unit: 1 set
3.4 2 rollers feeding: 1 set
3.5 Accumulator: 1 set
- Feeding speed: Max.200m/min
- Storing capacity: 500meter -700 meter
3.6 High bracket: 1 set

Weld pipe roll forming machine-steel pipe, carbon pipe mill

Cage loop
3.1 Feeding speed: 200m/min
3.2 Pinch roll drive: 7.5 KW AC motor with gear box
3.3 Pinch roll Dia.: 150mm
3.4 Storage: 300-400m

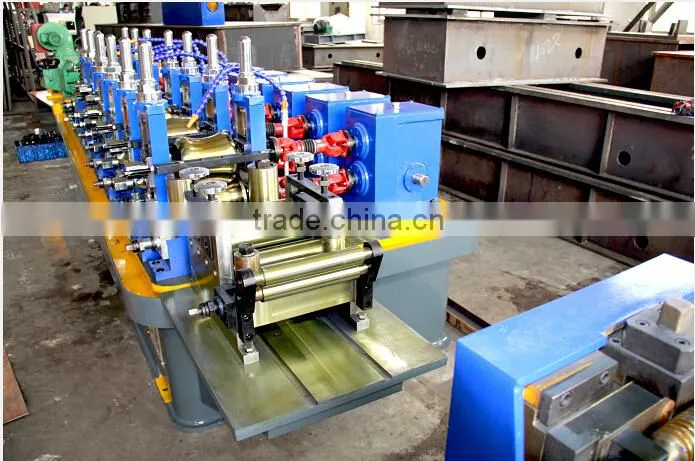

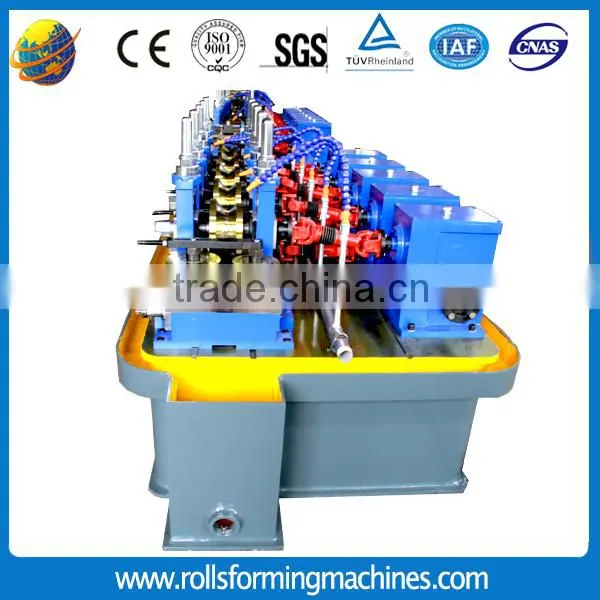

4. Forming & sizing section
4.1 Forming mill gearbox, universal joint
4.1.1 Mill entry flattener by five-roll passive levelling, one pair of sending roll, two pairs of vertical roll
4.1.2 Forming mill consists of:
- Driven stand: 7 sets (Horizontal)
- Driven stand shaft: Ø45mm
- Material of shaft: 40Cr
- Side roll stand: 8 sets(Vertical)
- Side roll stand shaft: Ø30mm
- Material of shaft: 40Cr
- Gear box & universal joint: 7sets
- Material of gear box: cast steel
- Material of gear: 20CrMnTi
4.2 Sizing mill gear box, universal joint
4.2.1 Sizing mill consist of:
- Driven stand: 4 sets (Horizontal)
- Driven stand shaft: Ø45mm
- Material of shaft: 40Cr
- Side roll stand: 4 sets(Vertical)
- Side roll stand shaft: Ø30mm
- Material of shaft: 40Cr
- Gear box & universal joint: 4 sets
- Material of gear box: cast steel
- Material of gear: 20CrMnTi
- 3 sets single head Turk’s head, with 4 rollers*3sets
- One speed testing roller with air cylinder for CNC flying saw
4.3 Drived motor
- Main motor: 55kW Model: Z4-200-31 1 set
- Main redactor: 1 set

5. Welding section
5.1 Welding section consist of:
- Seam guide unit: 1 set
- Squeeze stand: 2 rollers
- De-burr frame: 1 set (2 heads)
- Horizontal unit for seam ironing: 2 rollers
5.2 Cooling section
- Cooling trough: 1 set
- Cooling trough length: 3 m
5.3 Solid state High frequency welder (GGP100KW or 200kw)
- Nominal power: 100kW
- Rated DC power: Pd=120kW
- Rated DC voltage: UdN=450V
- Rated DC current: IdN=270A
- The whole efficiency: η≥85%
- Output power: Pout>100kW
- Designed frequency: f=450~500kHz
- MOSFET inverter: 60kW×2
- Tank circuit output mode: no welding transformer output, secondary resonance
- With water-water cooler for welder





Packaging & Shipping
