Carbon steel pipe production line for making round pipe/square pipe/oval pipe from diameter 10 to 127mm
- 20 Set / Sets per Month
- Tianjin Xingang
- T/T
-
welded pipe cold roll former mill welded pipe roll forming machine steel pipe machines
-
pipe making machine
-
pipe production line
-
Sprial welded pipe roll forming machine within diameter range from 630-3650mm
-
steel pipe machine welding pipe roller former line rectangular welded steel pipe roll forming machine
-
Zhongtuo high quality China welded pipe making machine for carbon steel pipe
Product Details
| Type: | Other, Pipe Welding Machine, Pipe Production Line | Pipe Material: | Other, Carbon Steel, Carbon Steel | ||
| Application: | Energy Supply Pipe | Production Capacity: | 0-90m/min | Place of Origin: | Hebei, China |
| Brand Name: | Zhongtuo | Model Number: | ZT-50 | Voltage: | 380V/220V,50HZ |
| Power(W): | 101kw, customized | Dimension(L*W*H): | customized as quired, customized | Weight: | 5T, about 10 tons |
| Certification: | ISO9001,CE, ISO9001:2008 | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

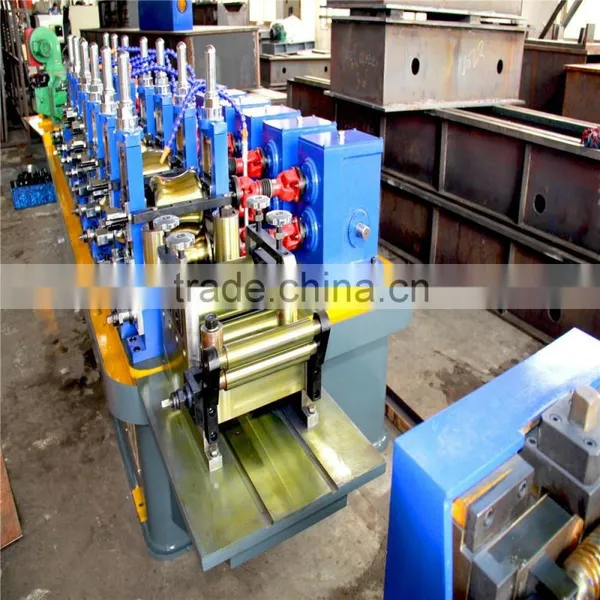

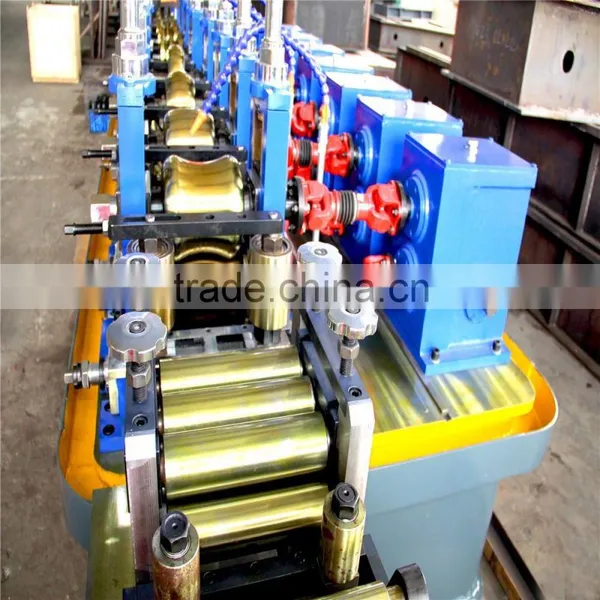

Carbon steel pipe production line for making round pipe/square pipe/oval pipe from diameter 10 to 127mm
--------------------------------------------------------------------------------------------------------------
Carbon steel pipe production line production line:

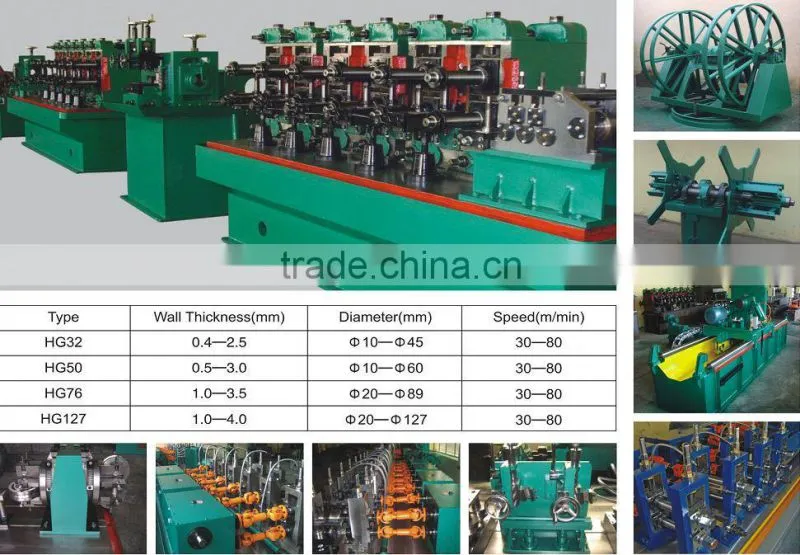

Zhongtuo carbon steel pipe production line adopts advanced welding technology and offers dual welding arcs, increased speed, higher deposition, superior mechanical properties and quality. HG50, HG76 high frequency welded pipe machine is widely applied for producing tubes for heat exchanger, refrigerator, frame of car, bicycle, fitness equipment, furniture, cooling machine, petrol transmission, construction industry, etc. This high frequency welded pipe making machine or welded pipe mill composes of a complete set of pipe forming machine, rotating capstan, decoiler, straightening machine, shearing,accumulator, tube mill section, flying saw and packaging device. Now we have four types machines which are divided by wall thickness and diameter.
Features of Carbon steel pipe production line :
1.High frequency welding system. it can help you save lots of energy.
2.High working speed, our machine could reach 90m/min and the speed could be adjusted.
3.For the cutting system, it takes flying cutting saw, which could work fast, accurate within little space.
4.Support long pipe making.
5.Pipe diameter range from 10-127mm withth the thickness 0.4-5mm.
What carbon steel pipe production line could do:
Working flow of the carbon steel pipe production line:
Main technical parameters:
Decoliler coil inner diameter:450-550mm coil max width:300mm 3.max carrying capacity: 1500kg Usage:It is used to support the steel coil and uncoil it in a turnable way. Passive uncoil pulled by roll forming system |

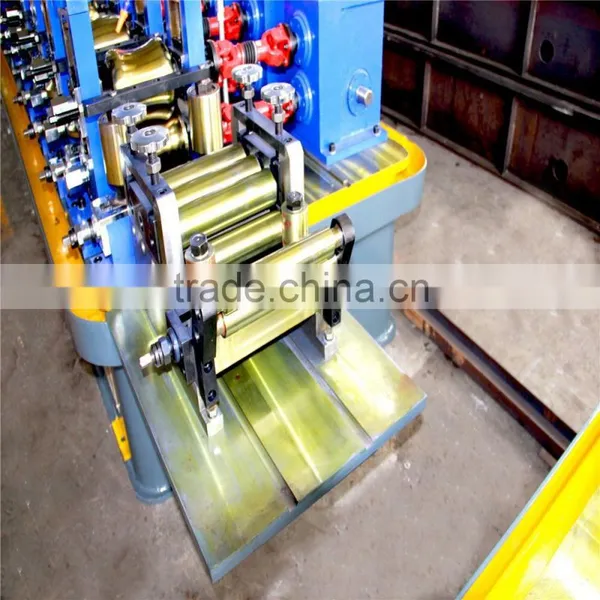

Leveling system: Usage:Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron. |

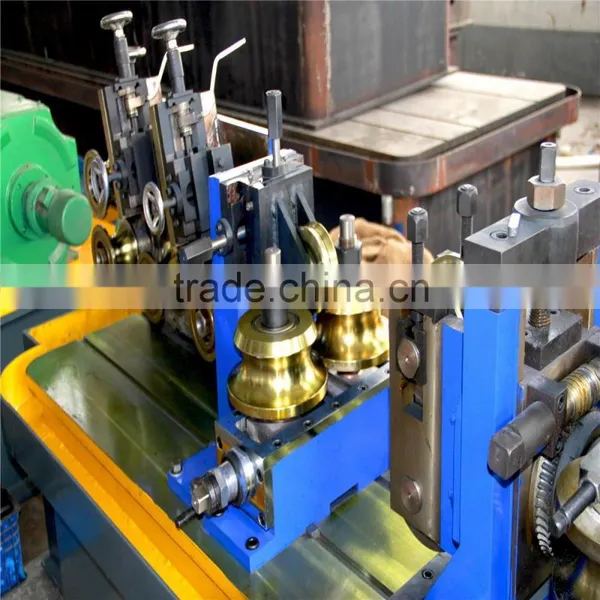

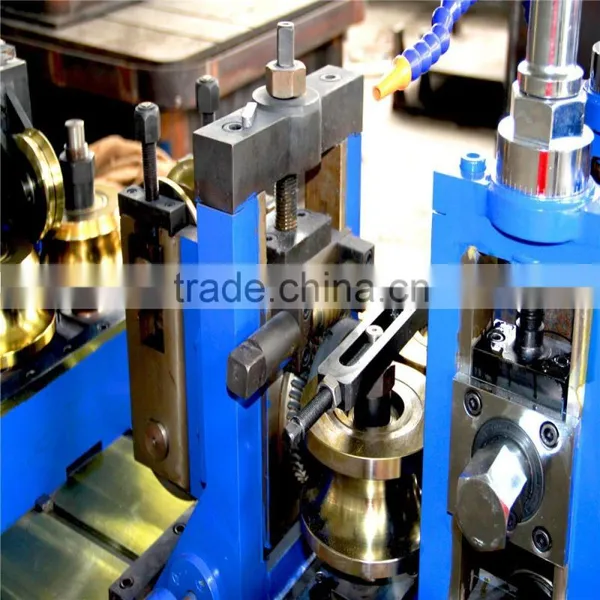

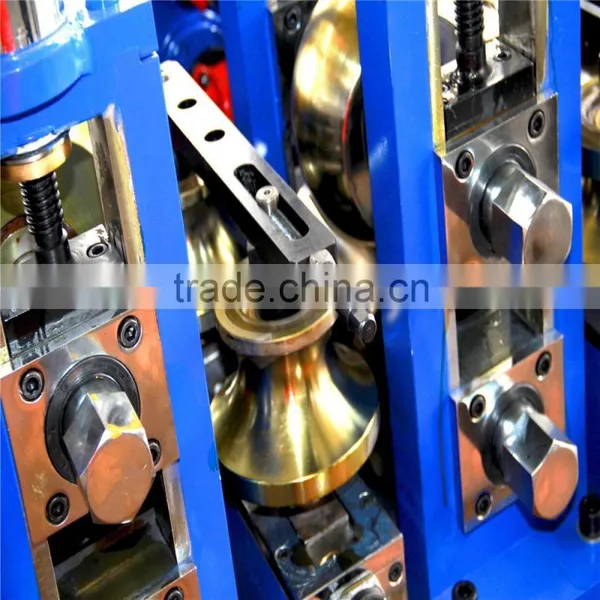

Main roller system: 1.Shaft material & rollers material & shaft diameter45# steel adjustable treatment; 45# steel, polished, plate of chrome 0.05mm; 60mm 2. power: 101kw 3. Transport; Motor; chain drive 4. Forming speed; 20m/min Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped. Material: blade, puncher and mold material: Cr12 steel with quenched treated 60-62 |
Shearing system Cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor. It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12 quenched Power supply : hydraulic power Components: It contains one set of blade, one hydraulic tank and one cutter machine. |
How to count the production of welded pipe machine?
Case: For example you need to make pipe at the diameter 50x50x2mm thickness, normal carbon steel material.
And you let the machine work 8 hours/day.
---> our machine working speed 30-90m/min. You can adjust the machine speed at 90m/min.
So one day the welded pipe machine could make 90m/minx24hourx3600min/hour=7776000m one day
Straight welded pipe mills package Wiped Anti Rust Oil, Rollers and Shafters covered by waterproof film,Hydraulic station, PLC control Box, Spare parts and some small parts packed in plywood box. All Components Fixed by steel wire with Container.
Warranty
1). One year, and we will provide the technical support for the whole life.
2).Training: the buyer should charge of visa, return ticket, food and accommodation overseas
and USD50/person/day for salary.
3). Need one technicians
4).Training time: one week (contains the time of installation and adjustment)
