Sprial welded pipe roll forming machine within diameter range from 630-3650mm
- 20 Set / Sets per Month
- Tianjin Xingang
- T/T
- CNC router for stone processing engraving machine
- Glass polishing machine JMB95A
- Aluminum Profile Bending Machine/Arc Bending Machine for Aluminum
- Automatic aluminum window corner connector cutting machine
- aluminum door and window frame cutting machine aluminum windows and doors machine
- Upvc Window Door Machine Four Head Welding Machine for PVC welding Window Machine
Product Details
Type: | Other, Pipe Welding Machine, Pipe Production Line | Pipe Material: | Other, Carbon Steel, Carbon Steel | ||
Application: | Energy Supply Pipe | Production Capacity: | 0-90m/min | Place of Origin: | Hebei, China |
Brand Name: | Zhongtuo | Model Number: | ZT-50 | Voltage: | 380V/220V,50HZ |
Power(W): | 200kw, customized | Dimension(L*W*H): | customized as quired, customized | Weight: | 5T, about 10 tons |
Certification: | ISO9001,CE, ISO9001:2008 | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Diameter ofφ630~φ3520 Spiral Welded Tube Machine quotation
Brief introduction:
Spiral welded pipe machine is used to big diameter pipes by spiral welding method. By decoiler to uncoil and level the steel coil, and send the strip to forming machine by certain angle, then bend the pipe by certain angle based on three-roller forming principle, at last weld the spiral welding seam by the submerged arc welder. It is also called SSAW pipe mill.
Main specification of submerged pipe roll forming machine | ||||
S/N | Item | Specification | ||
Raw material specification | ||||
1 | Raw material OD | diameter 1200~φ1800mm | ||
2 | Raw material ID | diameter 500~780mm | ||
3 | Coil width | 700~1650mm | ||
4 | Material thickness | 3~10mm | ||
5 | Coil material | Q235,Q345B | ||
6 | Curved teeth | ≤20mm/5m | ||
7 | The tower coils | ≤60mm | ||
8 | Max weight | 15 Ton | ||
Finished Pipe specification | ||||
9 | Pipe diameter range | diameter 630~3520mm | ||
10 | Material thickness | 3~10mm | ||
11 | Pipe length | 8~12(0.5)m | ||
12 | Forming angle | 40 o ~80o | ||
13 | Transmission speed | 0.5~3m/min | ||
Welding part | ||||
14 | Welder | Take single wire automatic submerged arc welding | ||
15 | Welding speed | 0.5~2.0m/min | ||
16 | Inner and outside welder | Take single wire automatic submerged arc welding | ||
17 | Inner and outside welding speed | 0.5~1.5m/min | ||
18 | Swing degree | 38 o ~82 o | ||
19 | Rear axle swing degree | 1.5 degree | ||
20 | Year production | 25000 Ton / year |
Working process of Spiral Welded Tube Machine:
Decoilingà remove the unneat and unstraight part at the beginningà feed coil to machineà Vertical roller to fix the coil and weld two coils together.--> forming stationà inner and outside welder systemà flying and tracking cutting saw systemà runout table
Main part function:
1. Decoiler system firstly is used to open and feed the first edge of coil to the strip edge joining system. Meanwhile this part also bends the trailing edge of the coils.
2. Side guide rollers are designed to feed the coil in the correct position from the decoiler to the forming section. And the pivot line roller and the cross side rollers are positioned by the hydraulic cylinders; the position will not be changed. Its functions are fixing the coil. And there are also some non-pivot rollers which are moveable for eleiminating the minor movements of the stripe.
3. For leveling and make sure the input coil straight, there are some non-driven rollers to level coil stressed by the hydraulic cylinders.
Main elements of Spiral Welded Tube Machine: | |||
S/N | Item Name | Structure form | Quantity |
1 | Decoiler | Double head style | 1 |
2 | Shovel head device |
| 1 |
3 | Coil feeder system | Vertical roller system | 1 |
4 | Cutting edge and welder system | With a loading car, removing edge and weld two edge together. | 1 |
5 | Horizontal guide device | Electric vertical roller | Two sets |
6 | Disc shearing and waste edge scrap box | 1 shearing and 2 scrap boxes | 1 set |
7 | Coil deliver system |
| 1 set |
8 | Pre bending system to make coil curve |
| 1 set |
9 | Entrance guide |
| 1 set |
10 | Entrance Roller |
| 1 set |
11 | Roll forming machine |
| 1 set |
12 | Rear axle device |
| 1 set |
13 | Stabilizer |
| 1 set |
14 | Flying tracking cutting car | Non plasma cutting machine | 1 set |
15 | Swing and supporting rollers |
| 1 set |
16 | Front axle device |
| 1 set |
17 | Inner and outside welder |
| 1 set |
18 | Foundation for buried parts |
| 1 set |
19 | Hydraulic system |
| 1 set |
20 | Electrical system |
| 1 set |
21 | Total weight | 220 Ton |
|
Technical documents:
1. Once the contract signed, the seller will products the Foundation for buried parts to the buyer and Foundation based building detail size drawing for the buyer to reference.
2. Foundation Plan (including the arrangement of water, electricity and air ect.)
3. Arrangement Plan
4. Operation Instruction (including the structure diagrams of the equipment, operation instruction, maintenance and trouble shooting, safe rules, consumable parts list and purchased parts list)
Installation, Commissioning, Test and Training
1. The engineers from the Seller shall supervise the installation on site and fulfill the commissioning. They should start off within 10 days after they get the information from the Buyer.
2. The Buyer signs in the Certificate of Acceptance.
- The Seller trains the operators of the Buyer during the commissioning
- Commissioning: about 3 engineers in 30 days.
- The Buyer shall pay for the international air tickets and the local, such as board and lodging, daily transportation, communication, Insurance, etc. The Buyer shall pay USD 80 /day /person to the Seller for the commissioning.
- The Buyer shall prepare an interpreter for better communication between the two sides.

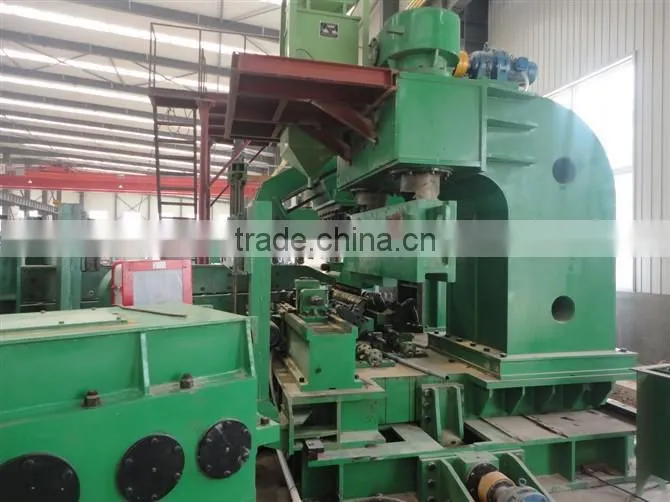

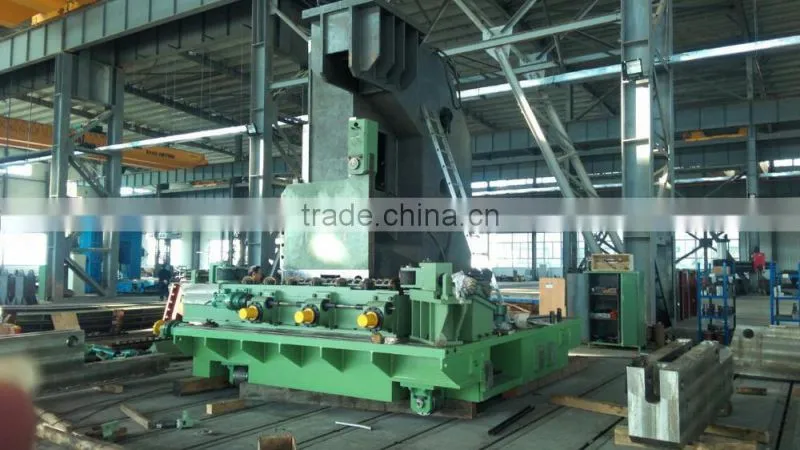

Here are some pictures for your reference:
