fascia valley gutter cold bending machine
- 20 Set / Sets per Month
- tianjin
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Tile Forming Machine | Tile Type: | Steel |
Use: | Other, gutter | Production Capacity: | 8-15m/min | Place of Origin: | Hebei, China |
Brand Name: | zhongtuo | Model Number: | zt-100 | Power(W): | 5.5kw |
Voltage: | 380V/50HZ 3Phase | Dimension(L*W*H): | 8200*1450*1500mm | Weight: | 5.3T |
Certification: | ISO9001 CE | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
fascia valley gutter cold bending machine
1. Profile | 1. feeding width 600mm (according to the profile) 2. material thickness 0.3-0.8mm
|
2. Process flow | Decoiling--feeding---forming---measuring---cutting---production
|

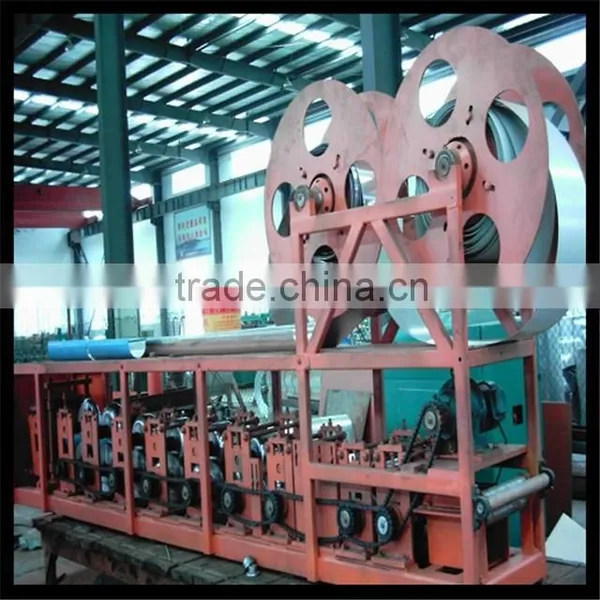

3. Decoiler | 5 tons manual decoiler
|

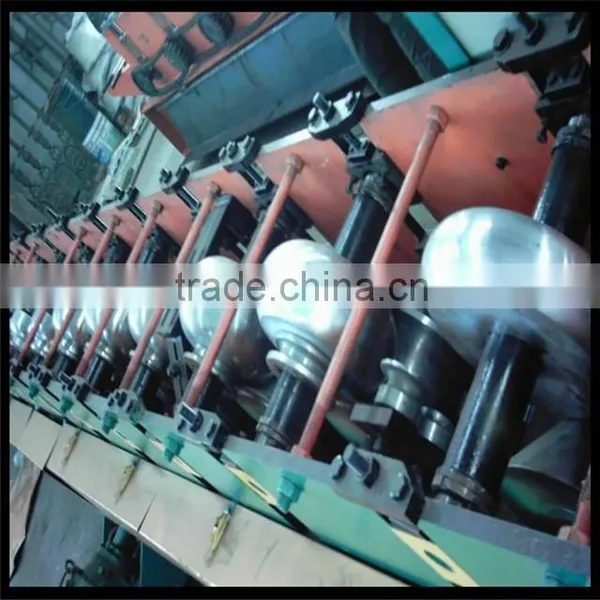

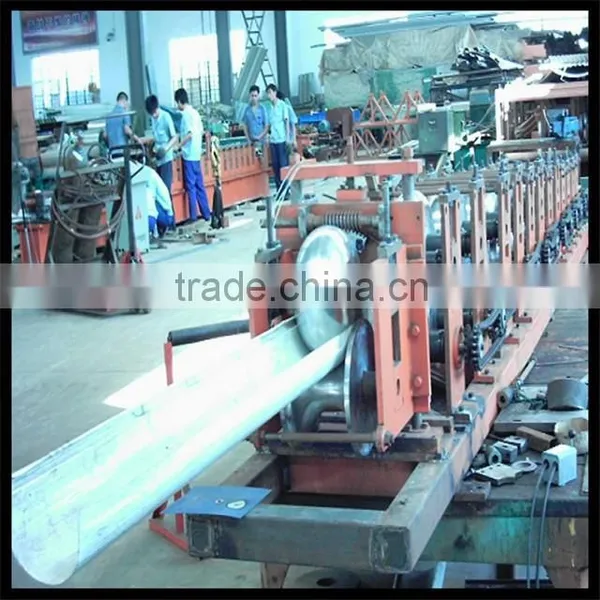

4.Forming device | 1. Shaft material 45# steel; outer diameter 80mm; 2. Number of rollers : 13 rollers 3. Transport: by chains and gears 4. Forming speed: 8-15m/min 5. Motor: 5.5kw 6. Dimension:8200*1450*1500mm 7. Weight: 5.3t |

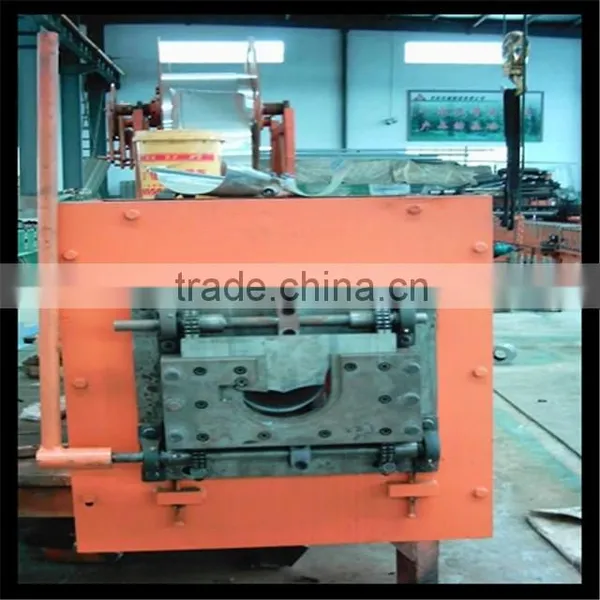

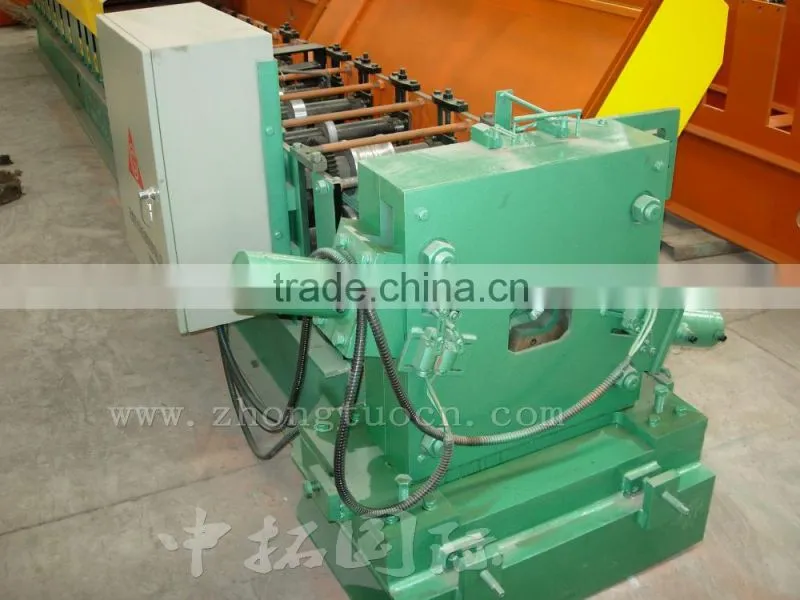

5. Cutting device | 1. Blade Material: Cr12 steel with quenched treated 60-62°C 2. Cutting system: stop then cut, full automatic |
6.Controlling device | 1. screen: text screen displayer 2. PLC: Taida DVP14ES from Taiwan
|
7. Hydraulic |
1. Advanced hydraulic system from Taiwan
2. Power: 5.5kw
|
8. Spare parts | 1. easy damaged parts: conk 2 pcs, fuse-link 4 pcs 2. rubber mat 1 pcs; 3. bolt spanner 1 pcs |
ackaging: Important Components Wiped Anti Rust Oil, Rollers and Shafters covered by foam film, Hydraulic station, PLC control Box, Spare parts and some small parts packed in plywood box. All Components Fixed by steel wire with Container.
Payment Terms: 30%T/T after signed the contract,balanced before delivery
Warranty
1). One year, and we will provide the technical support for the whole life.
2).Training: the buyer should charge of visa, return ticket, food and accommodation overseas
and USD50/person/day for salary.
3). Need one technicians
4).Training time: one week (contains the time of installation and adjustment)
Cangzhou ZHONGTUO International Trade Co., Ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and
concerning with the design, development and production of cold roll forming machines,
material of building. It is located in northwest of CangZhou, as a long history of cold roll
forming machine production base. All products comply with international quality standards
and are greatly appreciated in variety of different markets throughout the world, such as
Asia, Africa, Europe,South America, and Australia and so on.
1.You are trade company or factory?
- We are trade company but we also have own factories. Building trade company is just for
exporting various types of cold roll forming machines.
2. Why your price is higher than others?
- As we persist on that each factory should put quality at the first place. We spend time
and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.
3. How long the machine could be made?- Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
4. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can pick up you.
5. Does one machine can only produce one style panel profile?
-Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of
panels.
6. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
7. What can you do if the machine broken?
-Our machine's warranty period is 12months,if the broken parts can't repair,we can send the
new parts replace the broken parts freell,but you need pay the express cost yourself.if
after warranty period,we can through negotiationfor to solve the problems,and we supply the
technical support for the whole life of the equipment.
8. Can you be responsible for transport?
-Yes,please tell me the destination port or address.we have rich experience in transport.
