Specifications
Zhongtuo downpipes roller formed system is lower cost and high quality.It is high efficiency and low energy using.
Zhongtuo downpipes roller formed system oversea service available
Specification:
1. Excellent Appearance and long time to use.
2. Reasonable price.
3. Strict quality control.
Zhongtuo downpipes roller formed system;is widely used in various industrial factory, civilian building,
warehouse and easy steel building manufacturing, and have features such as nice appearance and durable. Main components: Manual uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting system
No. |
Main parameter of steel pipe roll forming machine |
|
1 |
Suitable to process |
Color steel plate |
2 |
Width of the plate |
As customer need |
3 |
Thickness of the plate |
0.5-0.8mm |
4 |
De-coiler |
Manual one, can load 3 tons raw material |
5 |
Rollers for forming |
19 rows |
6 |
Diameter of the roller |
Φ60mm |
7 |
Rolling material |
Carbon Steel 45# |
8 |
Main motor power |
4kw |
9 |
Productivity |
8-10m/min |
10 |
Cutting method |
mold cutting |
11 |
Material of the cutting blade |
Cr12 |
12 |
Hydraulic cutting power |
3kw |
13 |
Processing precision |
Within 2.00mm |
14 |
Control system |
Panasonic PLC control |
15 |
Main structure of the machine |
300 H steel |
16 |
Weight |
About 7.5T |
17 |
Dimensions |
17*1.2*1.4m |
18 |
Voltage |
380V 50Hz 3phases(changeable as needs) |
Machine functions of each part:
Uncoiler System |
Usage:It is used to support the steel coil and uncoil it in a turnable way. Passive uncoil pulled by roll forming system Loading capacity:1.5TUncoiling width:300mmInner diameter: 450-550mm |
| Entry Beach |
Usage:Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron. |
| Main Roll Forming System |
Feature : Ensure stability , precision and lifetime. Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped. |
| Shearing Mechanism |
Feature : Ensure stability, precision and cutting speed Material of blades: Cr12 quenched Power supply : hydraulic power Components: It contains one set of blade, one hydraulic tank and one cutter machine. |
|
Hydraulic Station |
It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. Power:5.5kw Components: The system includes a set of hydraulic tank , a set of hydraulic oil pump, four hydraulic pipes.and two sets of electromagnetism valves. |
| Electric Control System |
Feature: 1.Adopted PLC , frequency converter , Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime. |

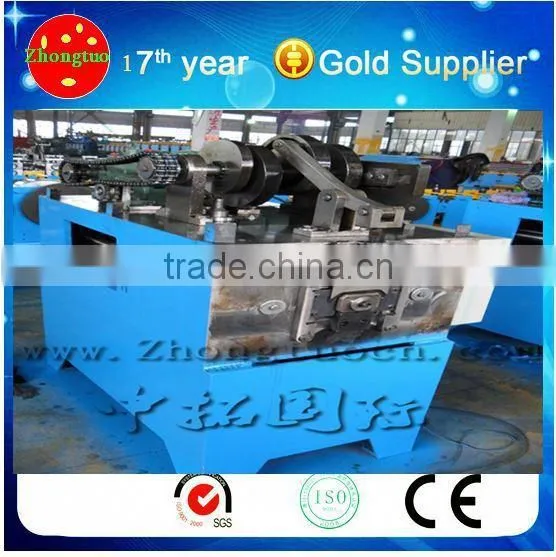

Main pictures of Zhongtuo downpipes roller formed system;:
Finished Products :
