Mild steel ventilation duct forming equipment/process
Main components: Manual uncoiler, Roll forming machine, computer control system, hydraulic
control system, cutting system
Our products are widely used in various industrial factory, civilian building, warehouse and easy
steel building manufacturing, and have features such as nice appearance and durable.
No. |
Main parameter of steel pipe roll forming machine |
|
1 |
Suitable to process |
Color steel plate |
2 |
Width of the plate |
As customer need |
3 |
Thickness |
0.5-0.8mm |
4 |
De-coiler |
Manual one, can load 3 tons raw material |
5 |
Rollers for forming |
19 rollers |
6 |
Diameter of the roller |
Φ60mm |
7 |
Rolling material |
Carbon Steel 45# |
8 |
Main motor power |
4kw |
9 |
Productivity |
8-10m/min |
10 |
Cutting method |
mold cutting |
11 |
Material of the cutting blade |
Cr12 |
12 |
Hydraulic cutting power |
3kw |
13 |
Processing precision |
Within 2.00mm |
14 |
Control system |
Panasonic PLC control |
15 |
Main structure of the machine |
300 H steel |
16 |
Weight |
About 7.5T |
17 |
Dimensions |
17*1.2*1.4m |
18 |
Voltage |
380V 50Hz 3phases(changeable as needs) |
main machine picture make a reference:

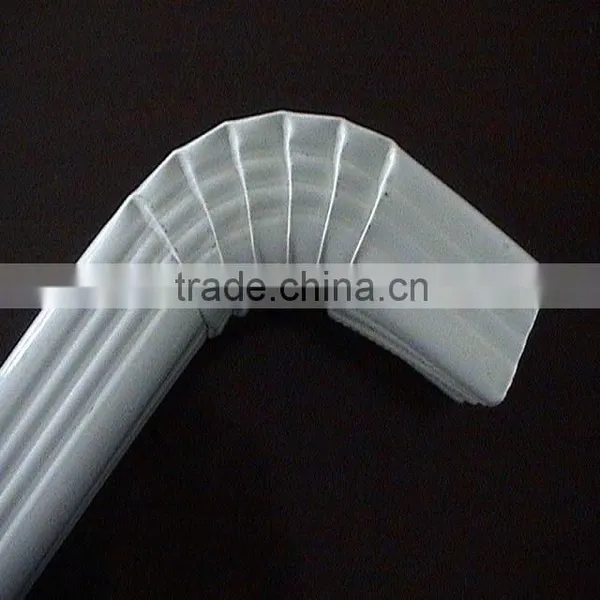

sample of production:
profile to make a reference:
Warranty: 1 year and life-long maintainance
*Installation and debugging: We will send professional engineer to make installation and
debugging, Buyer pay our engineer each one 50 USD/day, and provide accommodation,
food and the round-trip ticket fee.
* Installation Days: about 5-7 days
Cangzhou ZHONGTUO International Trade Co., Ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and
concerning with the design, development and production of cold roll forming machines,
material of building. It is located in northwest of CangZhou, as a long history of cold roll
forming machine production base. All products comply with international quality standards
and are greatly appreciated in variety of different markets throughout the world, such as
Asia, Africa, Europe,South America, and Australia and so on.
1.You are trade company or factory?
- We are trade company but we also have own factories. Building trade company is just for
exporting various types of cold roll forming machines.
2. Why your price is higher than others?
- As we persist on that each factory should put quality at the first place. We spend time
and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.
3. How long the machine could be made?- Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
4. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can pick up you.
5. Does one machine can only produce one style panel profile?
-Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of
panels.
6. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
7. What can you do if the machine broken?
-Our machine's warranty period is 12months,if the broken parts can't repair,we can send the
new parts replace the broken parts freell,but you need pay the express cost yourself.if
after warranty period,we can through negotiationfor to solve the problems,and we supply the
technical support for the whole life of the equipment.
8. Can you be responsible for transport?
-Yes,please tell me the destination port or address.we have rich experience in transport.
We can produce other machine, if you have insteresting, you can enter our Web have a look.
Here is the Connection:
