Help CenterRain Water Downpipe Roll Forming Machine
Related Products
-
Downpipe Making MachineUS$ 30,000 - 40,000MOQ: 1 Set -
Downspout Forming Machine and Curving MachineUS$ 29,000 - 45,000MOQ: 1 Set
-
Automatic Downspout Roll Forming MachineUS$ 53,500 - 75,000MOQ: 1 Set
-
Automatic Rain Gutter Making MachineUS$ 12,000 - 100,000MOQ: 1 Set
-
Hot Sale Rain Gutter Making MachineUS$ 42,000 - 100,000MOQ: 1 Set
Specifications
1.lower cost2.high efficiency
3.reliable working
4.low energy consumption

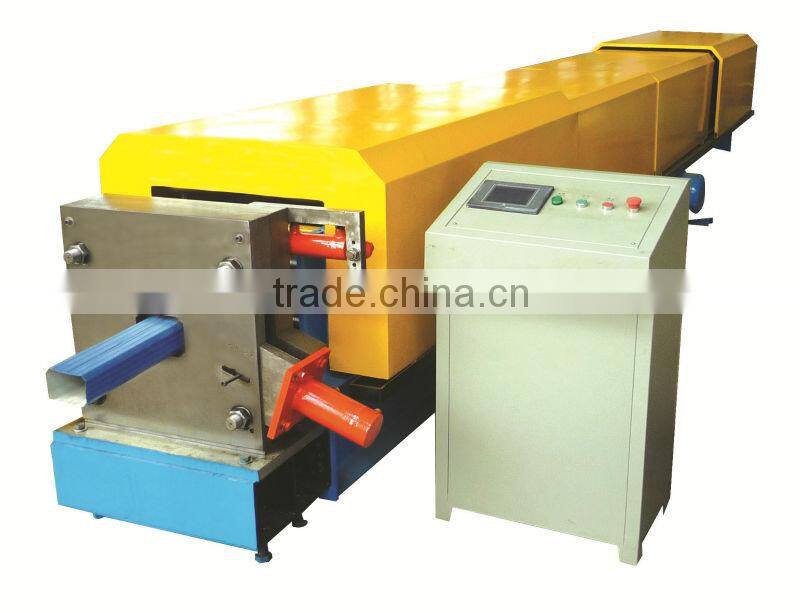

Rain water Downpipe roll forming machine

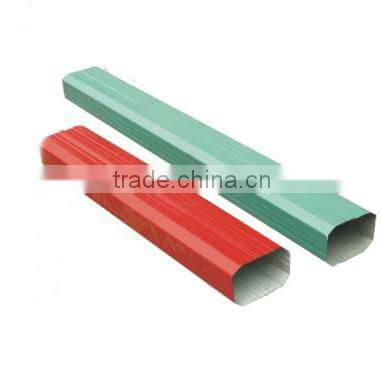

1. Profile |
1. feeding width 1200mm 2. material thickness 0.3-0.8mm
|
2. Process flow |
Decoiling--feeding---forming---measuring---cutting---production
|
3. Decoiler |
5 tons manual decoiler
|
4.Forming device |
1. Shaft material 45# steel; outer diameter 80mm; 2. Number of rollers : 13 rollers 3. Transport: by chains and gears 4. Forming speed: 10-16m/min 5. Motor: 5.5kw 6. Dimension:8200*1450*1500mm 7. Weight: 5.3t |
5. Cutting device |
1. Blade Material: Cr12 steel with quenched treated 60-62°C 2. Cutting system: stop then cut, full automatic |
6.Controlling device |
1. screen: text screen displayer
2. PLC: Taida DVP14ES from Taiwan
|

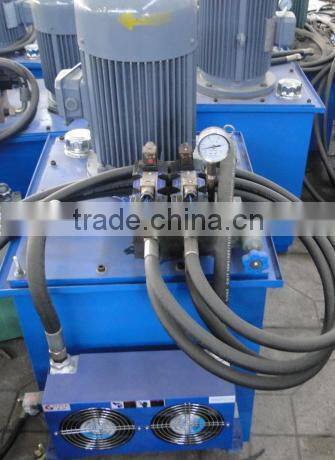

7. Hydraulic |
1. Advanced hydraulic system from Taiwan
2. Power: 5.5kw
|
8. Spare parts |
1. easy damaged parts: conk 2 pcs, fuse-link 4 pcs 2. rubber mat 1 pcs; 3. bolt spanner 1 pcs |

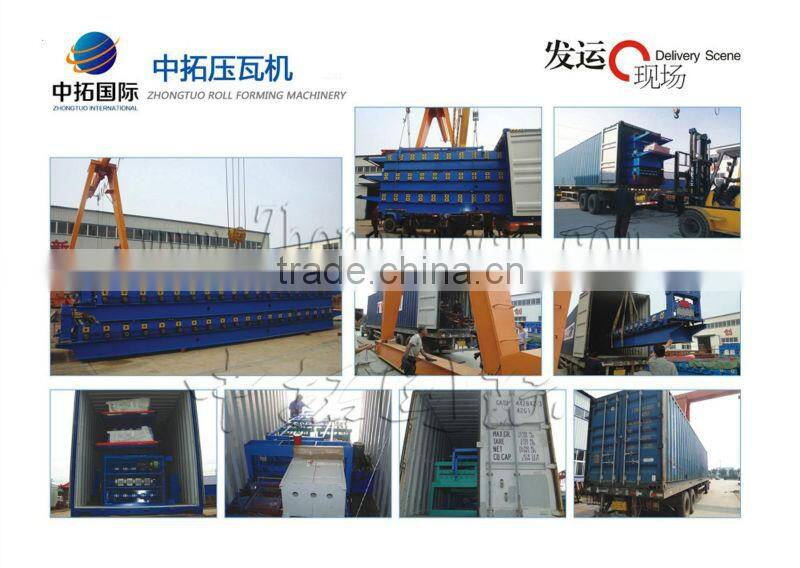

ackaging: Important Components Wiped Anti Rust Oil, Rollers and Shafters covered by foam film, Hydraulic station, PLC control Box, Spare parts and some small parts packed in plywood box. All Components Fixed by steel wire with Container.
Payment Terms: 30%T/T after signed the contract,balanced before delivery
Warranty
1). One year, and we will provide the technical support for the whole life.
2).Training: the buyer should charge of visa, return ticket, food and accommodation overseas
and USD50/person/day for salary.
3). Need one technicians
4).Training time: one week (contains the time of installation and adjustment)
