Specifications
1. ISO,CE Certificate2. more than 10 years life
3. size 8.0*0.8*1.2m
4. 12 months guarantee
5. good quality

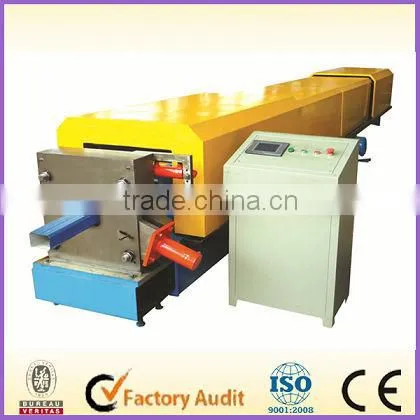

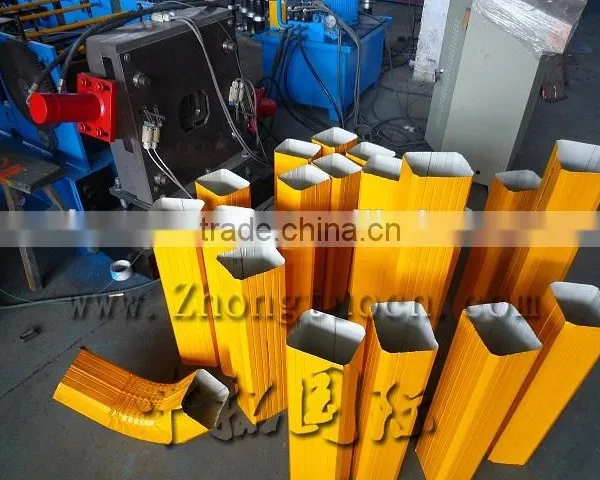

Downspout forming machine and curving machine
new design downspout forming machine

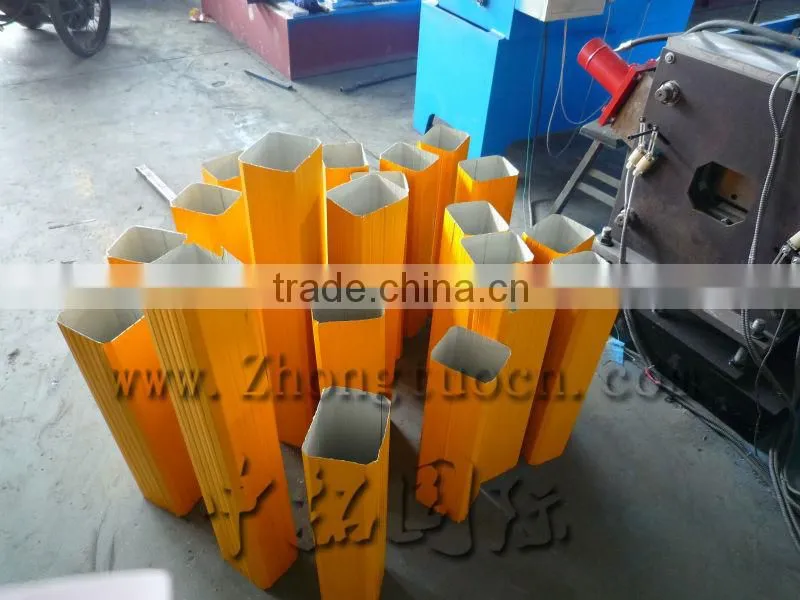

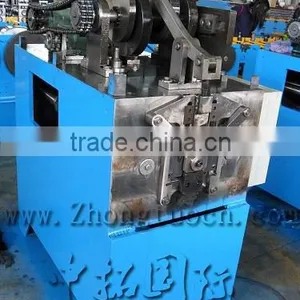

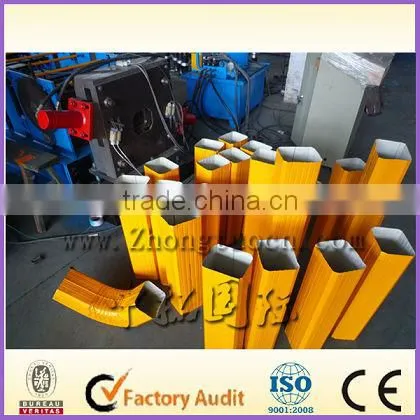

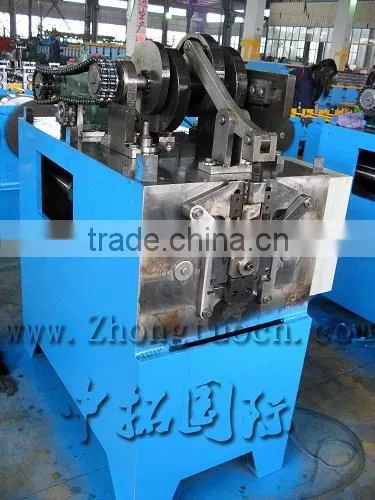

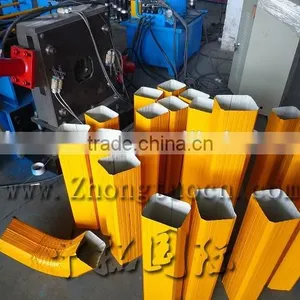

cold roll forming machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.
No. |
main parameter of roll forming machine |
||
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
200-600mm |
|
3 |
Rollers |
14-16rows |
|
4 |
Dimensions |
8.6*0.8*1.2m |
|
5 |
Power |
4+3kw |
|
6 |
Thickness of the plate |
0.3-0.8mm |
|
7 |
Productivity |
8-12m/min |
|
8 |
Diameter of the roller |
52mm |
|
9 |
Weight |
About 4.5 T |
|
10 |
Voltage |
380V 50Hz 3phases |
|
11 |
Rolling material |
Carbon Steel 45# |
|
12 |
Material of the cutting plate |
Cr12 |
|
13 |
Processing precision |
Within 1.00mm |
|
14 |
Control system |
PLC control |
|
15 |
Side panel of machine |
14mm |
|
16 |
Main structure of the machine |
300 H steel |
|
17 |
Weight |
About 4.6 T |
|
Payment:
|
Port: XINGANG PORT TIANJIN CHINA Payment:30% T/T in advance, balance 70% after inspection confirmation before shipment. |
Delivery: within 45 working days after receipt of deposit.
Our service:
|
Warranty: One year, and we will provide the technical support for the whole life. Training: The buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary. Training time: one week (contains the time of installation and adjustment) |
