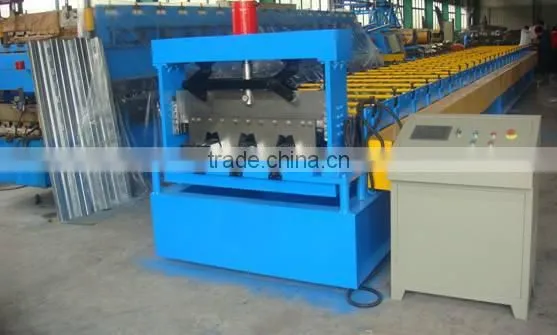

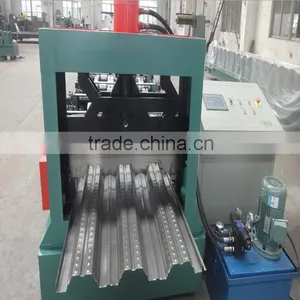

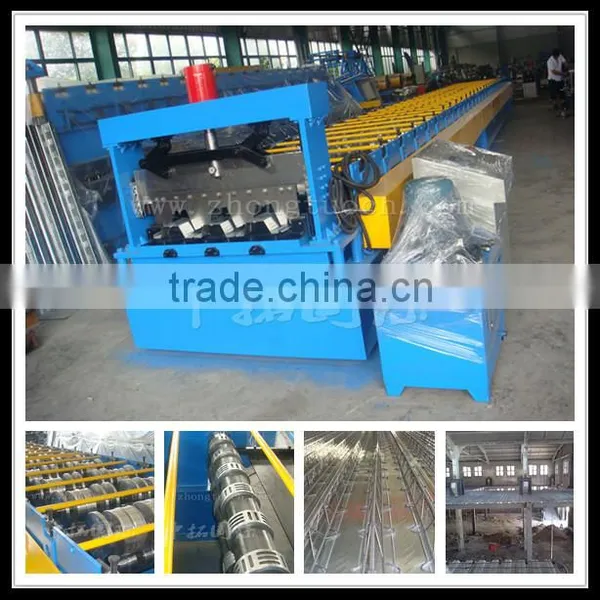

Roof Panel Roll Forming Machine
| No.1 | Item Name | Lead Time | Package | Qty | Price/USD FOB Tianjin |
| 1 | Roof Panel Roll Forming Machine | 45 Working Days | 40 Container | 1 Set | 25000 |

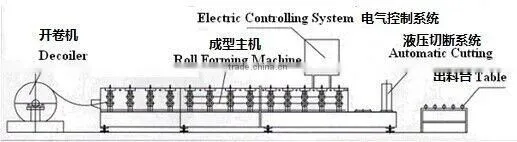

Equipment and Qty. | |
Decoiler |
1 set |
Main roll forming machine |
1 set |
PLC control station |
1 set |
Hydraulic station |
1 set |
Post cut |
1 set |
Electric motor |
1 set |
Runout table |
1 set |
Main features of each part
Drawing of tile
Processing material:galvanized plate
Material thickness:0.6- 1.2 mm
Material hardness: 195 mpa---350 mpa
Formed width: 960 mm
Forming speed:12 m/min

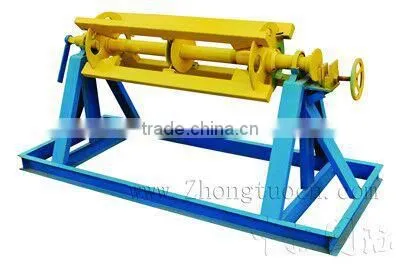

Un-coiler System
Usage: It is used to support the steel coil and uncoil it in a turntable way.
Loading capacity:5 T
Uncoiling width:1200 mm
Inner diameter: 450-550 mm.
Entry Beach
Usage: Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee
that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to
know the function of locate angle iron.

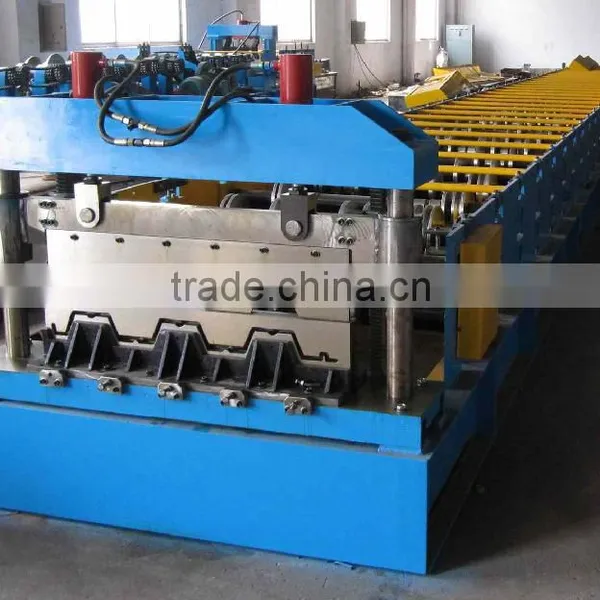

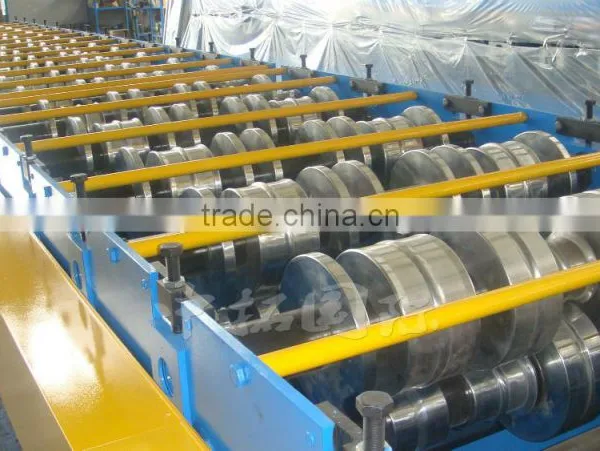

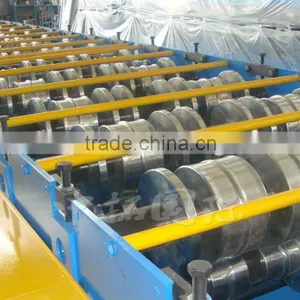

Main Roll Forming System
Size of the main part: about
12500*1850*1500
Weight of main part:11.5 tons
Voltage: 380 V/50 HZ 3 Phase or as your required
Roller fixer : middle plate
Frame : 400 mm H beam steel welded
Drive mode: case of differential

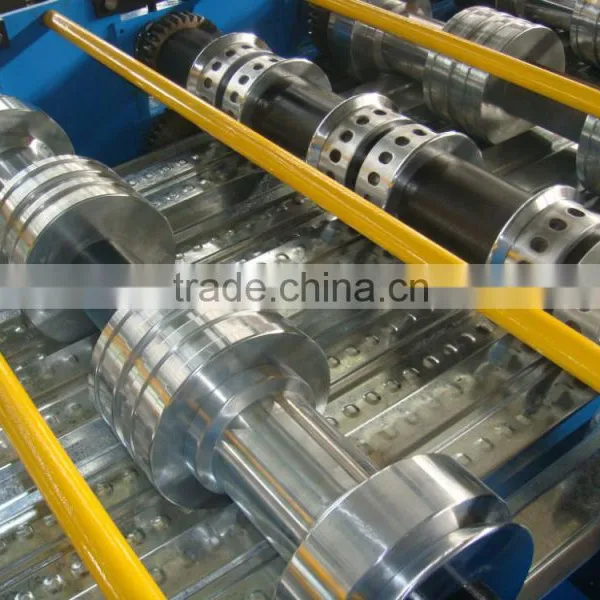

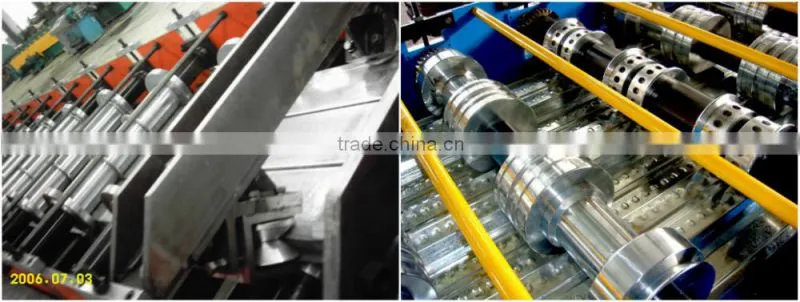

Material of rollers: 45# steel, surface hard chromium plating.
Material of shafts: 45# steel
Diameter of shafts: φ 90 mm
Number of rollers : 24 rollers
Main power:18.5 kw

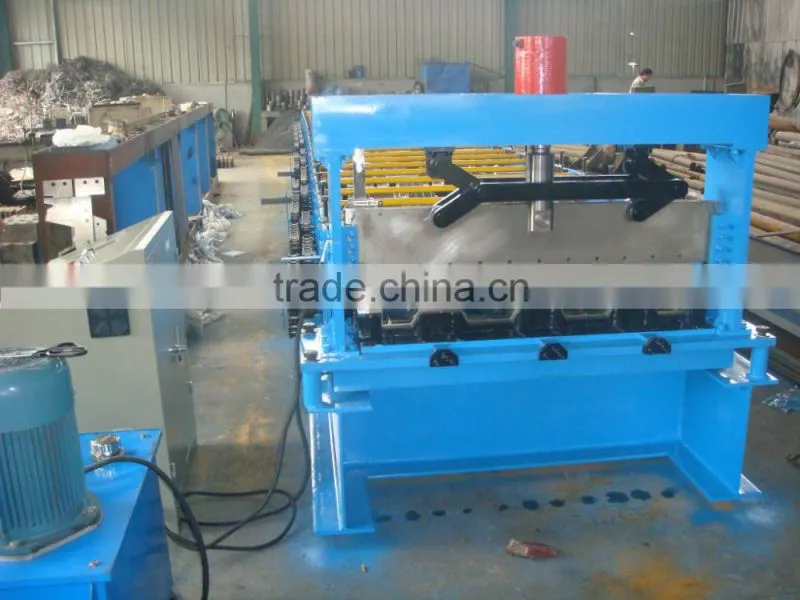

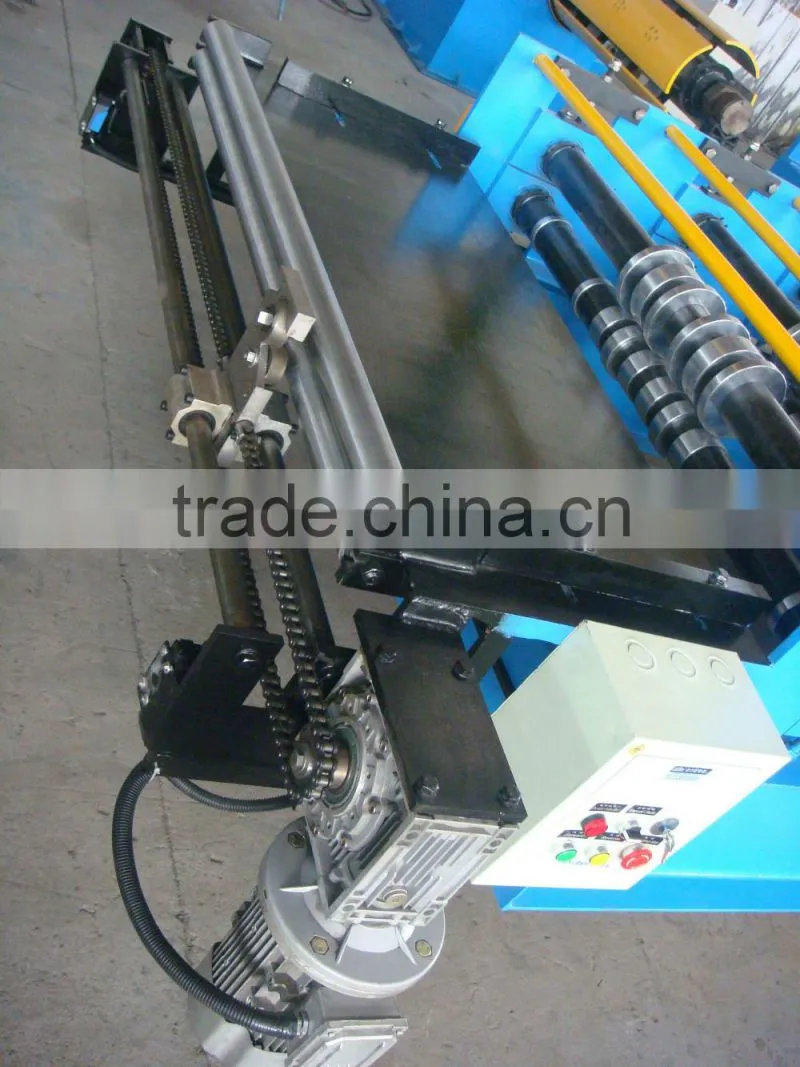

Shearing Mechanism
Feature : Ensure stability, precision and cutting speed
Function : Automatic cutting controlled by P LC
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr 12 quenched
Power supply : hydraulic power
Components: It contains one set of blade, one hydraulic tank and one cutter machine.

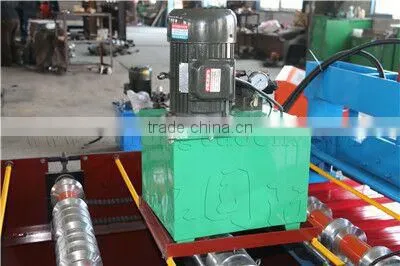

Hydraulic Station
It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives
the cutter machine to begin the cutting job
Power: 5.5 kw
Hydraulic oil: 46#
Components:The system includes a set of hydraulic tank, a set of hydraulic oil pump, 2 hydraulic pipes.
And 1sets of electromagnetism valves.

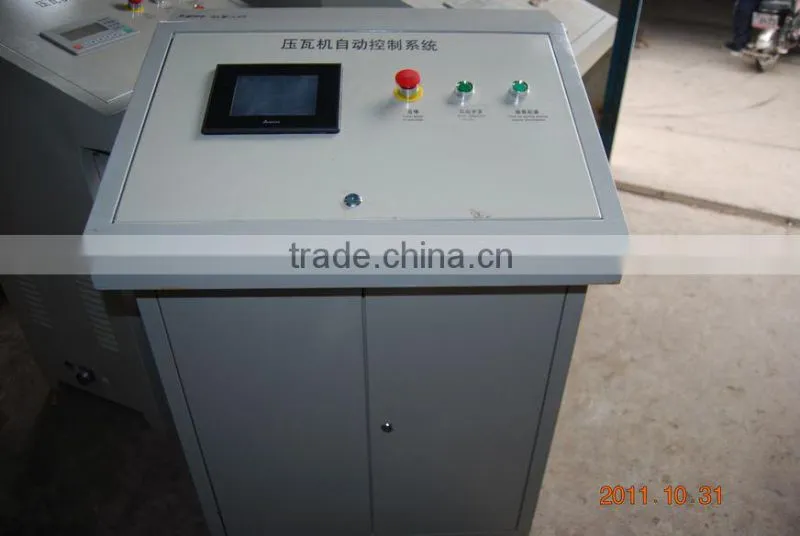

Electric Control System
Feature:
1.Adopted PLC, frequency converter, Delta from Taiwan to ensure high speed with stability, precision
and lifetime.
If you need, we can change it other brand or little computer type for touching screen.

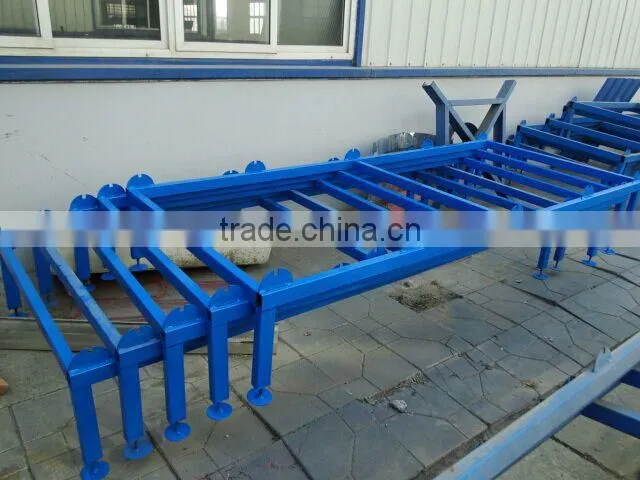

Products receiving tables
1. It adopts welded steel and supported roller to transmit the products.
2. 3m/set with 2sets

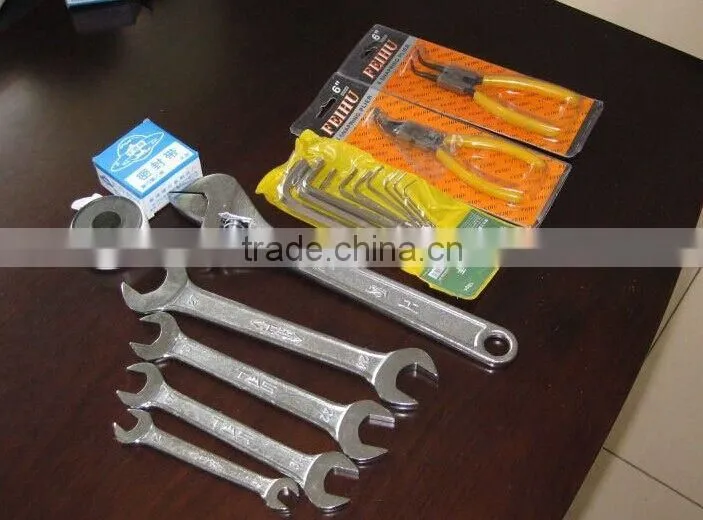

Accessories
1.Easy damaged parts: conk 2 pcs, fuse-link 4 pcs
2. Rubber mat 1 pcs;
3.Bolt spanner 1 pcs
Payment terms
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
Delivery:within 45 working days after receipt of deposit.
Warranty
1. Two years guarantee, and we will provide the technical support for the whole life.
2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD
50/person/day for salary, one technician needed.
4. Training time: one week (contains the time of installation and adjustment)
Cangzhou ZHONGTUO International Trade Co., Ltd is a professional manufacturer and exporterwhich has
its own factory and also cooperate with several production factories and associated nterprises, concerning
with the design, development and production of cold roll forming machines,material of building. It is located
in northwest of CangZhou, as a long history of cold roll formingmachine production base. All products
comply with international quality standards and are greatlyappreciated in variety of different markets
throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.
1. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need
your machines running in order to keep your business running.
2. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick
up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then
we can pick up you.
3. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts repla
ce the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can throug
h negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipme
nt.
4. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
5. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various
types of cold roll forming machines.
6. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on develo
ping How to make machines much more automatic, accurate and high quality. We can make sure thatour m
achine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.
7. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
