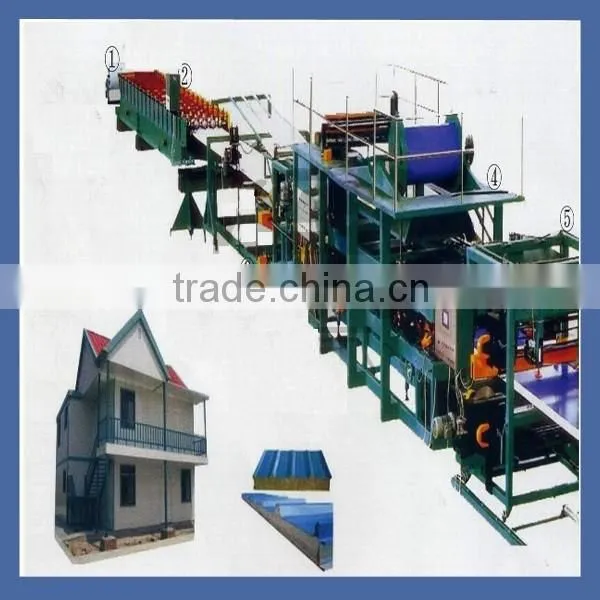

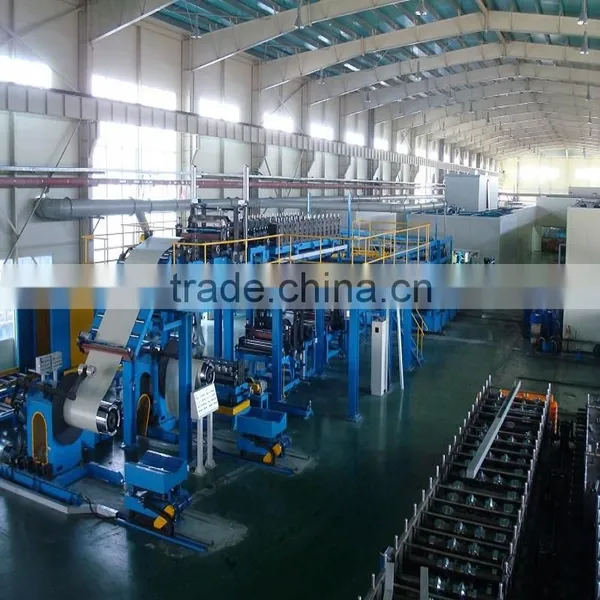

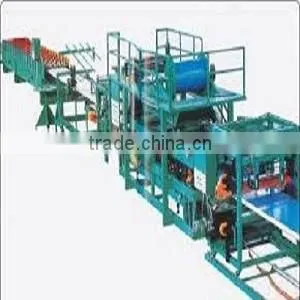

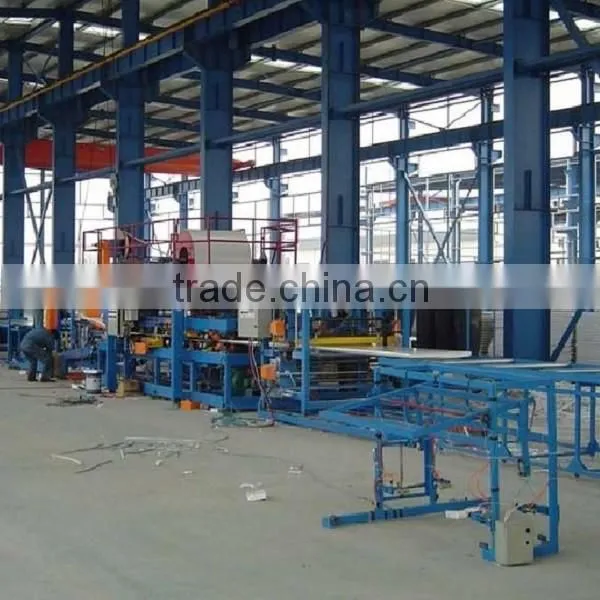

PU Sandwich board production line
Polyurethane sandwich board is a new wall materials which is good for insulation, heat
insulation,sound insulation fire-retardant, waterproof, lightweight.It is widely used in high-rise office buildings and high walls enclosing and decorative, industrial plants, cold storage, clean rooms and insulation containers, etc.
This PU Sandwich board production line include De-oiler,Laminating machine,roll

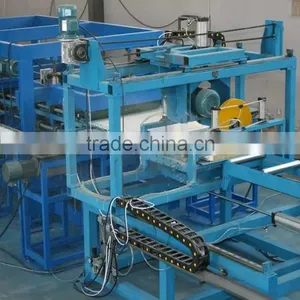

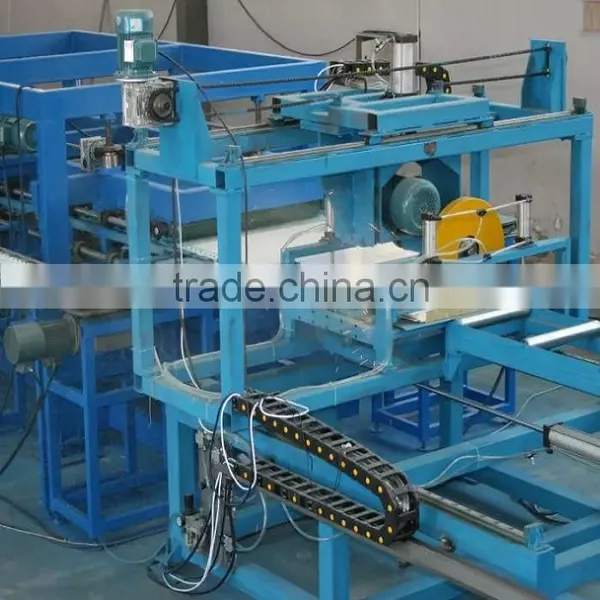

forming system,forming machine,foaming part,Double-belt lamination machine,cutting part,
cooling system,stack,packing machine.
PU Sandwich board production line production Process:
Decoiler--- Laminating machine(cutting)---Roll forming machine---Worming machine--- Foaming machine---Double-belt laminating machine---Cutting part---Cooling system---stack and packing
Details of PU Sandwich board production line :

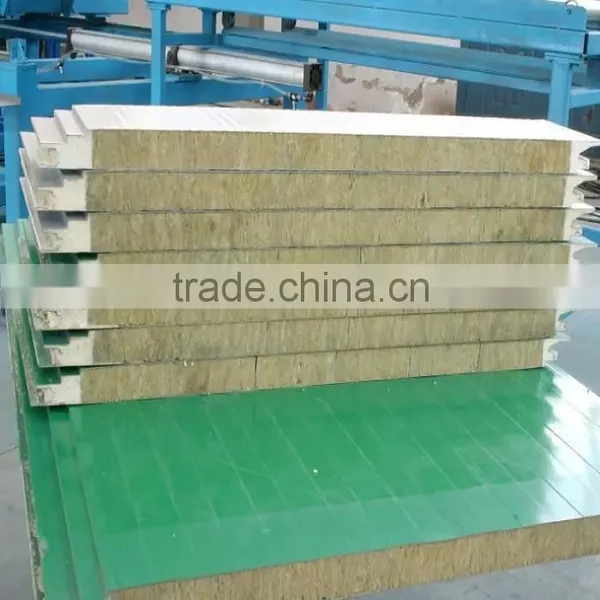

Panel showing :
Parameters of sandwich panel roll forming machine :
Name |
|
Parameters |
|
PU sandwich panel |
Cutting length |
Min 3m, max 15mm |
PU sandwich panel width |
800-1150mm(design by customer) |
|
PU sandwich panel thickness |
50-100mm |
|
PU foam materials |
Polyether and isocyanates |
|
PU foam density |
30-45kg/m3 |
|
|
Raw material |
Max width of coil |
1250mm |
Max weight of coil |
10T |
|
Diameter of coil |
508-610 |
|
The thickness of coil |
0.5-0.8mm |
|
Hardness |
235MPa |
|
|
Main machine |
speed |
5-8m/min |
The length of production line |
80m |
|
Working height |
1200mm |
|
Foam casting working pressure |
150—200 bar |
|
the effective length of Double-belt |
24mm |
|
Control system |
Imported PLC |
|
Total power |
90KW |
|
Voltage |
380V/50HZ |
|
Control voltage |
24V/110V220V |
|
Air pressure |
0.7Mpa |
Packaging Detail of sandwich board roll forming machine :
1. Installation and training of rockwool sandwich board making machine :
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine,
and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other ne
cessary things.
2. After Service rockwool sandwich board making machine
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the new building materials making machine, we will repair it for free in one year.
Cangzhou ZHONGTUO International Trade Co., Ltd is a professional manufacturer and exporterwhich
has its own factory and also cooperate with several production factories and associated nterprises, conc
erning with the design, development and production of cold roll forming machines,material of building. It
is located in northwest of CangZhou, as a long history of cold roll formingmachine production base. All
products comply with international quality standards and are greatlyappreciated in variety of different ma
rkets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.
1. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We
need your machines running in order to keep your business running.
2. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can
pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),
then we can pick up you.
3. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts
replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we
can through negotiationfor to solve the problems,and we supply the technical support for the whole life
of the equipment.
4. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
5. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various
types of cold roll forming machines.
6. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on de-
veloping how to make machines much more automatic, accurate and high quality. We can make sure that
our machine could use more than 20 years without any problem. We can provide 2 years free quality as-
surance.
7. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need
machines in a hurry, we can make it for you less than a month.
