Home > Products > Roof/Wall Panel for Construction > Roof Roll Forming Machine
Roof Roll Forming Machine
- 30 Set / Sets per Month
- Tianjin Xingang Port
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Tile Forming Machine | Tile Type: | Colored Steel |
Use: | Roof | Production Capacity: | 5-12m/min | Place of Origin: | Hebei, China |
Brand Name: | Zhongtuo | Model Number: | ZT-828/840/860/900/910/1010 | Power(W): | 3.5-7.5 Kw |
Voltage: | 380v/480v, 380V/480V | Dimension(L*W*H): | About 6500*1500*1400mm | Weight: | 3-5 Tons |
Certification: | CE/ISO9001 | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Roof Roll Forming Machine
Support you money !! Support you service !! Support you technology !!
PLC control system !! Hydraulic cutting system !! Mult-language conversion system !!

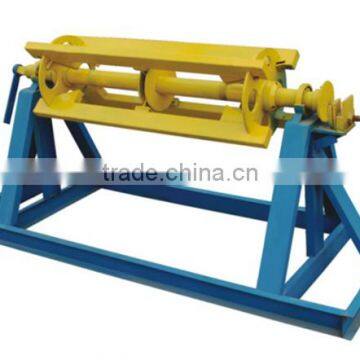

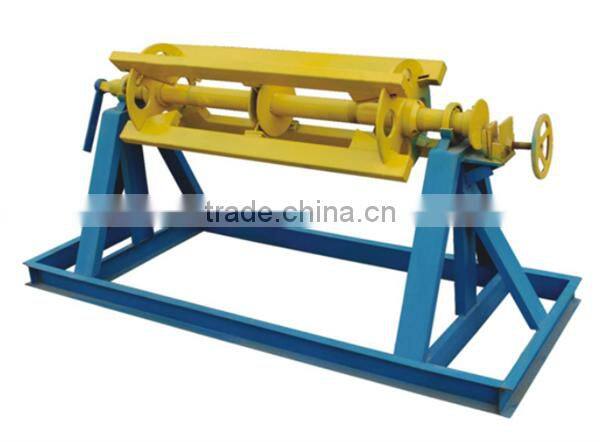

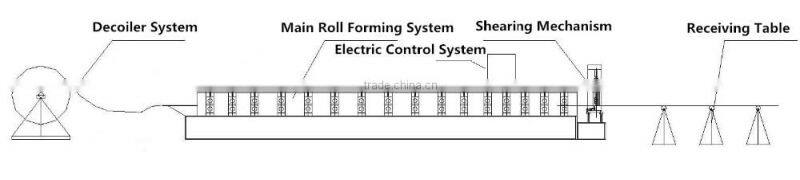

Roof Roll Forming Machine Uncoiler System:
Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system
Loading capacity:3-5T
Uncoiling width:800-1500mm
Inner diameter: 450-550mm

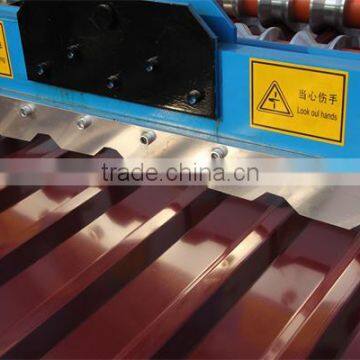

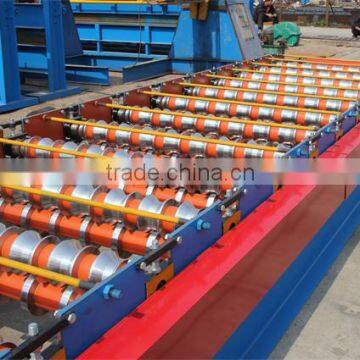

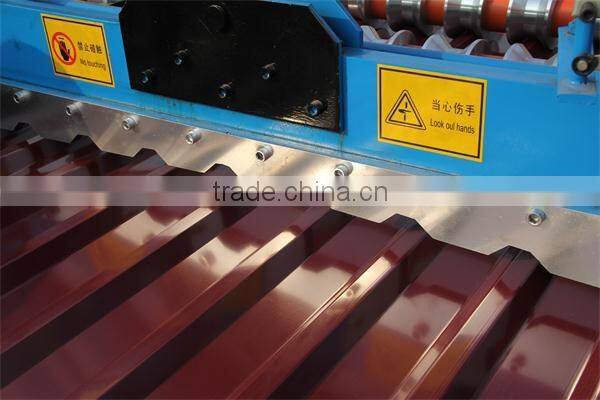

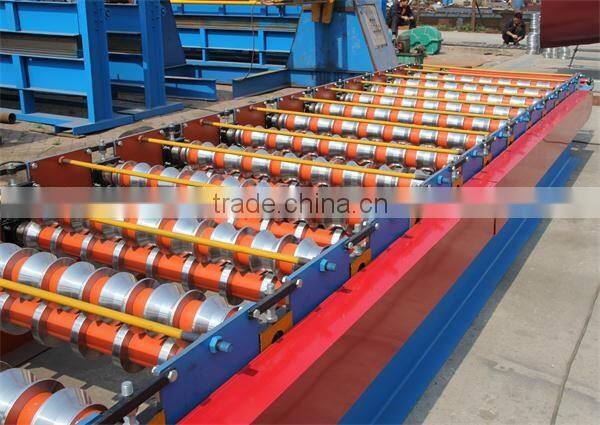

Roof Roll Forming Machine Main Roll Forming System:
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Length of the main part: About 6500*1500*1400
Weight of main part: 3-5 tons
Voltage : 380V/480V/50HZ/60HZ/3-Phase
Roller fixer : middle plate
Frame : 350 H steel welded
Drive mode: chain
Material of rollers:45# steel, surface hard chromium plating.
Material of shafts: 45# steel
Diameter of shafts: φ80-90mm
Number of rollers : 13-16 rollers
Main power:3.5-7.5kw

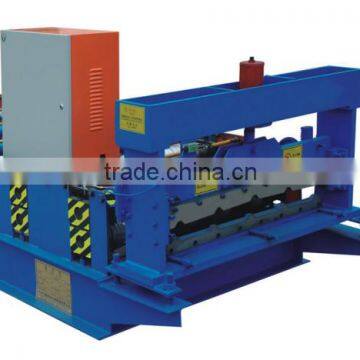

Roof Roll Forming Machine Shearing Mechanism:
Feature : Ensure stability, precision and cutting speed
Function : Automatic cutting controlled by PLC
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12 quenched
Power supply : hydraulic power
Components:It contains one set of blade, one hydraulic tank and one cutter machine.

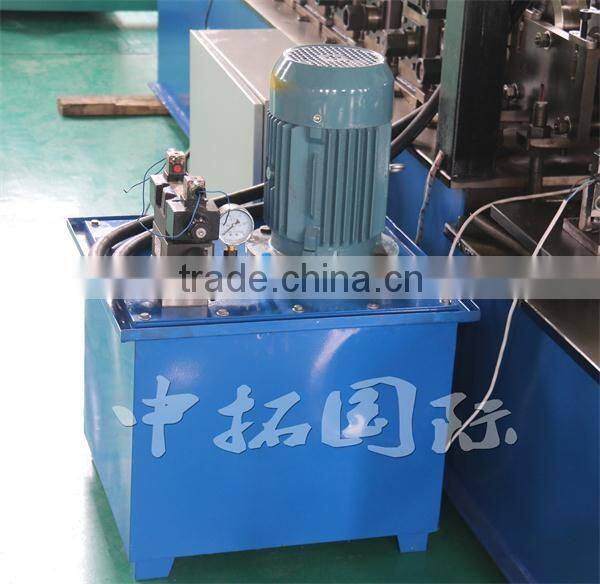

Roof Roll Forming Machine Hydraulic Station:
It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Power:3.5-5.5kw
Hydraulic oil: 46#
Components: The system includes a set of hydraulic tank , a set of hydraulic oil pump, four hydraulic pipes.and two sets of electromagnetism valves.

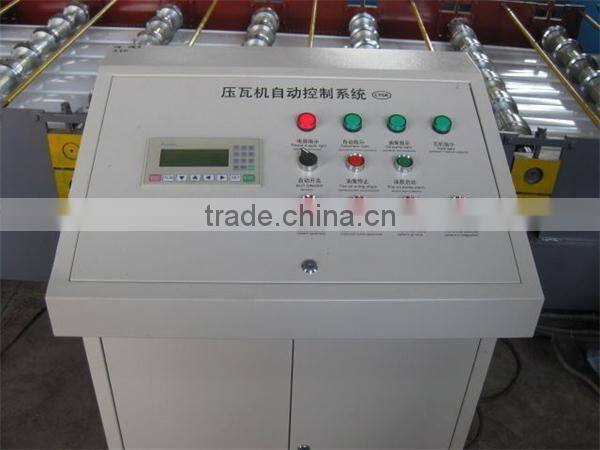

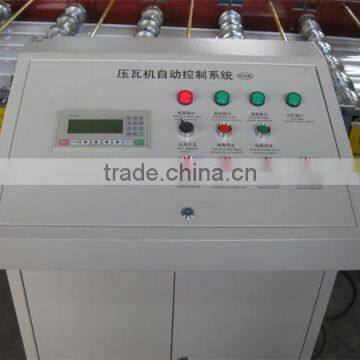

Roof Roll Forming Machine Electric Control System:
1.Adopted PLC , frequency converter , touch screen to ensure high speed with stability, precision and lifetime.
2.The brand of the electric elements are Panasonic.
Roof Roll Forming Machine Our Service:
a. If buyers visit our factory and check the machine, we will teach you how to install and use the roll forming machine for sale , and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and video to teach you to install and operate.
c. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
d. If there is any problem found of steel roof sheet roll forming machinery, we will repair roll forming machine for sale for free in one year.
Roof Roll Forming Machine Company Information:
Cangzhou Zhongtuo International Trade Co., Ltd is a professional manufacturer located in northwest of CangZhou, as a long history of cold roll formingmachine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.
