Korea metal roof panel forming machine
1. Profile |
1. feeding width 12200mm 2. effective width 1080mm 3. material thickness 0.4-0.6mm
|
2. Process flow |
Decoiling--feeding---forming---measuring---cutting---production |
3. Decoiler |
5 tons manual decoiler
|

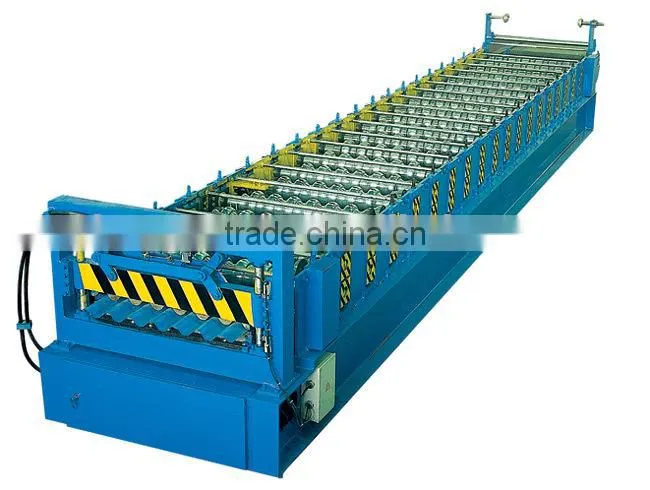

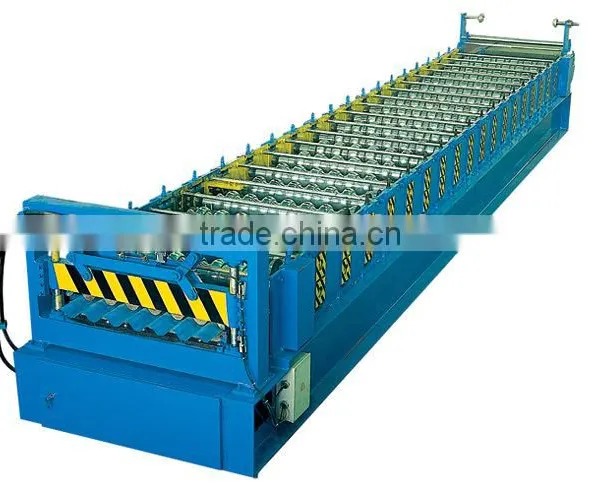

4.Forming device |
1. Shaft material 45# steel; outer diameter 80mm; 2. Rollers material: 45# steel, with chromium coated 0.05mm thickness, 15 forming steps; 3. Transport: by chains and gears 4. Forming speed: 8m/min 5. Motor: 5.5kw 6. Dimension: 8x1.65x1.5mm 7. Weight: 5T
|
5. Cutting device |
1. Blade Material: Cr12 steel with quenched treated 60-62°C 2. Cutting system: stop then cut, full automatic 3. Picture as attached below |

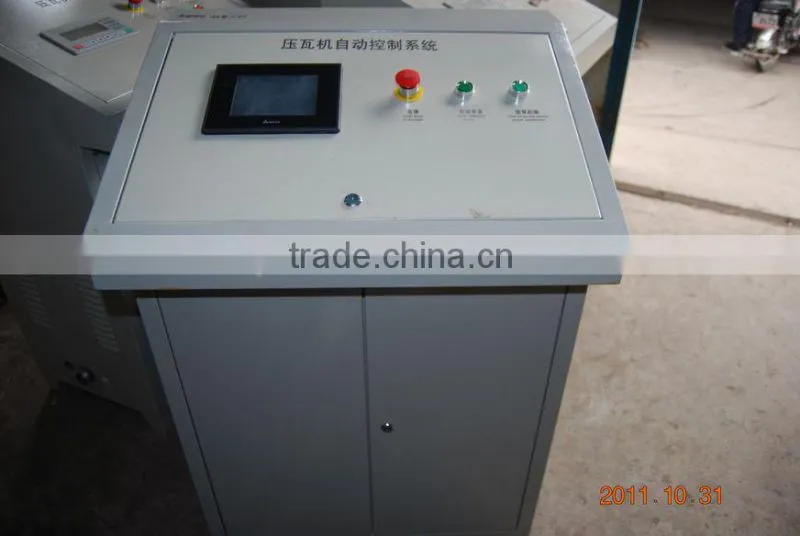

6.Controlling device |
1. screen: text screen displayer 2. PLC: Delta from Taiwan |

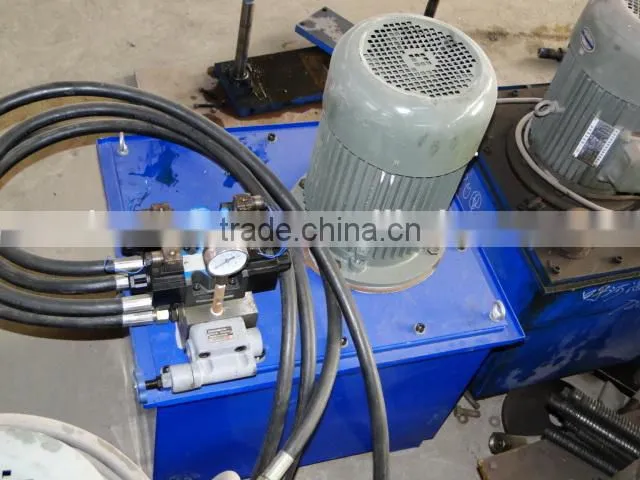

7. Hydraulic |
1. Advanced hydraulic system 2. Power: 3kw
|

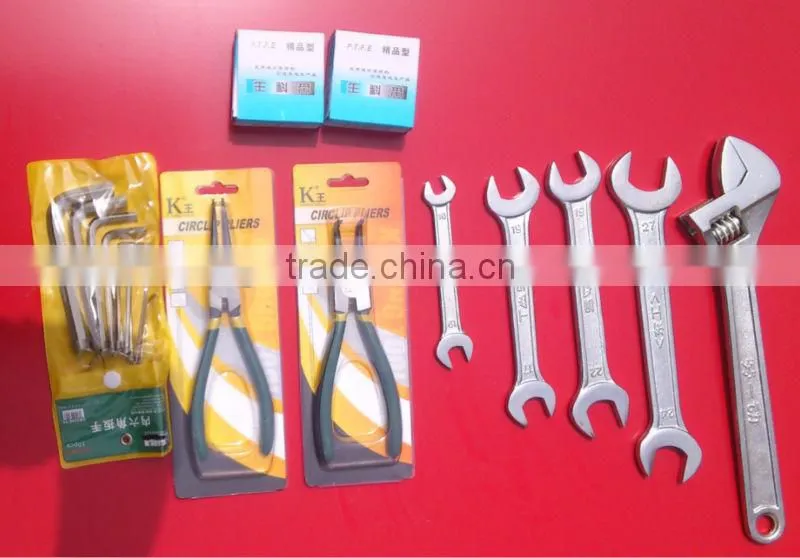

8. Spare parts |
1. easy damaged parts: conk 2 pcs, fuse-link 4 pcs 2. rubber mat 1 pcs; 3. bolt spanner 1 pcs |
Warranty: 1 year and life-long maintainance
*Installation and debugging: We will send professional engineer to make installation and debugging, Buyer pay our engineer each one 50 USD/day, and provide accommodation, food and the round-trip ticket fee.
* Installation Days: about 5-7 days
