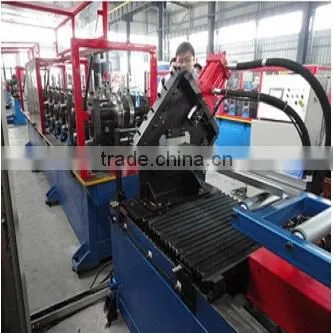

door jamb roll forming machine
Door jamb roll forming machine can rollform different types of metal doors or window frames, punching can also be based on your needs and design. After the roll forming machine roll forming, the surface will be very smooth, no beautiful surface scratches. This roll forming equipment consisited german winder, feed and leveling equipment, hole punch and stamping dies, mainly bending machine, cutting machine, run the table, and we can do a custom roll forming machine, and we can design according to your specifications and dimensional drawings machines.
Main Parameters:
- Suitable Material
Type GI, PPGI
Thickness 0.60-1.20mm
- Machine Material
Active shaft No. 45 steel tempered Up to final design
Roller No. 45 steel chrome plated
Cutting Blade Cr12 quenched
- Power Requirement
Type 380V/3PH/50HZ or Customized
Main Motor 3kw
Hydraulic 2.2kw
- Speed
Forming Speed 20-25m/min, Excludes cutting & punching
- Decoiler
Max Capacity 2000kgs
Suitable OD 1200mm
Suitable ID 450/550mm
Max Width 300mm
- Forming Stand
About 14 group Up to profile
- Transmission
Chain, sprocket Double-row entire chain
- Type of Cutting
length-set cutting, Hydraulic cutter
- Control System
Mitsubishi PLC& transducer
Composition of door jamb roll forming machine :

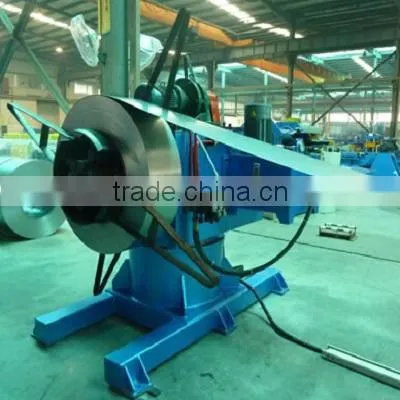

1. De-coiler
2. Feeding and Leveler
- Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.

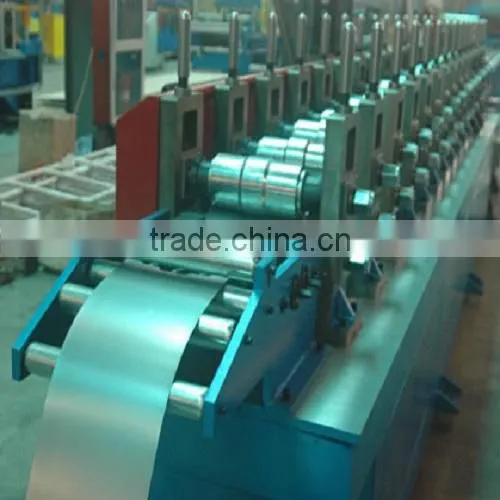

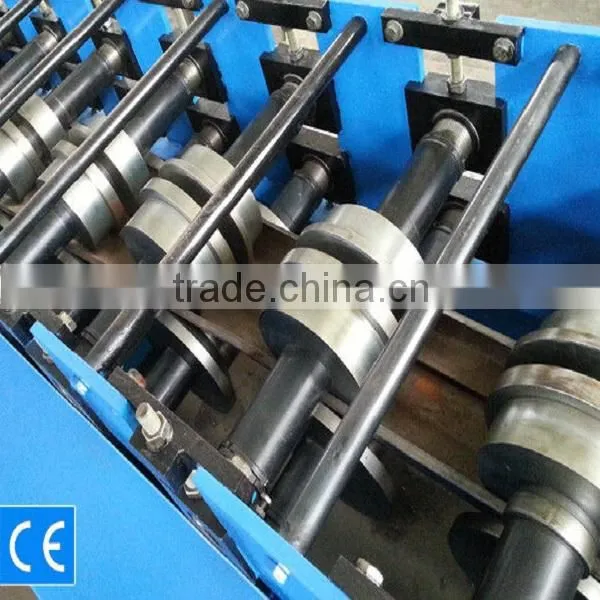

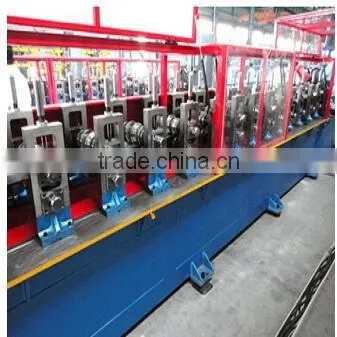

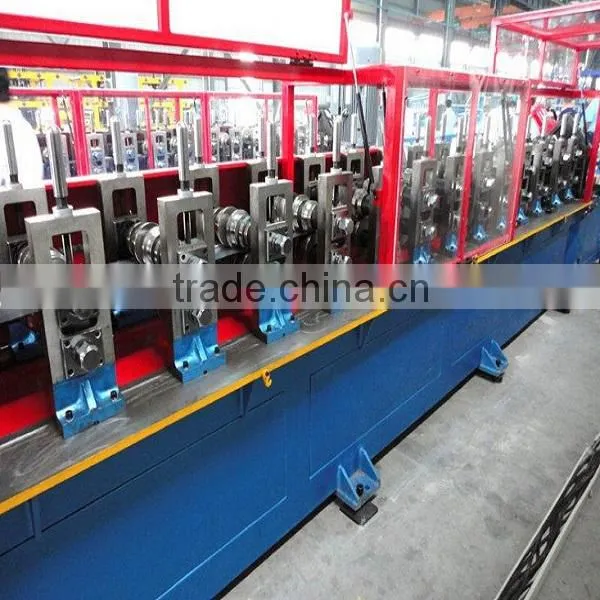

3. Roll Forming

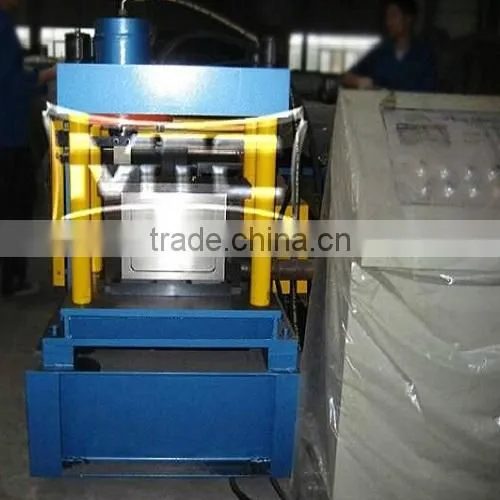

4.Cutting Part
- Material of blades : Gcr12MoV quenched
Sample of door jamb :
Cangzhou ZHONGTUO International Trade Co., Ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and concerning with the design, development and production of cold roll forming machines,material of building. It is located in northwest of CangZhou, as a long history of cold rollforming machine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.
1.You are trade company or factory?
- We are trade company but we also have own factories. Building trade company is just for
exporting various types of cold roll forming machines.
2. Why your price is higher than others?
- As we persist on that each factory should put quality at the first place. We spend time
and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.
3. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can pick up you.
4.How to get a quotation?
a.Give me the profile drawing and thickness,this is the important.
b.Other spicific requirements is welcome,such as the speed,power and voltage you want.
