drywall system stud track forming machine
Light gauge steel framing machine offers the best automatic channel for wall building material types available on the market today. Our light-weight yet durable design was built with high quality alloys and true stainless steel. Our Engineers have plenty of industry experience and understand what contractors need as we have the machine producer since 1996. Our machine is interchangeable with major manufacturers and is built with the best quality parts, say if you need to make drywall ceiling channel C or U, one drywall machine will be enough for you. Our parts can even be used to repair other brands!
Basic information of Drywall stud track roll forming machine | ||
Description |
Introduction |
Customer needs |
Working efficiency |
0-25m/min |
|
Thickness of Material |
0.6mm |
Adjustable |
Width of material |
130mm |
Adjustable |
Control system |
PLC |
Delta |
Uncoiler system |
1.5Ton |
|
Forming by rolling |
Roll 12 rows |
|
Roller material |
GCr12MoV(SKD11) Aluminium processing after quenchin HRC58-62 ℃, Chrome |
|
| ||
Shaft diameter of axle |
45#Aluminium-processing , diameter of axle=40mm |
|
|
|
|
Main part power |
5.5kw |
|
Hydraulic motor power |
3kw |
|
Hydraulic pressure |
12Mpa |
|
Scissor material |
Cr12Mov, herd steel HRC 58-62℃ |
|
length tolerance |
±1.5mm |
|
voltage |
380V, 50HZ,3 phase |
adjustable |
Frame form |
Grant type frame |
|
Driving Method |
Gear box |
|
Color |
Customize |
|
Size |
length*Width*Height 5.2*1.25*1.5m |
|
| ||
weight |
3.5T |
|
Package |
Nude package in 1*20GP container |
|
Delivery date |
30 working days |
|

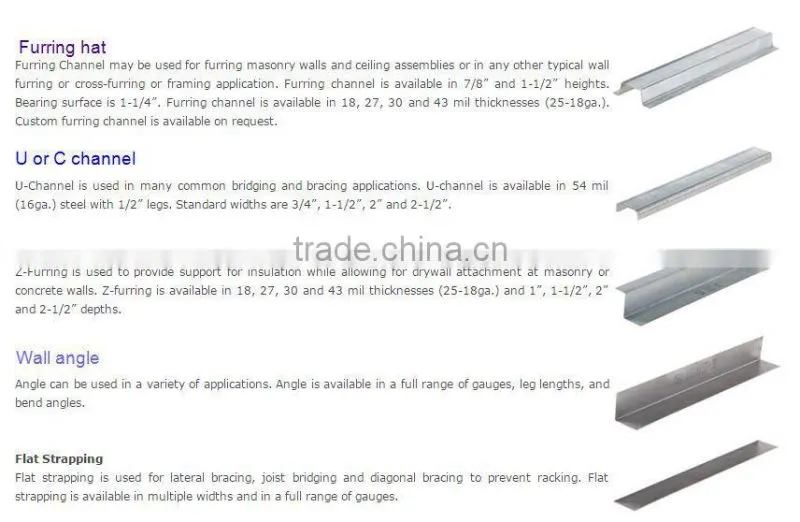

Here are some drywall stud track roll forming machine for your refernce:

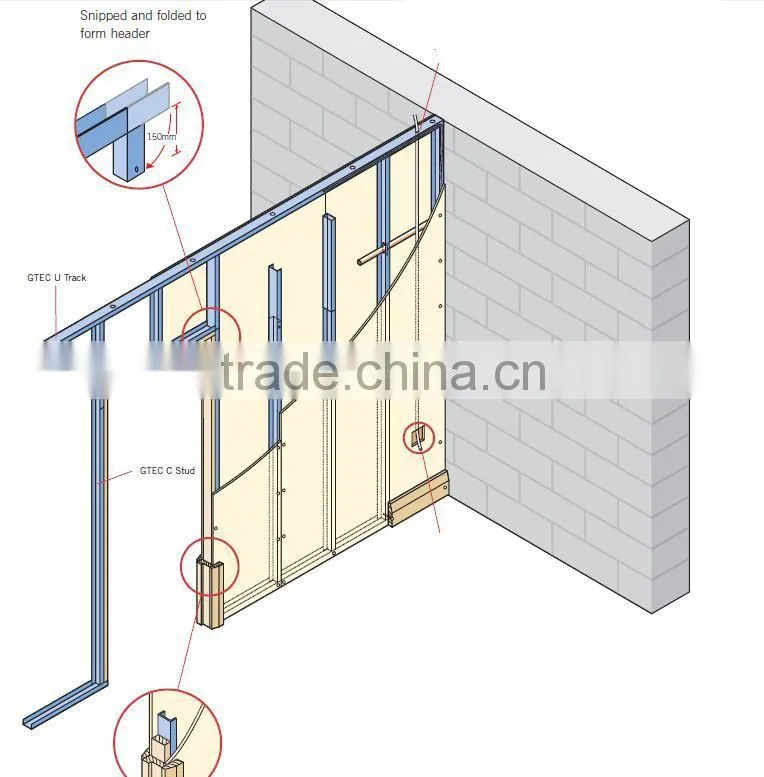

How to install:

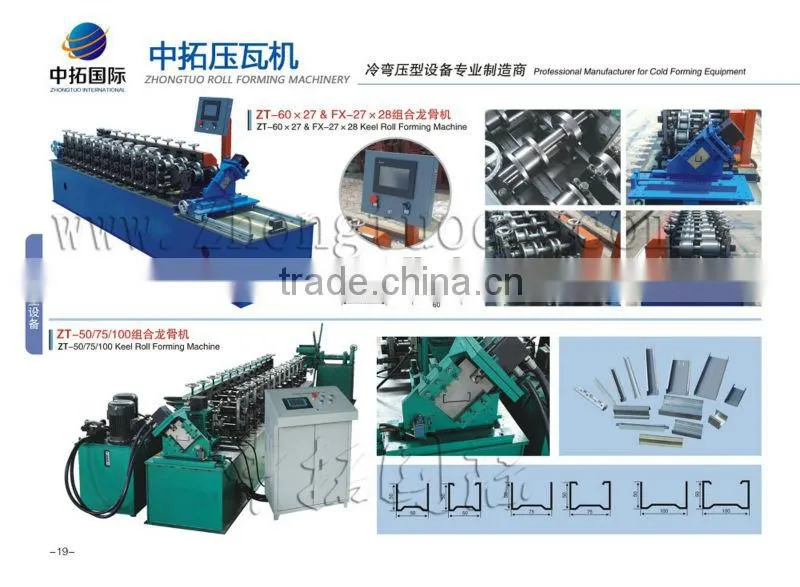

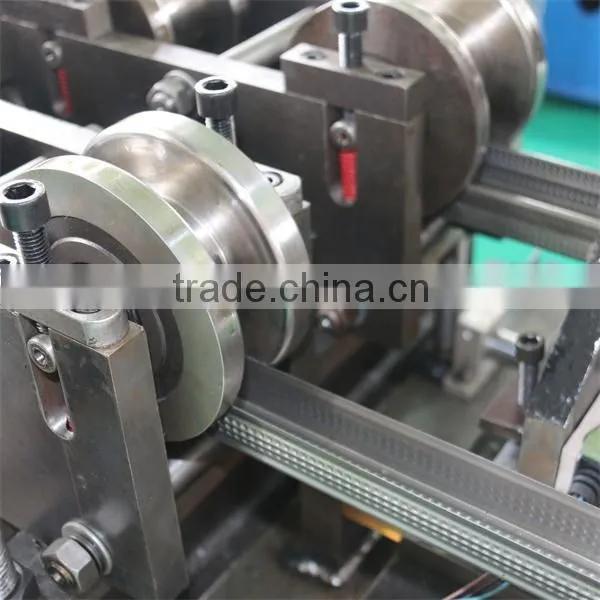

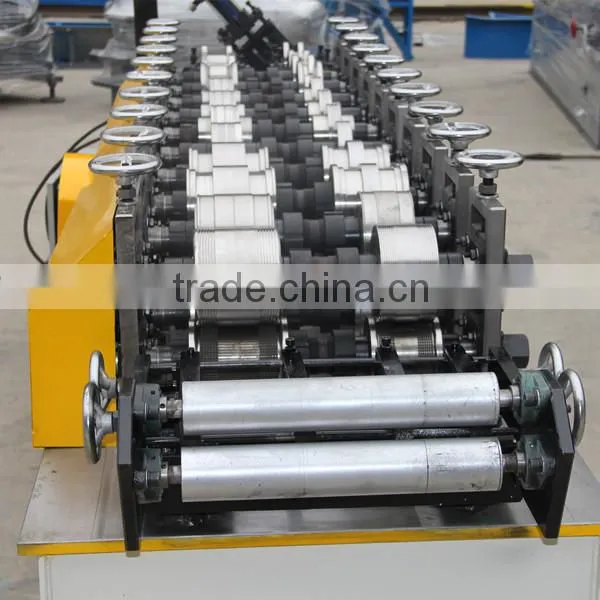

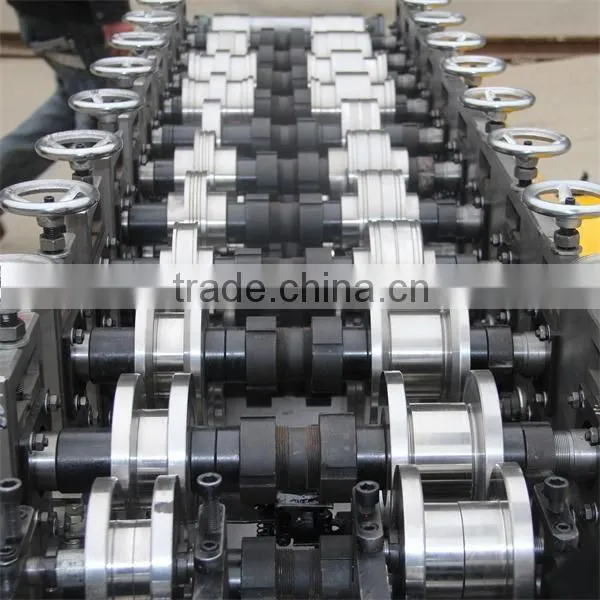

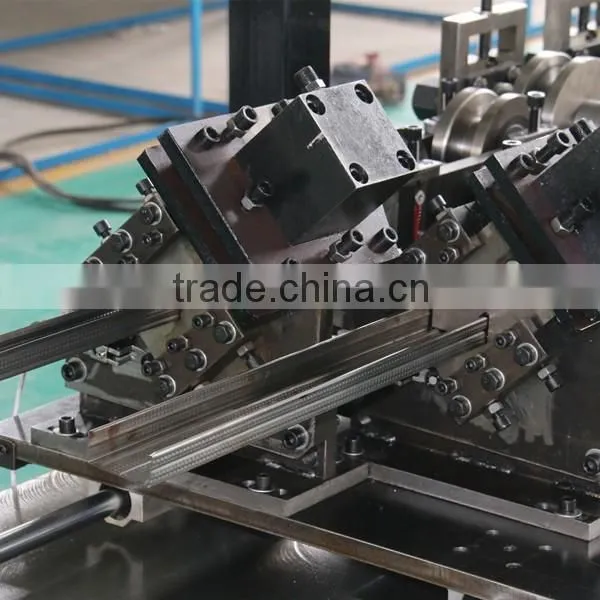

Some drywall stud track roll forming machine pictures for your refernence:
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
6. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.
7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.
8. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in
a hurry, we can make it for you less than a month.
