Home > Products > light steel Keel Roll Forming Machine > Corner Beads Commercial Beads Corner Protectors Decorative Beads roll forming machine Supplier's Choice
Corner Beads Commercial Beads Corner Protectors Decorative Beads roll forming machine Supplier's Choice
- 30 Set / Sets per Month
- Xingang Tianjin
- T/T L/C
Product Details
Condition: | New | Type: | Other, ceiling stud and drywall channel forming machine | Tile Type: | Colored Glaze Steel |
Use: | Wall | Production Capacity: | 10-20m/min | Place of Origin: | Beijing, China |
Brand Name: | Zhongtuo | Model Number: | inside corner bead | Power(W): | 4+4KW |
Voltage: | 380V | Dimension(L*W*H): | 6500*1300*1100 | Weight: | 4.5T |
Certification: | CE/ISO9001 | Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Corner Beads Commercial Beads Corner Protectors Decorative Beads roll forming machine
Trim-Tex vinyl corner beads are available in a range of sizes and shapes to accommodate any drywall corner you need to finish. Our patented technology creates lightweight, yet extremely durable, mold- and rust-proof corner beads. Easy to apply and also available in mud-set. There are standard corner beads and chamfer beads and bull nose beads and decorative corners and mud set beads. deflection beads and shadow beads and expansion beads and J L beads and tear away beads and acoustical ceiling beads and fast cap beads . bumper bead system and L angles and corner guards and so on. And crown moldings and EZ-Tray and decoration L beads so on.
The Corner Beads Commercial Beads Corner Protectors Decorative Beads roll forming machine is used to produce the L shape for the ceiling and the drywall steel structural. The delivery time of this 20*20 angel machine is about 35 working days. The price of this machine is about USD 8500-10,000 the ture price is according to the thickness of the L, and the size of the L machine. This 0*20 L angle ceiling/drywall roll froming machine is included the hydraulic decoiler, or the electric decoiler, the feeding system, the main roll froming machine system, ande the shearing and cutting system and the table receving system.
This corner bead inside corner bead corner bead for tile roll forming machine can be designed with the normal speed, 15-20 meters/min, it also can be designed as the high speed if the buyer need high capacity, the highest speed can be as 50-60 meters/min. with the reducer transmission and the servo motor. with the fly saw cutting system so that to keep its high speed.

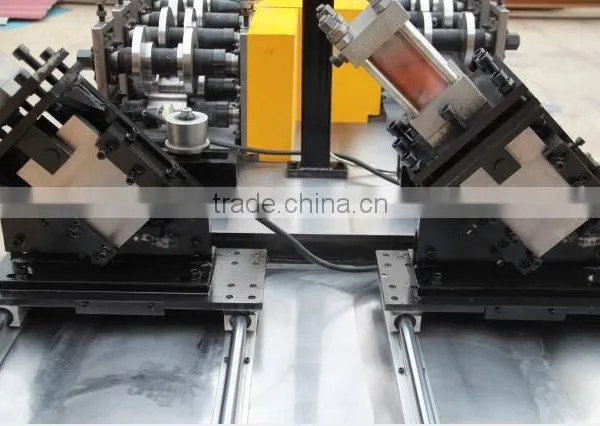

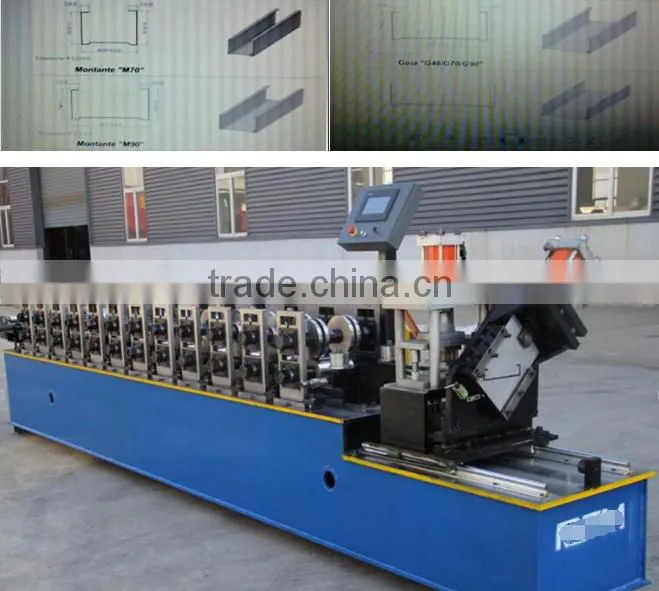

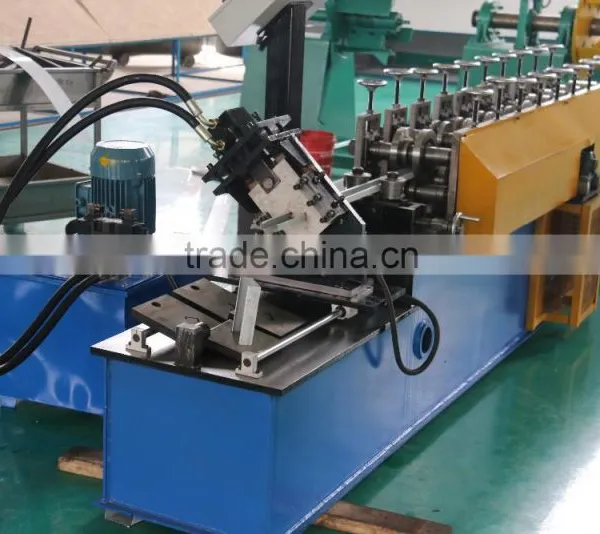

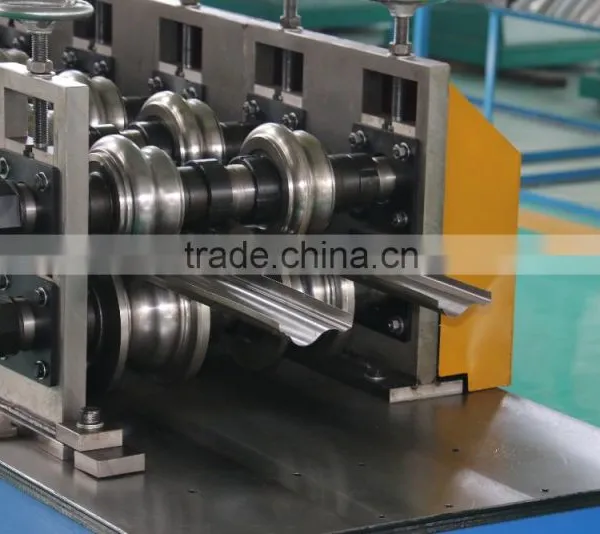

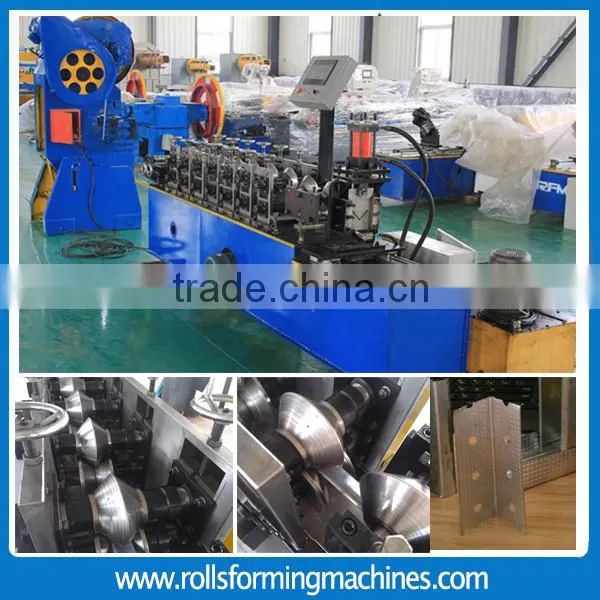

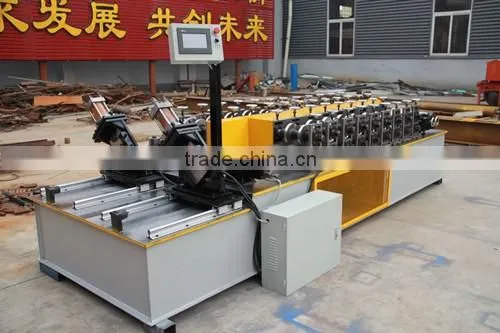

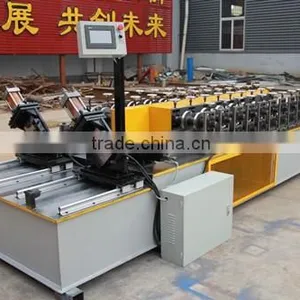

1. pictures for your reference corner bead inside corner bead corner bead for tile roll forming machine
2. Corner bead inside corner bead corner bead for tile roll forming machine
Manual decoiler→→ Feeding material into machine →Roll forming machine →Punching →Measure length →Hydraulic cutting →Finished Products
3. Corner bead inside corner bead corner bead for tile roll forming machine

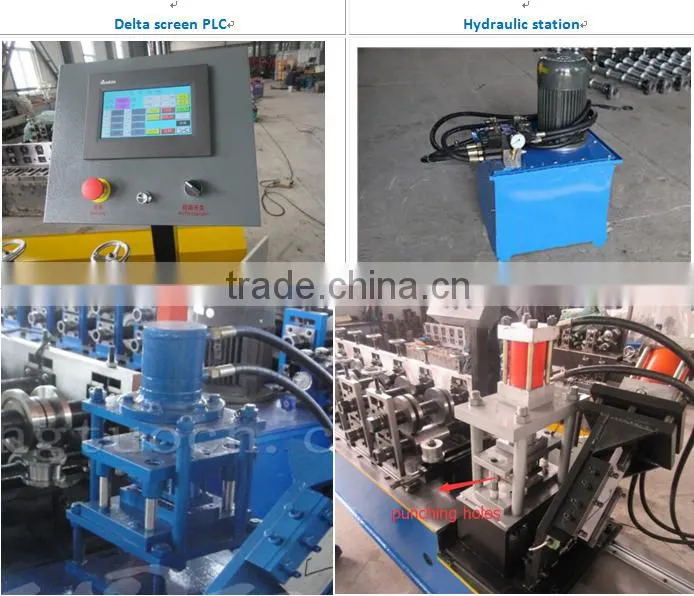

configurations | manual decoiler, guiding platform,main machine of roll forming, cutting device, electric motor,hydraulic station,Delta PLC control system, run out table | ||
Material | Raw material | Galvanized | |
Thickness | 0.3-0.8mm | ||

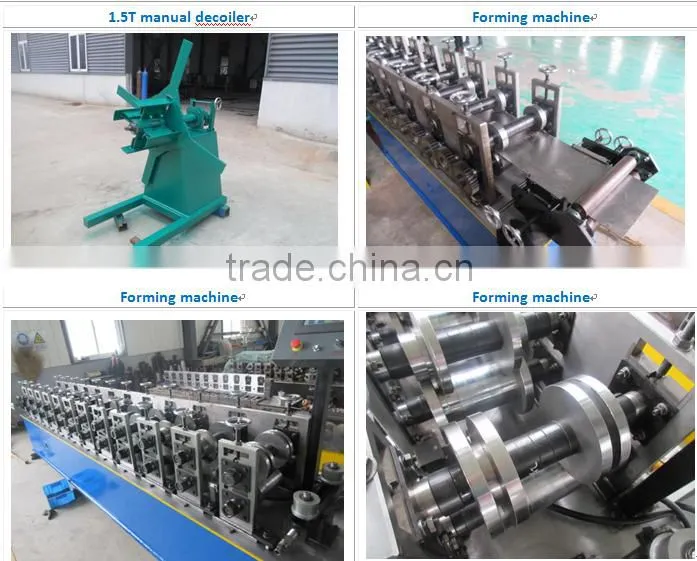

Manual decoiler | Inner Diameter:450-550mm | Expand by manual | |
Outer Diameter: max 1500mm | |||
Max Coil width:300mm | |||
Capacity: 1.5T | |||
Main Forming machine | Forming steps | 8 rollers | |
Shaft diameter | 40mm | ||
Design type | Memorial arch | ||
roller material | GCr12MoV steel | ||
shaft material | 45# steel | ||
Work speed | 0-25m/min | ||
Transport | By gear | ||
Power of main machine | 3kw | ||
Type of cutting | Hydraulic | ||
Cutting tolerance | ±1mm | ||
Cutter | Gcr12 | ||
Cutter quantity | 1 set | ||
Working pressure | 20MPA | ||
Punching machine | Holes punching machine | 1. Mould material: Gcr12 2. Power supper: Hydraulic Station | |
Hydraulic system | Hydraulic oil | 46# | |
Hydraulic power | 3kw | ||
Cutting length | As required | ||
No distorting or wasting. High level safety factor. | |||
Control Device | control | By PLC | |
PLC language | English and Chinese (or as required) | ||
Brand | Generally Delta, or as your requirement | ||
Function | Automatic length and quantity measurement | ||
Other Spare part | Weight | About 2.5 ton | |
Dimension | 3500*1000*1400mm L x W x H | ||
Main body color | As you need | ||
Voltage | 380v/50hz/3ph(or as required) | ||
Spare cutting blade | One piece for profile | ||
Fuse | 2 pieces | ||
Relay | 2 pieces | ||
Travel switch | 2 pieces | ||
Solenoid valve | 1 pieces | ||
Terms of payment | 1.Terms of payment: 30%T/T ,Balance to be paid before shipping after inspection. 2.Deliver time: 25-30 working days. | ||
Warranty and Training | 1. Warranty: Support the technology all the life. And the machine broken because of quality, we can change the broken part for free within one year.
2. Training: If you come to our factory,we can teach you for free. If you need technician go foreign, the buyer need pay the cost for visa, hotel, ticket, food and others, and buyer need pay the technician USD50/day for salary. There need one technician. Training time will be one week. | ||
4. Corner bead inside corner bead corner bead for tile roll forming machine
This corner bead inside corner bead corner bead for tile roll forming machine can also be designed with the logo punching system. If you need the logo puching on the L profile, you just need to send us your logo, we can design for you. when you need the logo punching, you please just turn on the logo punching system, if you do not need this logo punching system, you just need to turn off the logu punching system.
It is very popular and easy to operate !
