Home > Products > Color Steel Roll Forming Machine > used metal roof panel roll forming machine
used metal roof panel roll forming machine
- 30 Set / Sets per Month
- Tianjin new port
- T/T
Product Details
Condition: | New | Type: | Tile Forming Machine | Tile Type: | Steel |
Use: | Roof | Production Capacity: | 10-12m/min | Place of Origin: | Hebei, China |
Brand Name: | Zhongtuo | Model Number: | roll forming machine | Power(W): | 5.5 kw |
Voltage: | 380V or as required | Dimension(L*W*H): | 8.5*1.65*1.5m | Weight: | 4.5T |
Certification: | ISO9001 and CE | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Used metal roof panel roll forming machine
1.Introduction ofused metal roof panel roll forming machine and finished production
Used metal roof panel roll forming machine is made by the uncoiling,feeding, leveling,roll forming,shearing. Appearance of product is smooth, beautiful, every sheet is uniform, high strength, durable, widely used in industrial and civil buildings, such as factories, warehouses, stadiums, exhibition halls, theaters and other room's surfaces and walls.
User parameters: thickness of raw materials, coil width, coverage width or effective width, wave length and wave height and so on.(if need quotation, if you can send me your drawings profile or the above the sizes)
Flow chart : Decoiler--Entry beach--- Roll Forming --Cutting —Output Table
No. | Name | Unit | Qty |
1 | Decoiler | set | 1 |
2 | Main Machine for roll forming | set | 1 |
3 | Control System(PLC) | set | 1 |
4 | Hydraulic pump | set | 1 |
5 | Post cut | set | 1 |
6 | Output Table | set | 1 |
Description | Introduction |
Working efficiency | 8-12m/min |
Thickness of Material | 0.3--0.8mm (can be changed according to customers need) |
Width of material | 914mm;940mm;1000mm;1200mm;1220mm;1250mm According to customers request |
Control system | PLC(Delta or Panasonic) |
Uncoiler system | Manual decoiler (or as your requirement) |
Forming by rolling | 13 rows (According to the machine design) |
Material of roller | GCR12 quenching HRC58-62°C,Plating Cr, Cr thickness: 0.05-0.06mm |
Shaft and the diameter of axle | GCR12 hardening and tempering HRC40-45°C, |
Main part power | 5.5kw |
Hydraulic motor power | 4kw |
Hydraulic pressure | 10--12Mpa |
Material of cutter | Cr12Mov, herd steel HRC 58-62°C |
length tolerance | ±1.5mm |
voltage | 380V, 50HZ,3 phase (adjustable by customer needs) |
Frame thickness | 16-18mm |
Driving Method | Chain |
Color | Yellow and blue(adjustable) |
Size | length*Width*Height - 8.2*1.65*1.5m |
weight | about 5.0T |
Package | Nude package in 1*20GP container |
Delivery date | 30 working days |
Payment Method | 30% T/T in advance and balance 70% after inspection confirmation before shipment.
|
If you have your own drawing, please send it to us, we can design the machine, depend on your drawing.
|

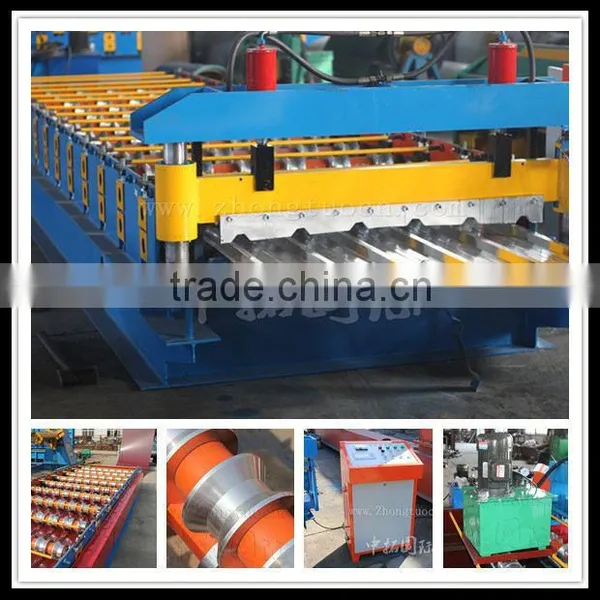

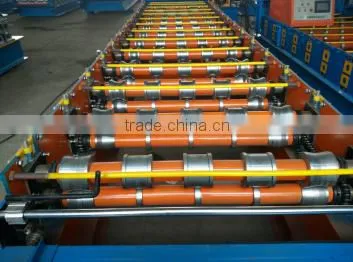

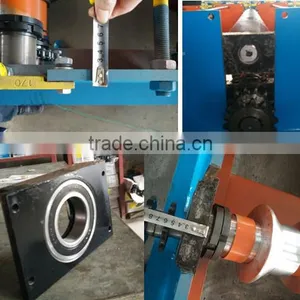

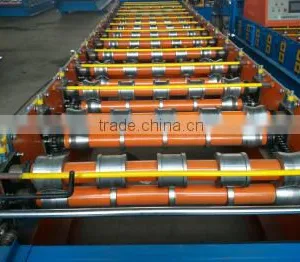

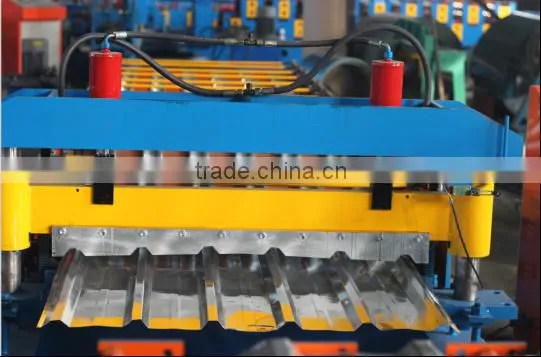

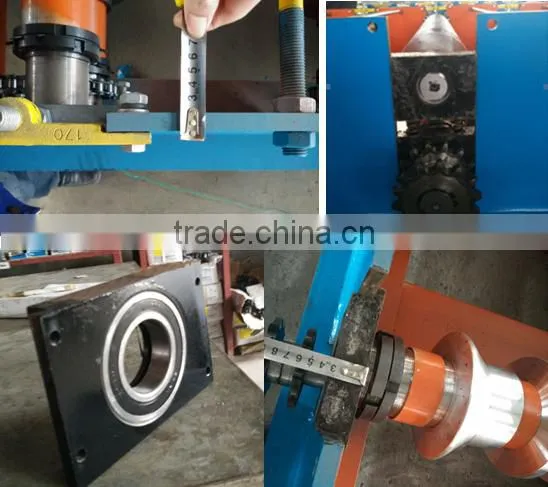

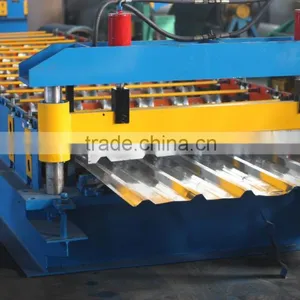

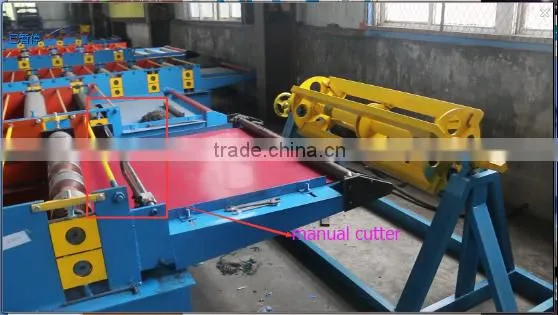

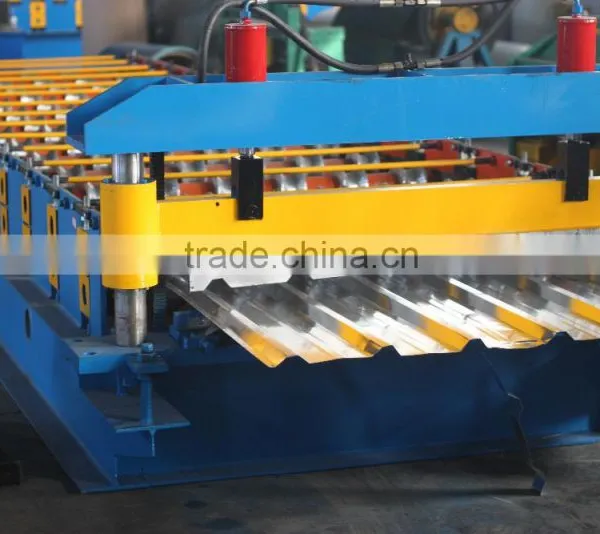

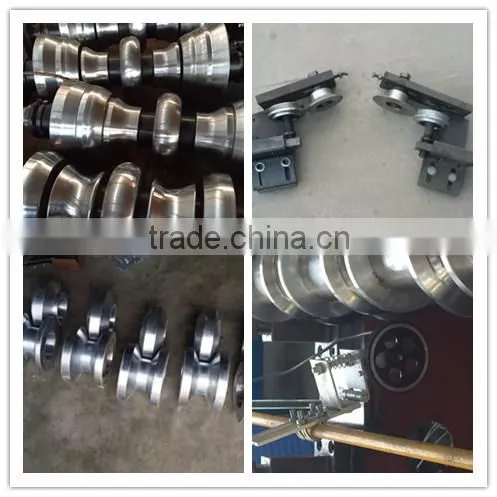

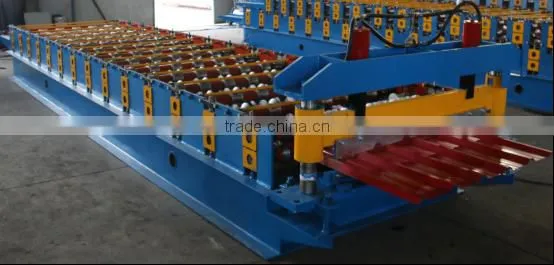

Pictures of machine for your reference:
Some common types for reference(can be design as customers required)
The finished roofing sheet can be used for
Packaging & Shipping
Contact Us
- Cangzhou Zhongtuo International Trade Co., Ltd.
- Contact nameRina Xing
- Phone0086-317-2191158
- Addressyunhe area taida international building Cangzhou,Hebei
