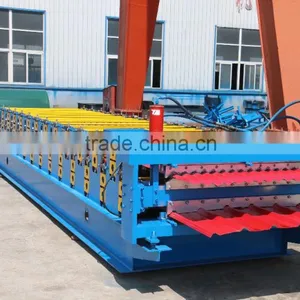

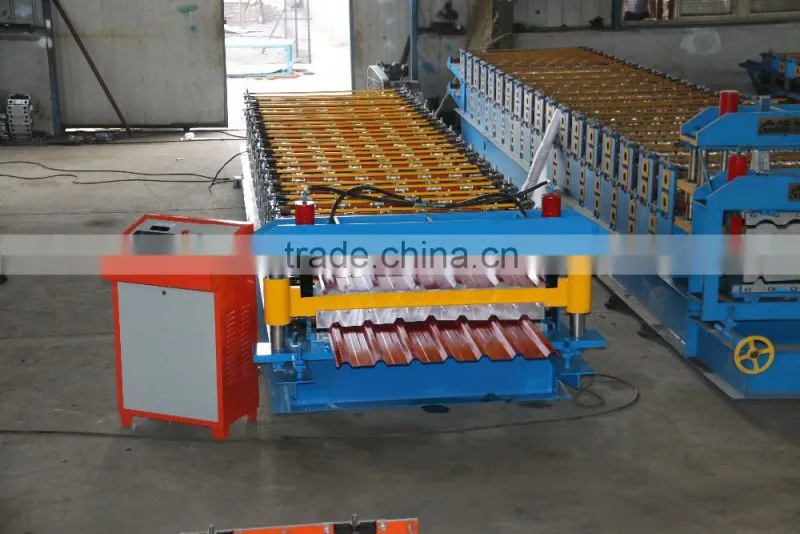

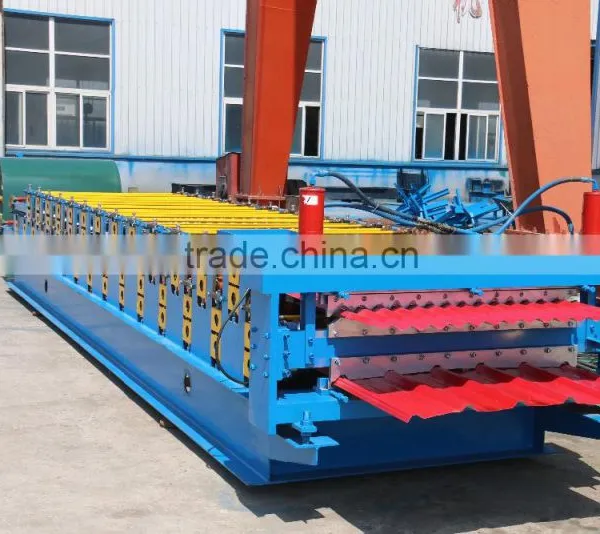

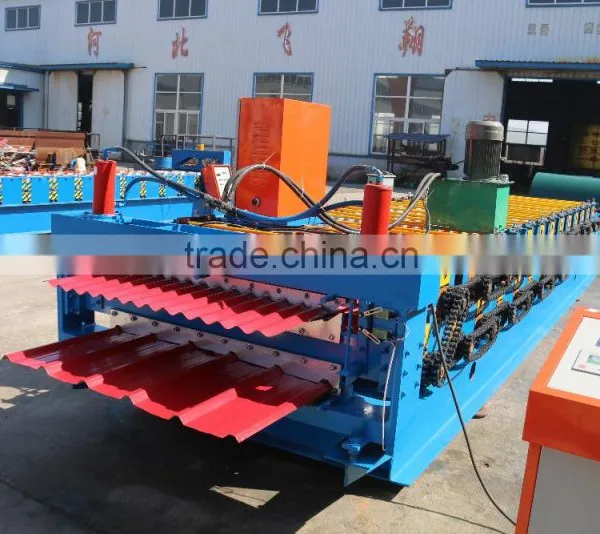

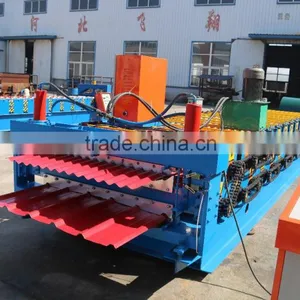

Double Layer for Corrugated and Trapezoidal Roof Tile Machine

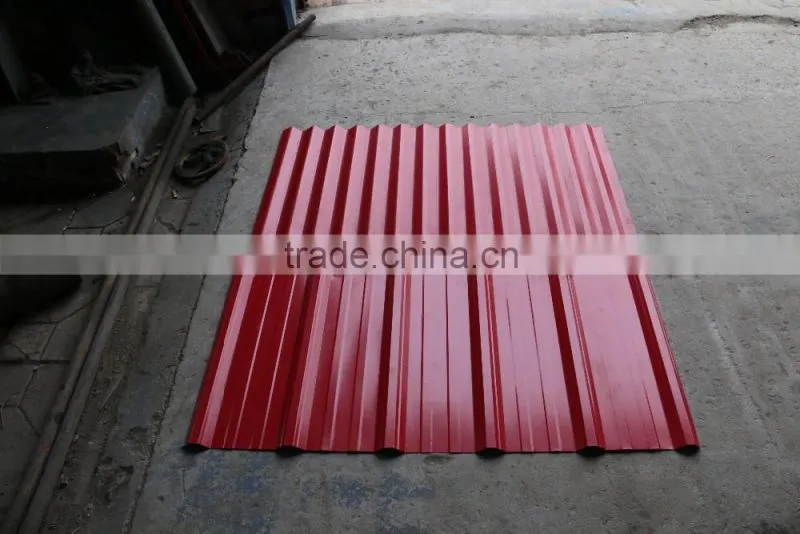

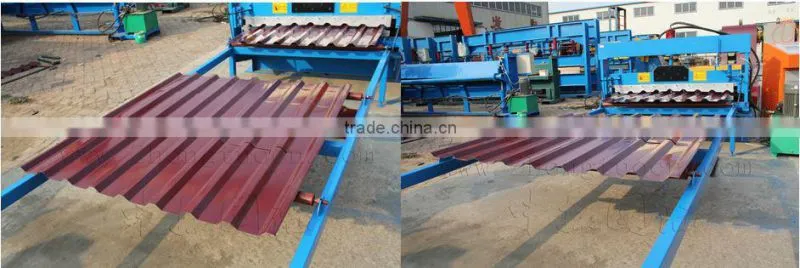

Finished product for your reference:
Materials:
Processing material: colored steel plate, galvanized plate, or aluminum plate
Material thickness: 0.3- 0.8 mm (or as your request)
Coil width:or as your request
Forming speed: 8-12 m/min or as your requests
Production process
Uncoiling→Feeding material into machine→Roll forming→Measuring length→
Auto cutting→Products receiving
Components of production line
No. |
Name |
Unit |
Qty |
1 |
Decoiler |
set |
1 |
2 |
Main forming machine |
set |
1 |
3 |
PLC control system |
set |
1 |
4 |
Hydraulic pump station |
set |
1 |
5 |
Post cut |
set |
1 |
6 |
Electric motor |
set |
1 |
7 |
Output table |
set |
1 |
Detailed introduction of every part for this production line

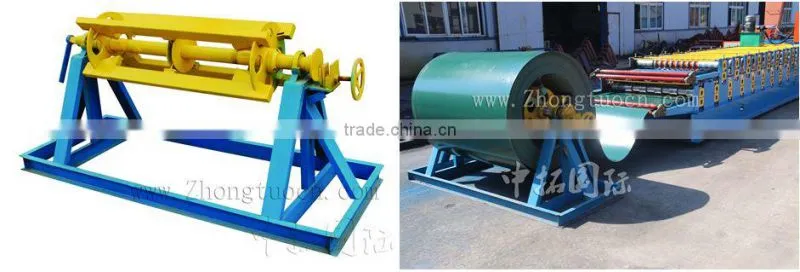

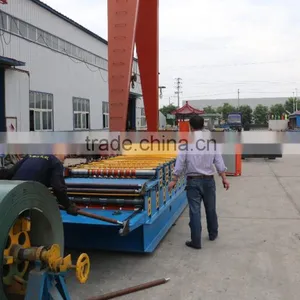

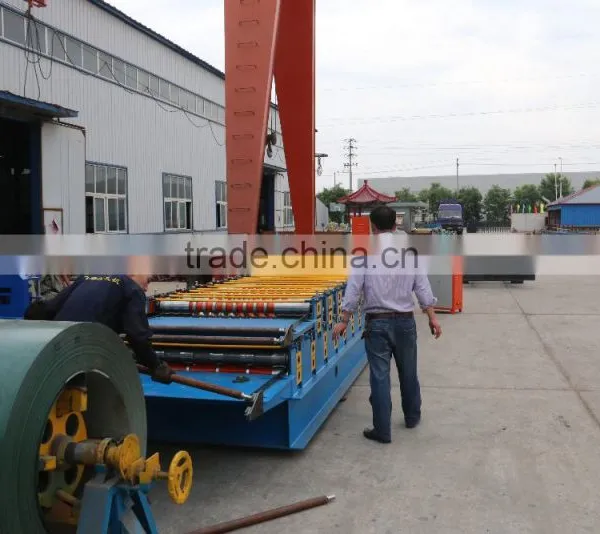

1.Un-coiler System
Usage: It is used to support the steel coil and uncoil it in a turntable way.
Passive uncoil pulled by roll forming system
Loading capacity |
Uncoiling width |
Inner diameter |
5T |
1200mm |
450-550mm |
2. Coil feeding part
Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat,parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.

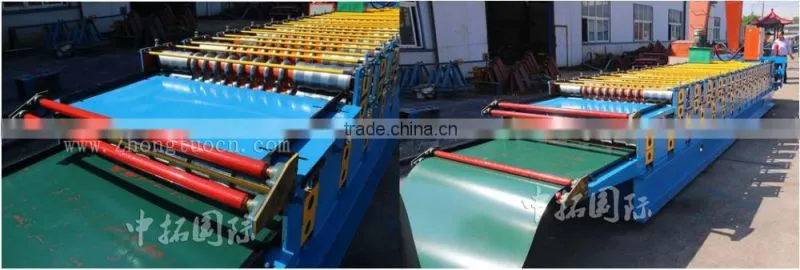

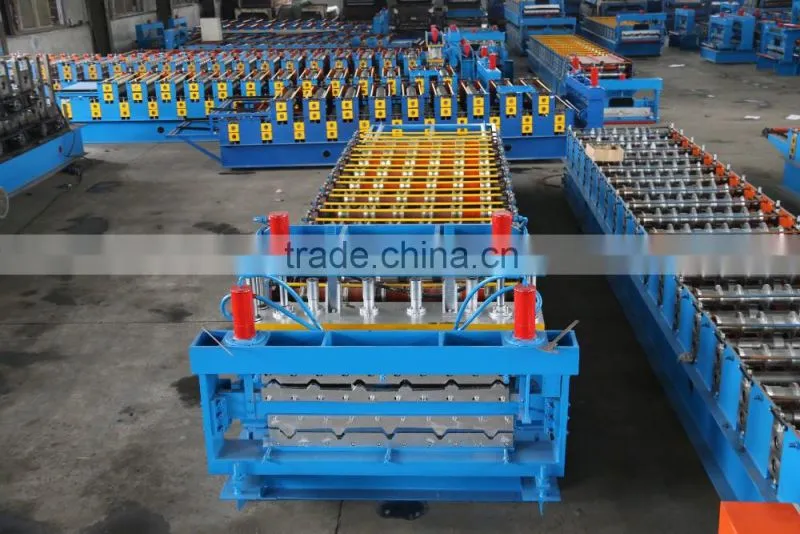

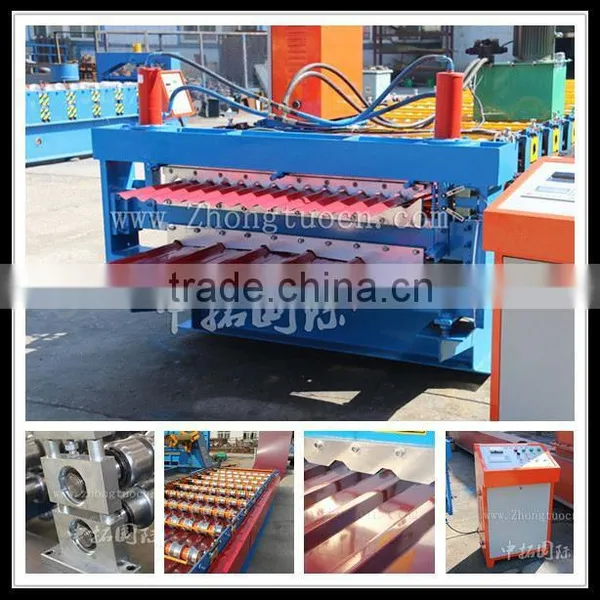

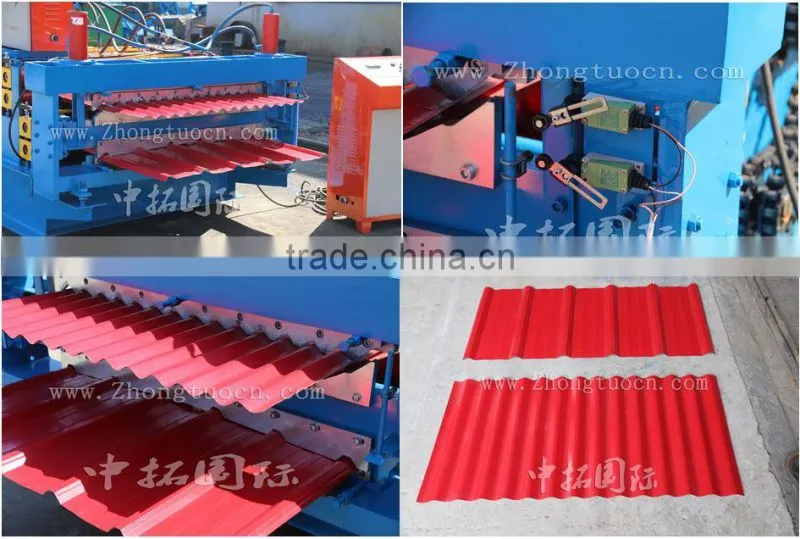

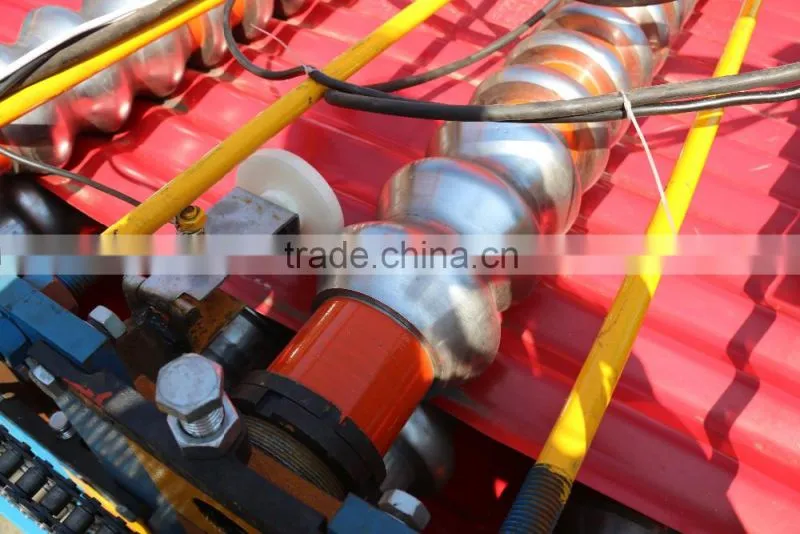

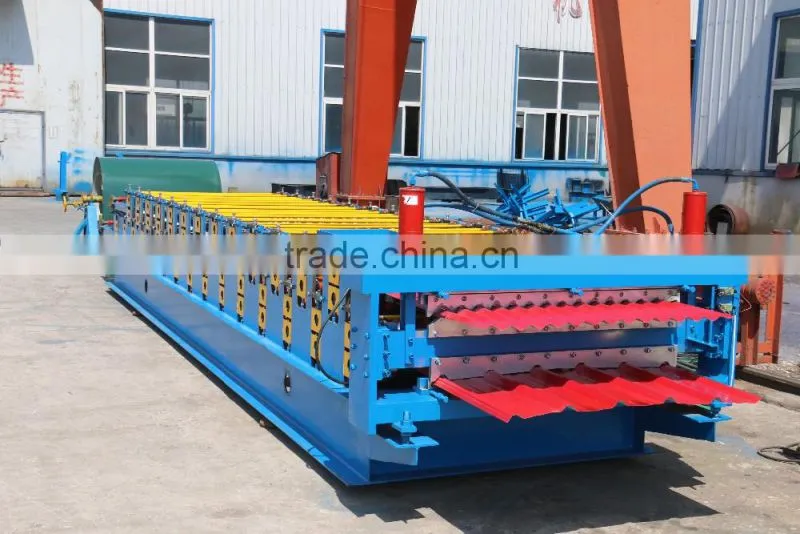

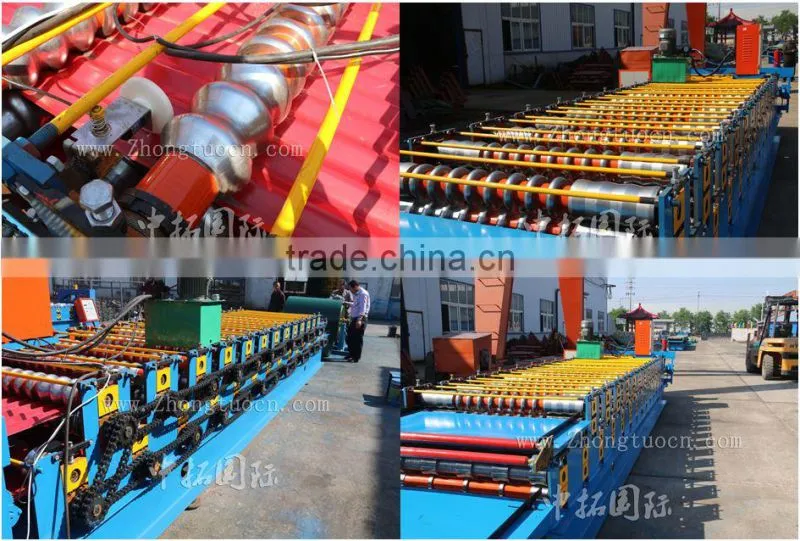

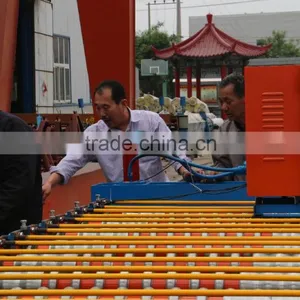

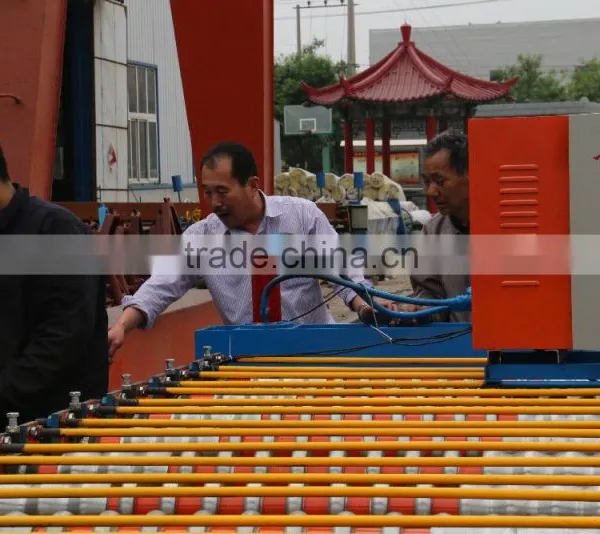

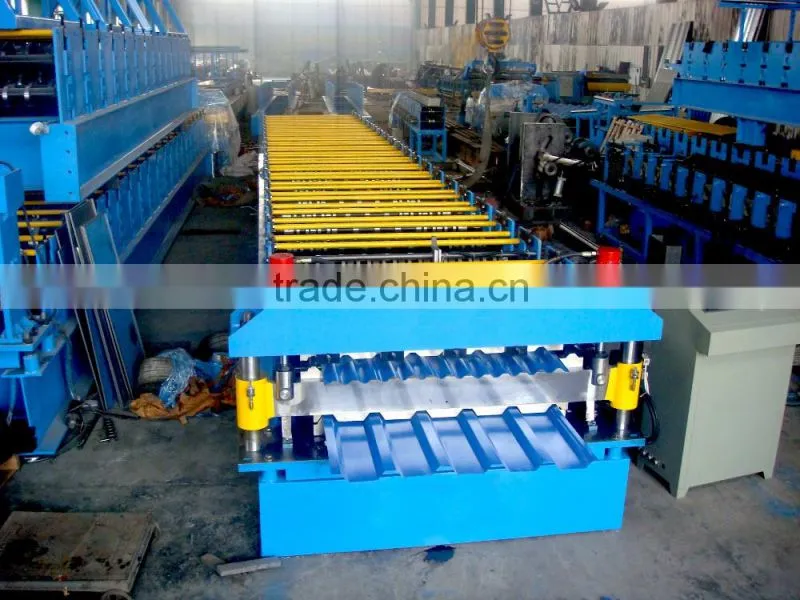

3. Main Roll Forming System
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive,chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working.
Feature : Ensure stability , precision and lifetime.
No. |
Main parameter |
|
1 |
Length of the main part |
About 8500*1650*1500mm |
2 |
Weight of main part |
About 6.5 t |
3 |
Voltage |
380V/50HZ3Phase (as customer`s request) |
4 |
Roller fixer |
Middle plate welded |
5 |
Frame |
350 H steel welded |
6 |
Frame thickness |
20mm |
7 |
Drive mode |
Chain |
8 |
Material of rollers |
45# steel, surface hard chromium plating. |
9 |
Material of shafts |
45# steel |
10 |
Diameter of shafts |
Φ80mm |
11 |
Number of rollers |
Up layer: 13 rollers Down layer: 15 rollers |
14 |
Main power |
5.5kw |
4. Cutting device
Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety factor.
(include cutting tools, hydraulic tank, cutter machine)
Blade Material |
Cutting system |
Cr12 quenched |
Full automatic |
5. Counter
One counter gauges length, pulses, and decides length. Omron encoder for length measurement.
6.Products receiving tables
1. It adopts welded steel and supported roller to transmit the products.
2. 3*0.9*0.6m
7. Controlling device
1) Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with
stability, precision and lifetime.
2) Other electric element are Delta
3) Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.
| Screen | PLC |
| Text screen displayer | Taida DVP14ES from Taiwan |

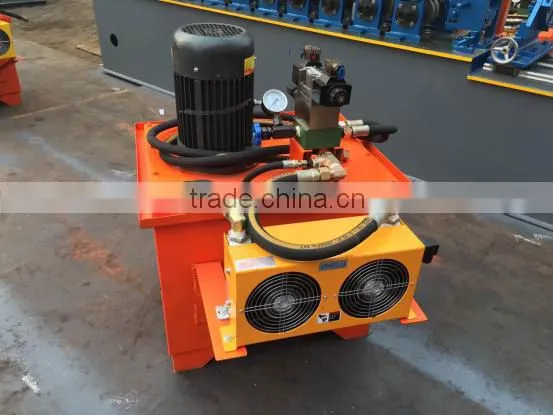

8. Hydraulic
(include a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves )
Origin |
Power |
Advanced hydraulic system from Taiwan |
3kw |
Spare parts ( for free)
1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;
2. Rubber mat 1 pcs;
3. Bolt spanner 1 pcs
Remarks
Payment terms |
30% T/T in advance and balance 70% after inspection confirmation before shipment. |
Delivery |
within 30 working days after receipt of deposit. |
Packing |
Nude packing with 1*40GPcontainer |
Warranty |
One year, and we will provide the technical support for the whole life. |
Installation |
1.Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary. 2. Need one technician 3. Training time: one week (contains the time of installation and adjustment) |
More details, feel free to contact me by Mobile: +8613785755431(what's app/viber)

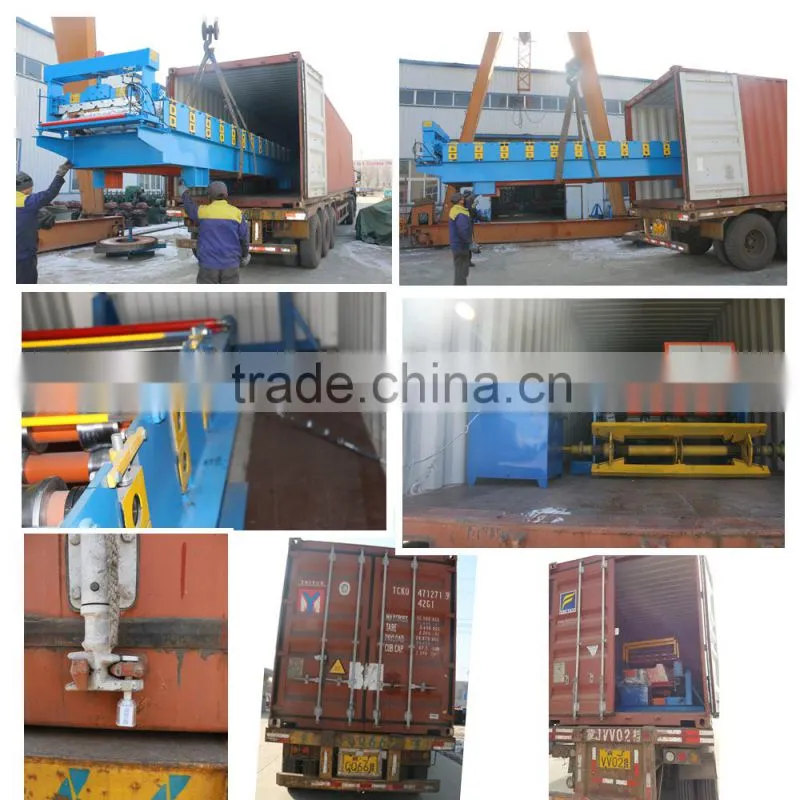

Packing
1. one 40ft container for loading one set machine with manual decoiler;
2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
Q: Are you manufacturer?
A: Yes, we are manufacturer and trading company.
Q: What kind of payment term you can do?
A: We are flexible about payment terms, please contact us for details.
Q: What info you need before you make the proposal for a roll forming machine?
A: The profile drawings, material informations, your special requirements.
Q: What I should do if I just start to know roll forming machinery?
A: Contact us immediately, we provide free consultant pre-sales service.
Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3. Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
