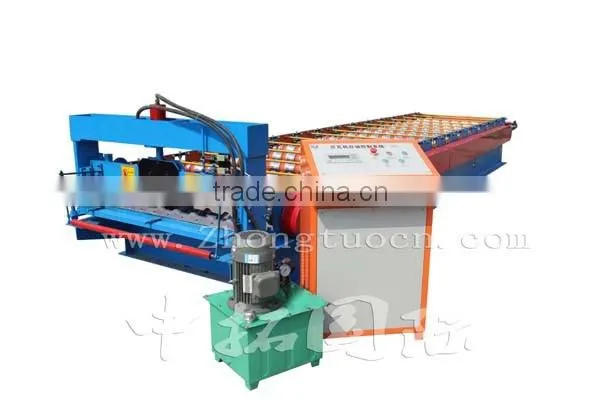

900 Tile Forming Machine, Steel Roofing Machine
900 Tile forming machine is widely using in all kinds of civil buildings, including stadium, garage, villa and so on.
Drawings of roofing tile:
Material using in 900 tile forming machine
Processing material: colored steel plate, galvanized plate.
Material thickness:0.3-0.8 mm
Material hardness: 195 mpa---350 mpa
Coverage width: 900 mm
Coil width: 1200 mm
Forming speed: 8-12 m/min

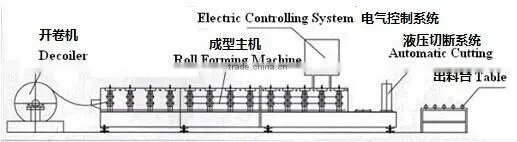

Working flow of 900 steel roofing machine:
Uncoiler system:
Usage: It is used to support the steel coil and uncoil it in a turntable way.
Loading capacity:15 T
Uncoiling width:1000 mm
Inner diameter: 450-550 mm.

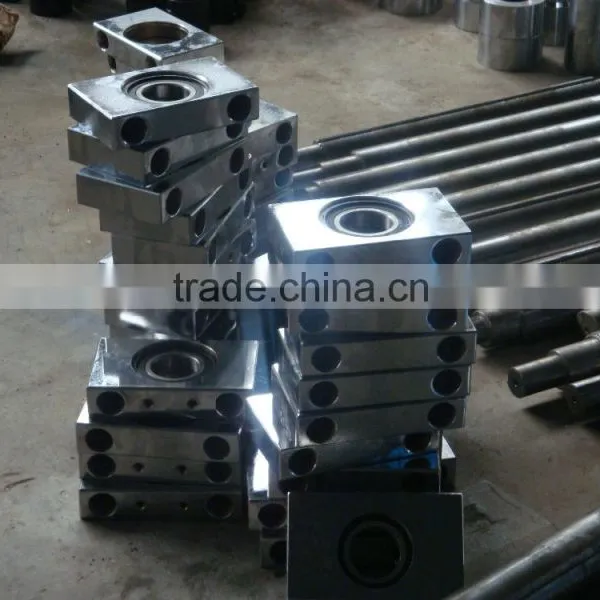

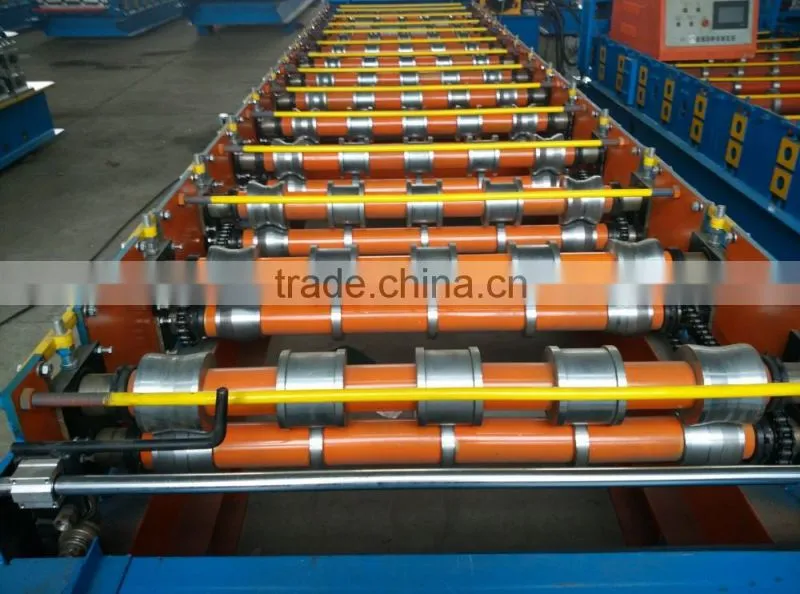

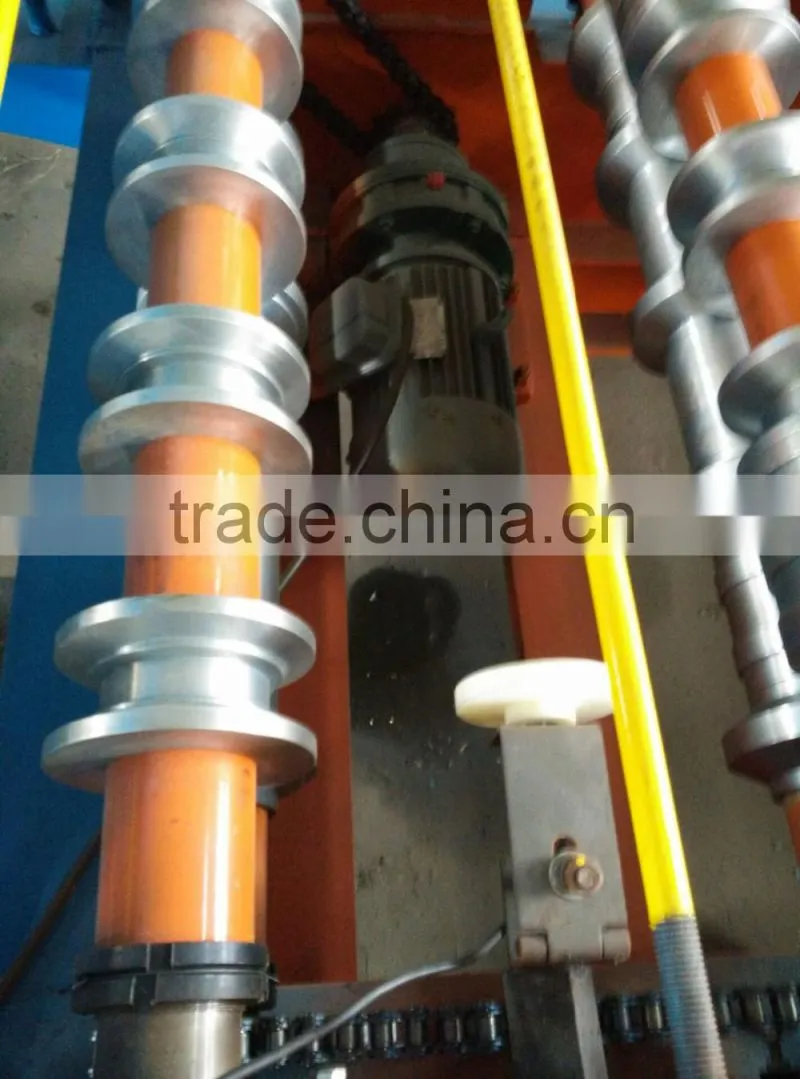

Main machine for roll forming:
Main specification of this parts:
Control System: PLC inverter
Main Frame: 350mm H-beam
Main Power:5.5kw
Hydraulic Power:4kw
Power Supply:380V, 3-Phase,50Hz
Forming Speed:8-12m/min
Roller Station:13 stands
Diameter of Shaft: 80mm, hardening and tempering HRC40-45 ℃
Frame Thickness:0.3--0.8mm
Material of Cutter: GCR12
Roller: 45# plating Cr , thickness of Cr 0.05-0.06mm, quenching HRC58-60 ℃
Total Weight:4.5T
Brand of Motor: mengniu

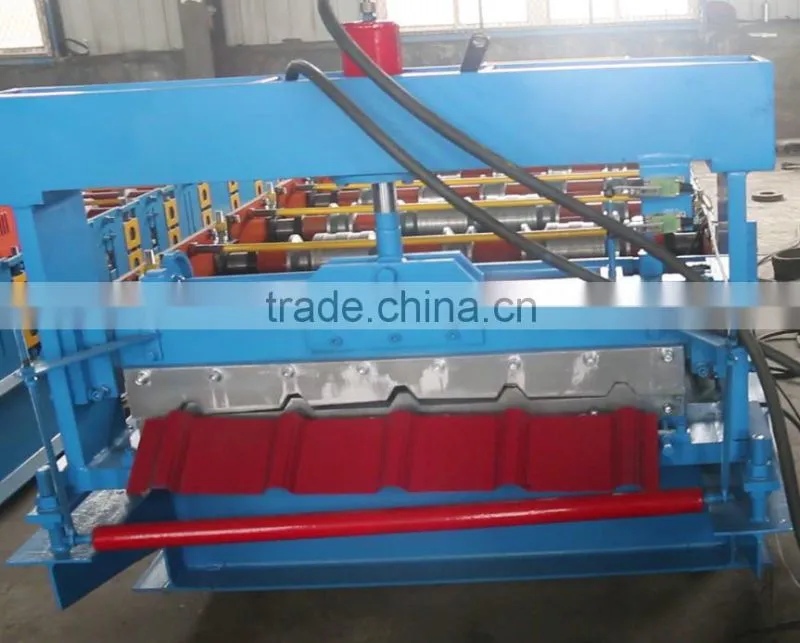

Cutting Machinism:
It adopts hydraulic drive and automatic location to decide the dimention and cut the target products.
Match equipment : one set of cutting tool, one hydraulic tank ,one cutter machine.
Stop to cut , Post cut cutting length tolerance: ±2mm
Cutting tool material: GCr12 with quenched treatment 58-62℃

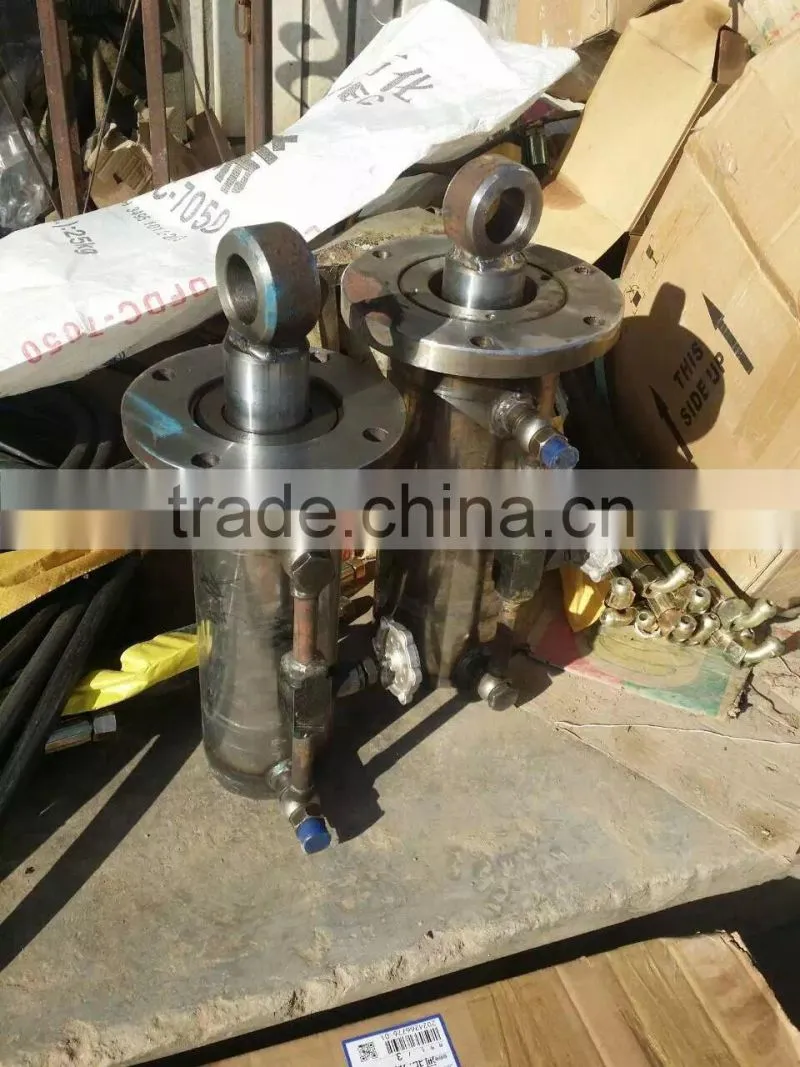

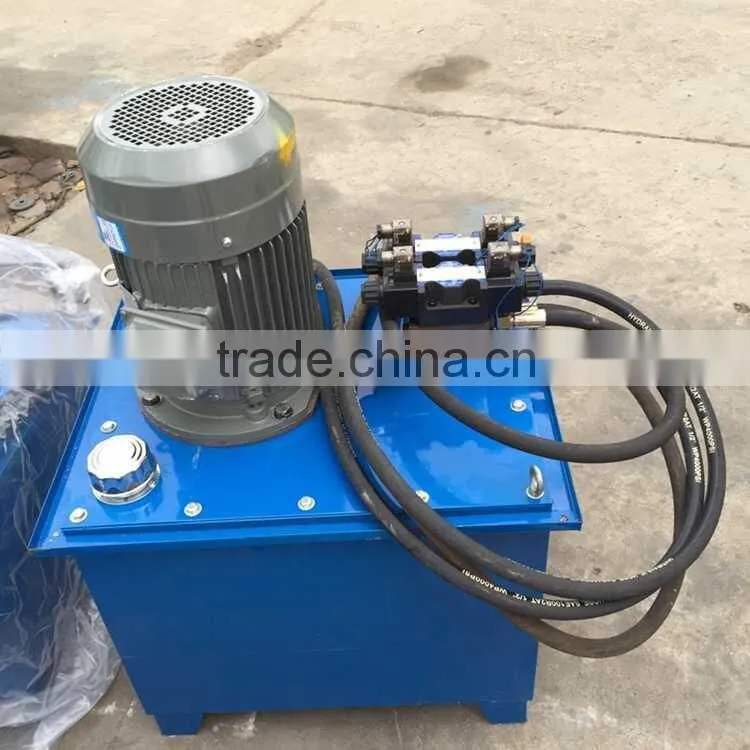

Hydraulic system
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job.
Match equipment: a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes and two sets of electromagnetism valves.
Power of the oil pump: 4kw Hydraulic oil: 46#

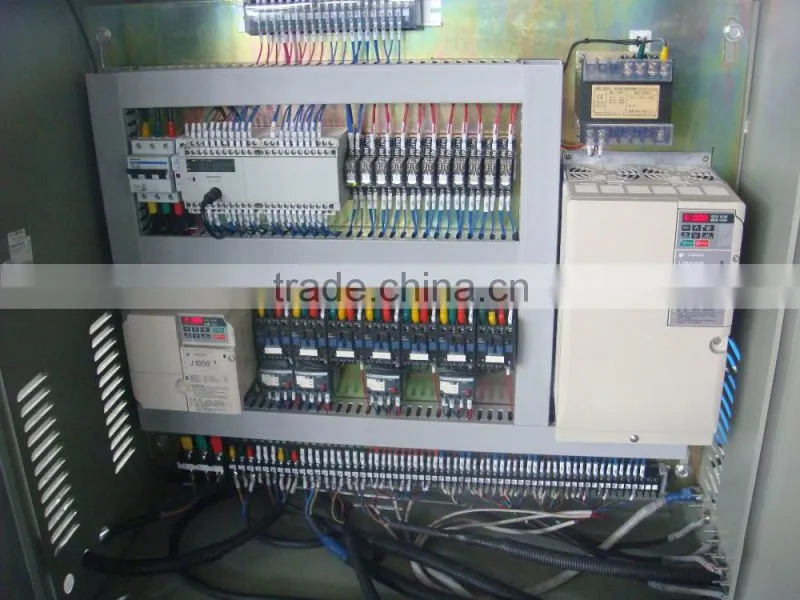

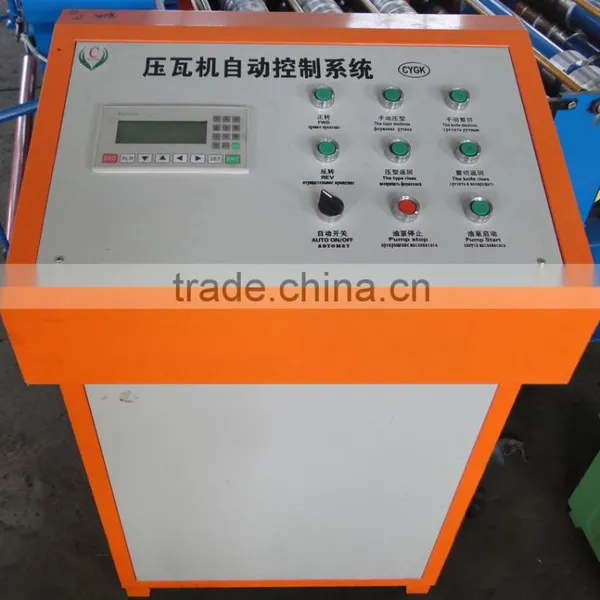

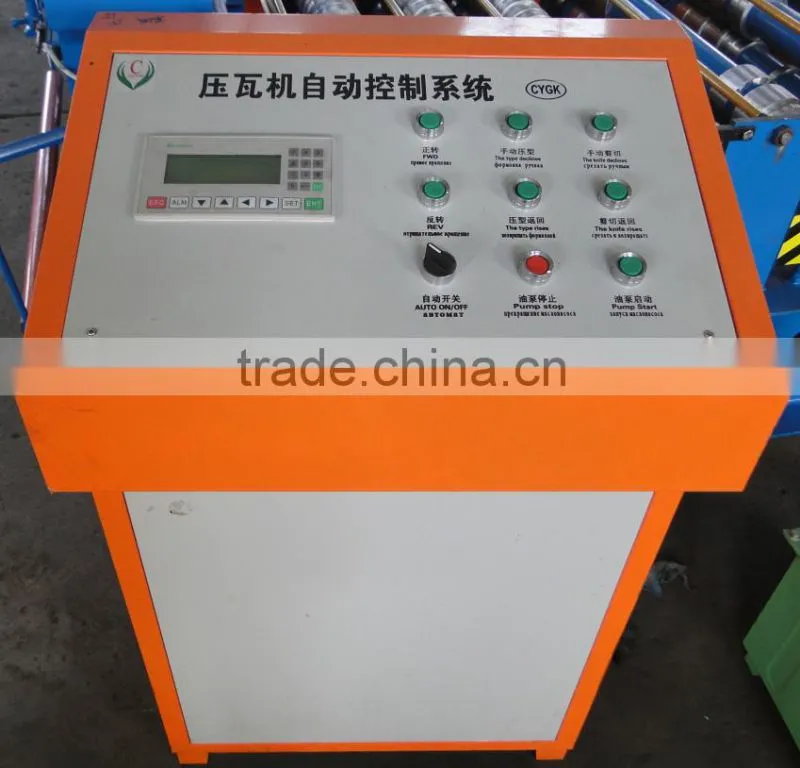

Computer control cabinet:
It adopts Delta PLC to control. The target piece length is adjustable and digit of it can be adjusted.
Computed mode has two modes: automatic and manual one.
The system is easy to operate and use.
Processing precision : within 1.00mm
It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.

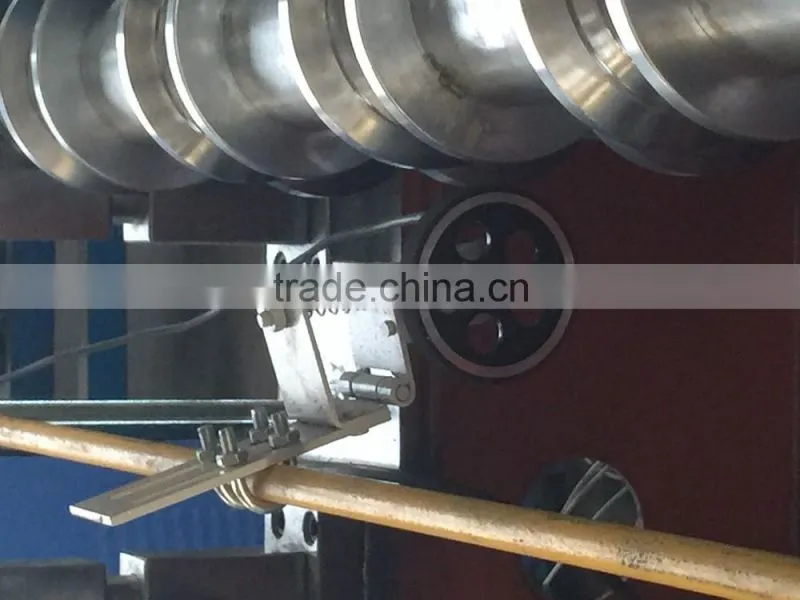

Counter:
One counter gauges length, pulses, and decides length
Runout table:
3 m/set with 2 sets
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.
Delivery: 30 working days after receipt of advance payment
Service: we sent technician to your country to fix the machine.
The buyer should bear all the cost including: visa, Roundtrip ticket and suitable accommodation, also buyer should pay the salary50USD/day.
Warranty: 12 months limited warranty
During warranty: parts are free but buyer pay for the shipping fee.
